Side Nozzles

Design:

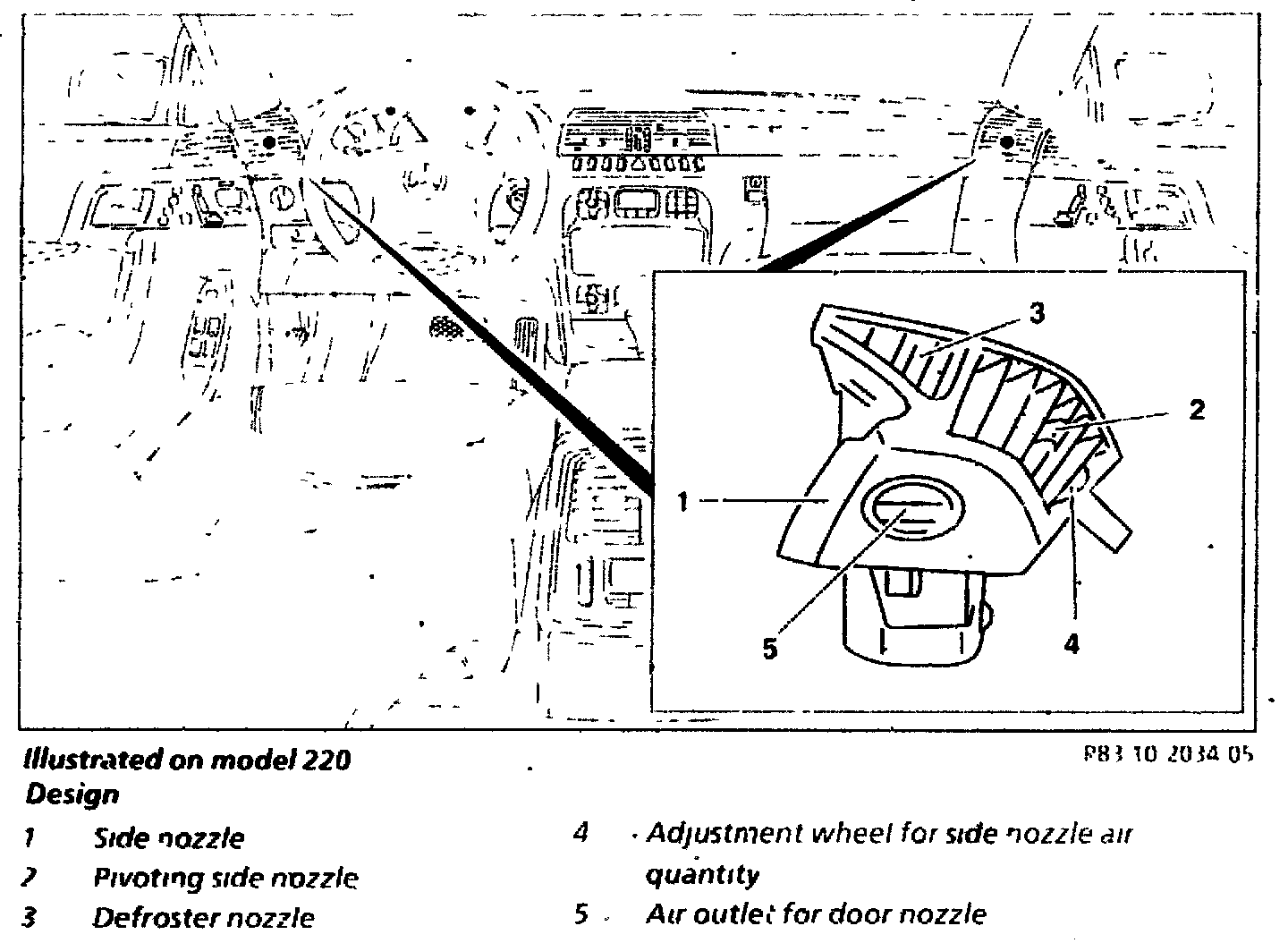

The left and right side nozzles (1) provide for specific guidance and distribution of the air along the side windows and at the sides of the vehicle passenger compartment.


Function
The direction of the air can be adjusted as desired upward, downward, to the left, right or to the middle with the adjustable louver (2) in the side nozzle.
To open turn adjustment wheel (4) toward outside:

- Side nozzle completely open
- Side nozzle and air outlet (5) for door nozzle open. Air exits from the door nozzle.

The side nozzle (1) is closed when the adjustment wheel (4) is turned completely to the inside.
