Door Vent

The left and right door vents provide for specific guidance and distribution of the air in the front side area of the vehicle passenger compartment.

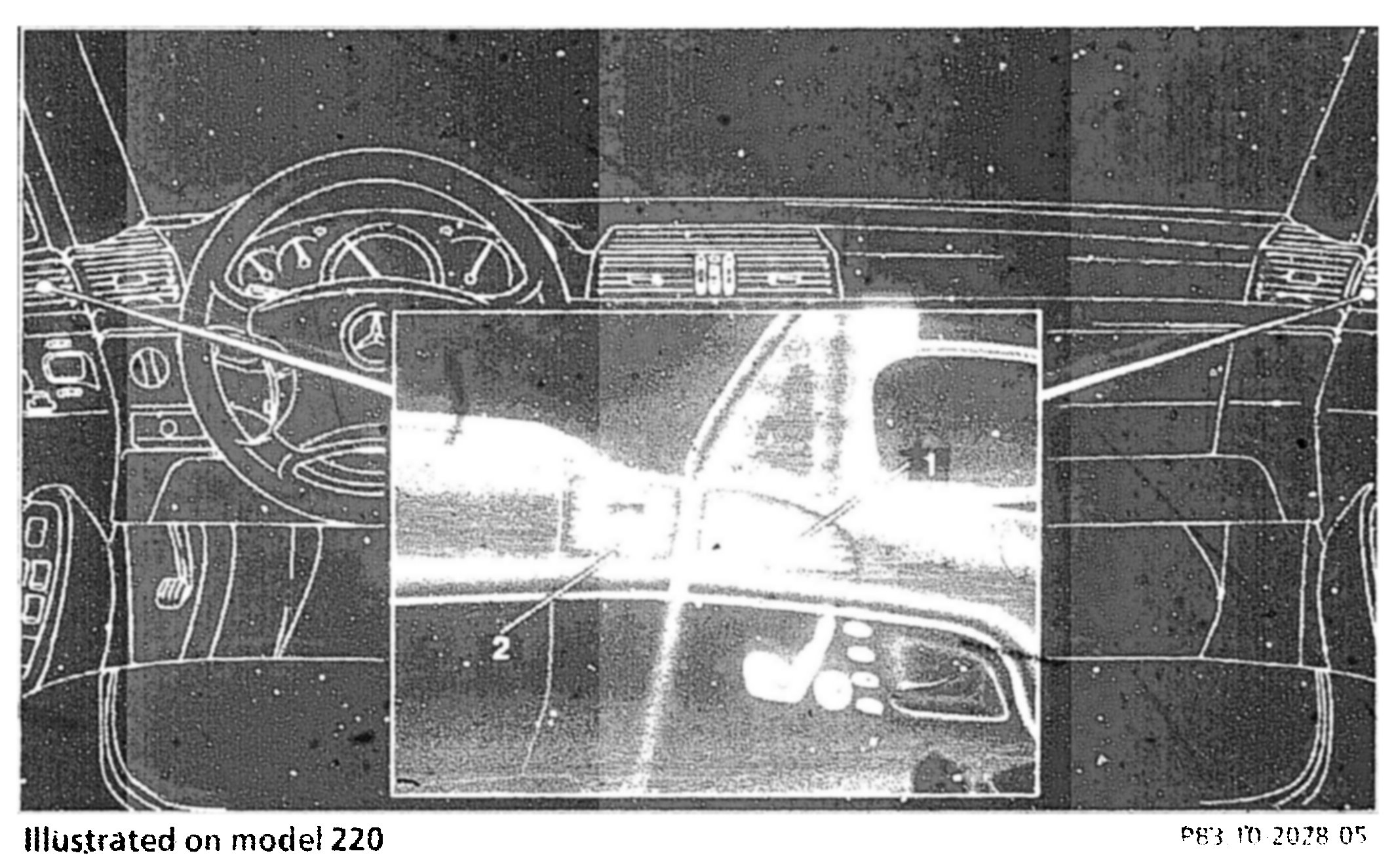

Illustrated On Model 220:

Function
The air to the door vents (1) can be controlled by opening the side nozzle
adjustment wheel (2)
Settings on side nozzle adjustment wheel (2)

- Side nozzle completely open
- Side nozzle and air outlet to door vent
(1) open. Air exits at the door vent.
