AR83.50-P-9060M Remove/Install Stepper Motor of Center Nozzle/Footwell Flap of Rear Air Conditioning

AR83.50-P-9060M Remove/Install Stepper Motor of Center Nozzle/Footwell Flap of Rear Air Conditioning
- with CODE (582) Rear air conditioning

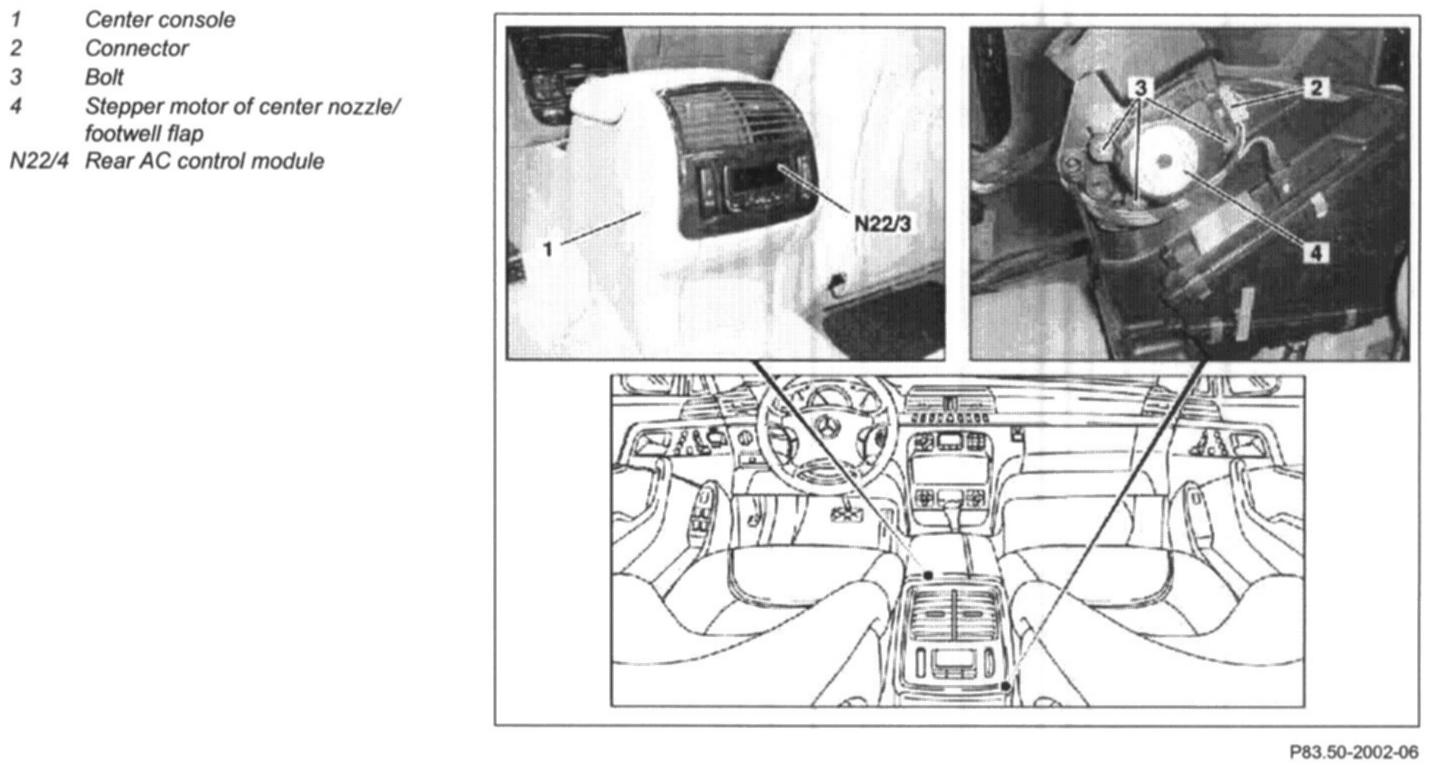

1 Remove rear AC control module (N22/4)
2 Remove center console (1)
3 Disconnect connector (2)
4 Unscrew 3 bolts (3)
5 Detach stepper motor of center nozzle/footwell flap (4)
6 Install in the reverse order.
7 Synchronize the stepper motors.
