S 430 (220.170) V8-4.3L (113.941)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Air Door
>>
Air Door Actuator / Motor
>>
Locations
>>
Vacuum Element For Recirculated Air Flap
Vacuum Element For Recirculated Air Flap
Illustrated On Model 220:

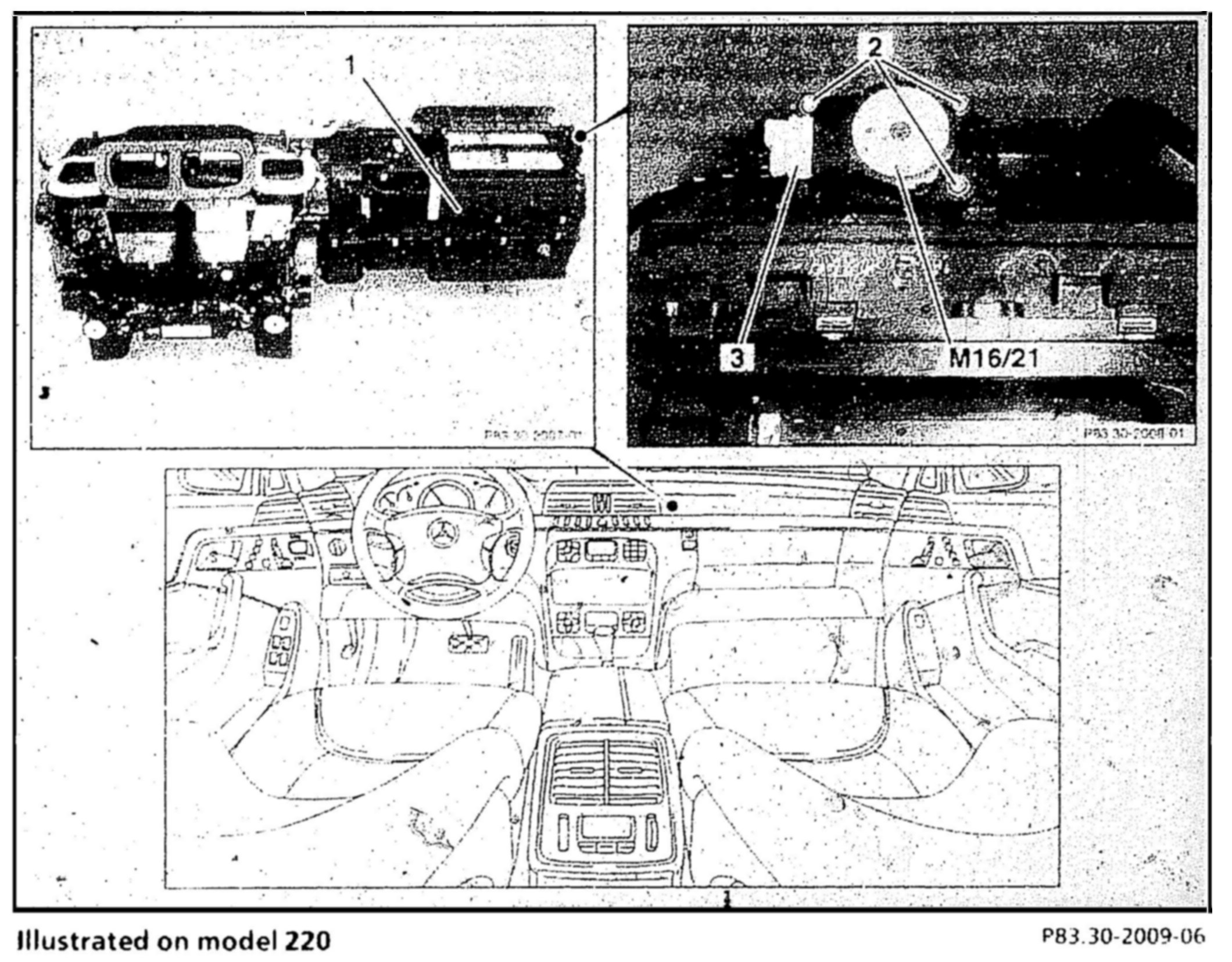

The fresh air/recirculated air flap actuator motor (M16/21) is located on the right side of the A/C housing between the fresh air and recirculated air flap.
