S 430 (220.170) V8-4.3L (113.941)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Air Door
>>
Air Door Actuator / Motor
>>
Description and Operation
>>
Vacuum Element For Recirculated Air Flap
Vacuum Element For Recirculated Air Flap

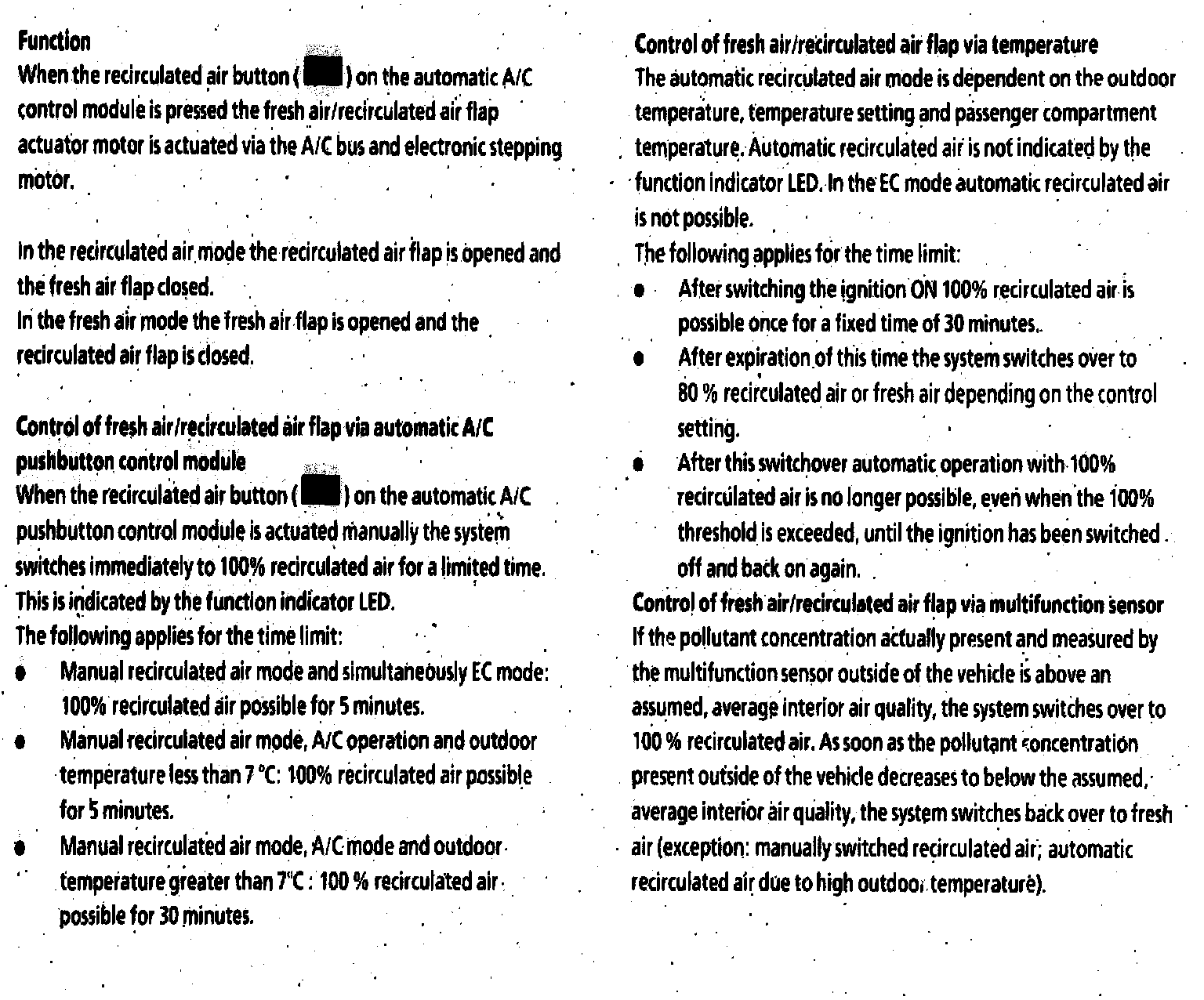

The fresh air/recirculated air flap actuator motor serves for shutting off or opening the fresh air supply as required by actuating the fresh air/recirculated
air flap
Function:
