Vacuum Element For Defroster Nozzle Flap




Purpose
The defroster vent flap actuator motors actuate the defroster vent flaps to control the airflow to the windshield defroster nozzles and side window defroster nozzles separately for the left and right sides.

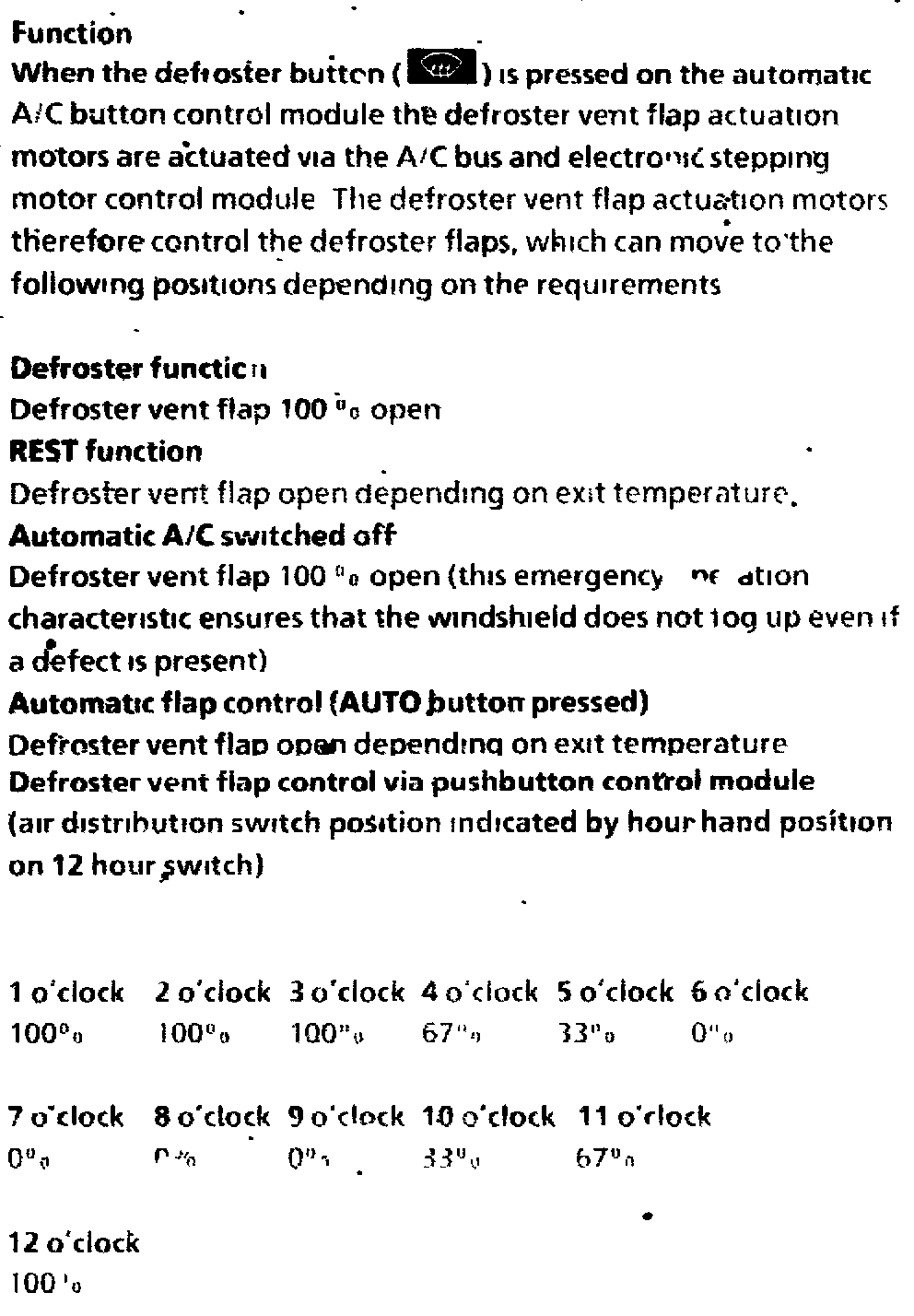

Function:
