AP20.00-P-2080DA Replace Coolant



AP20.00-P-2080DA Replace coolant

Modification notes:

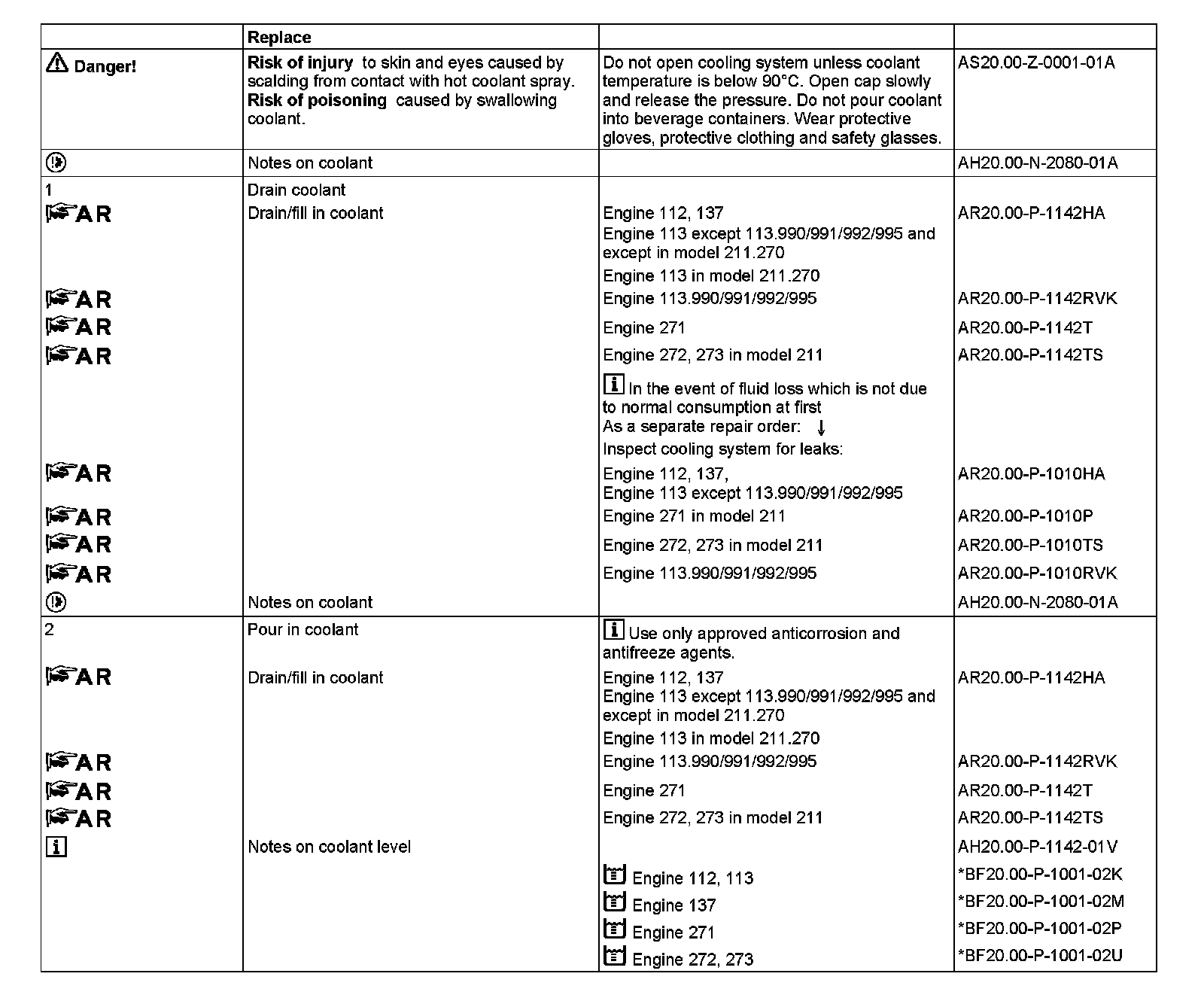

Steps 1-2:

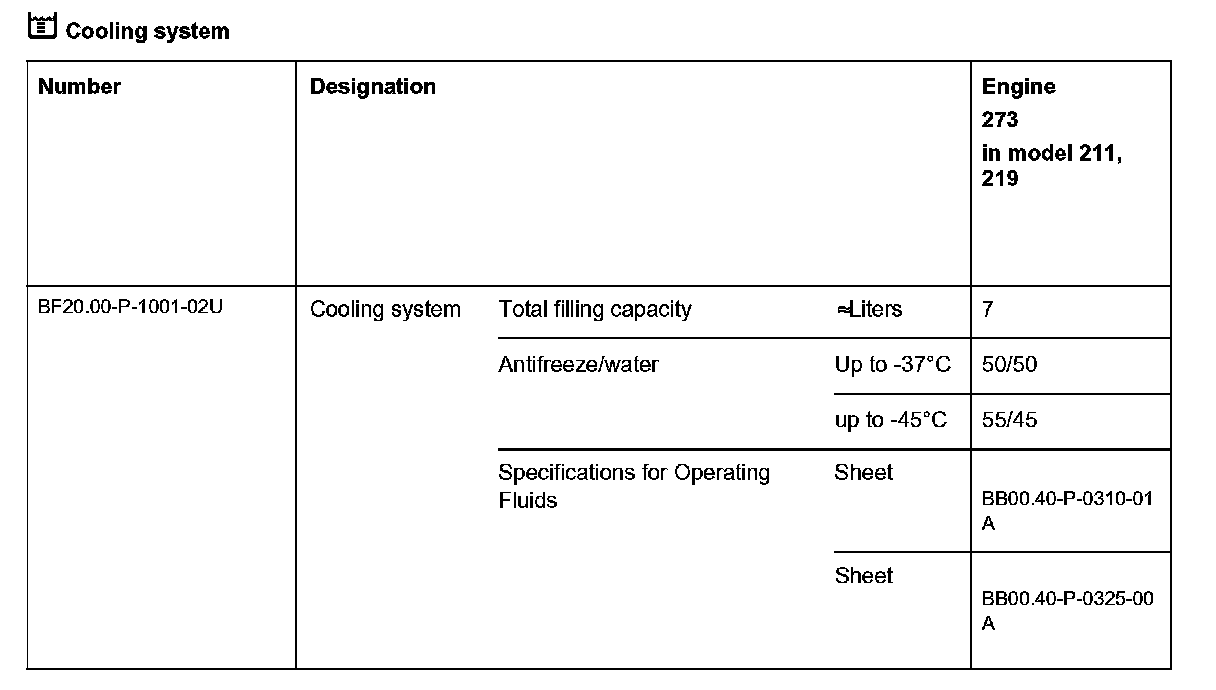

Cooling system:

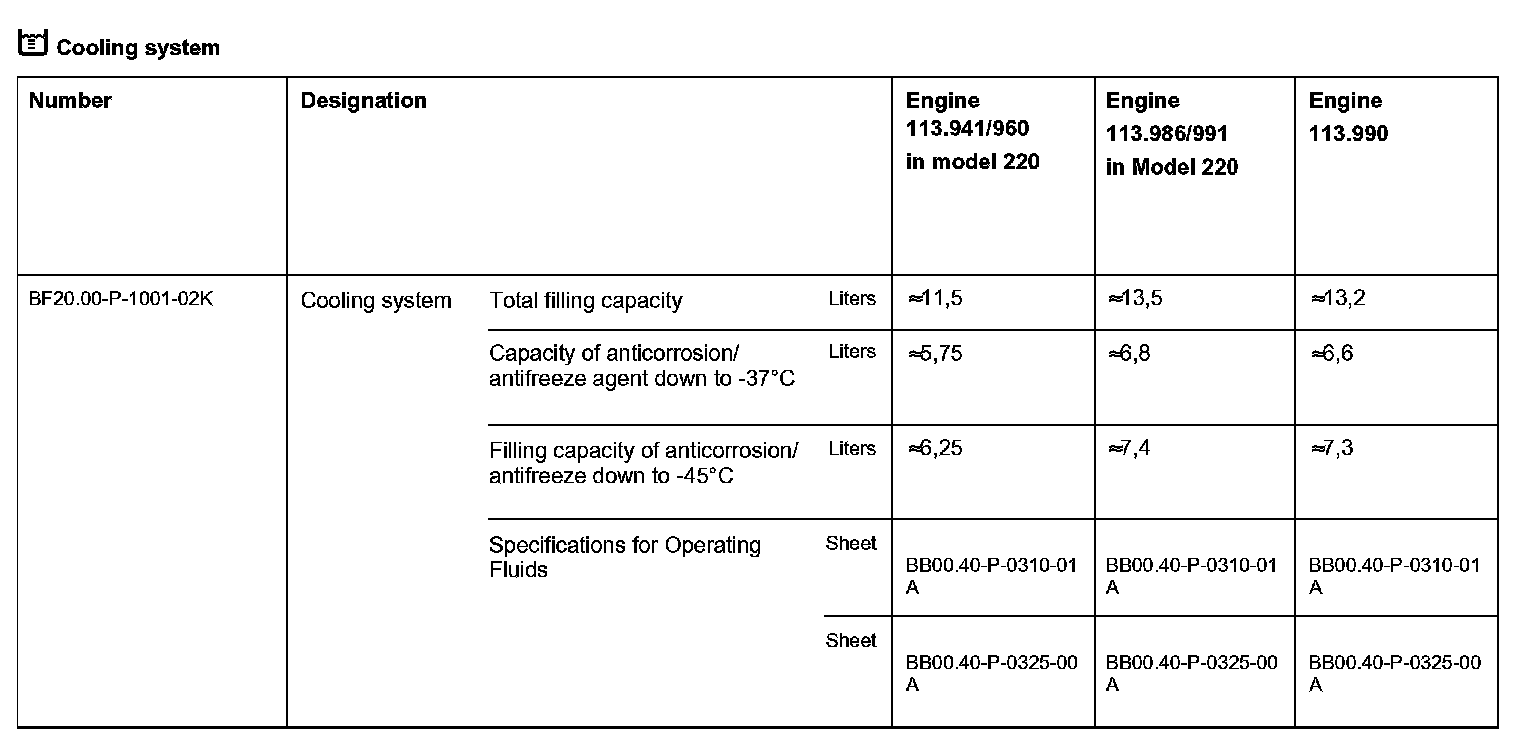

Cooling system:

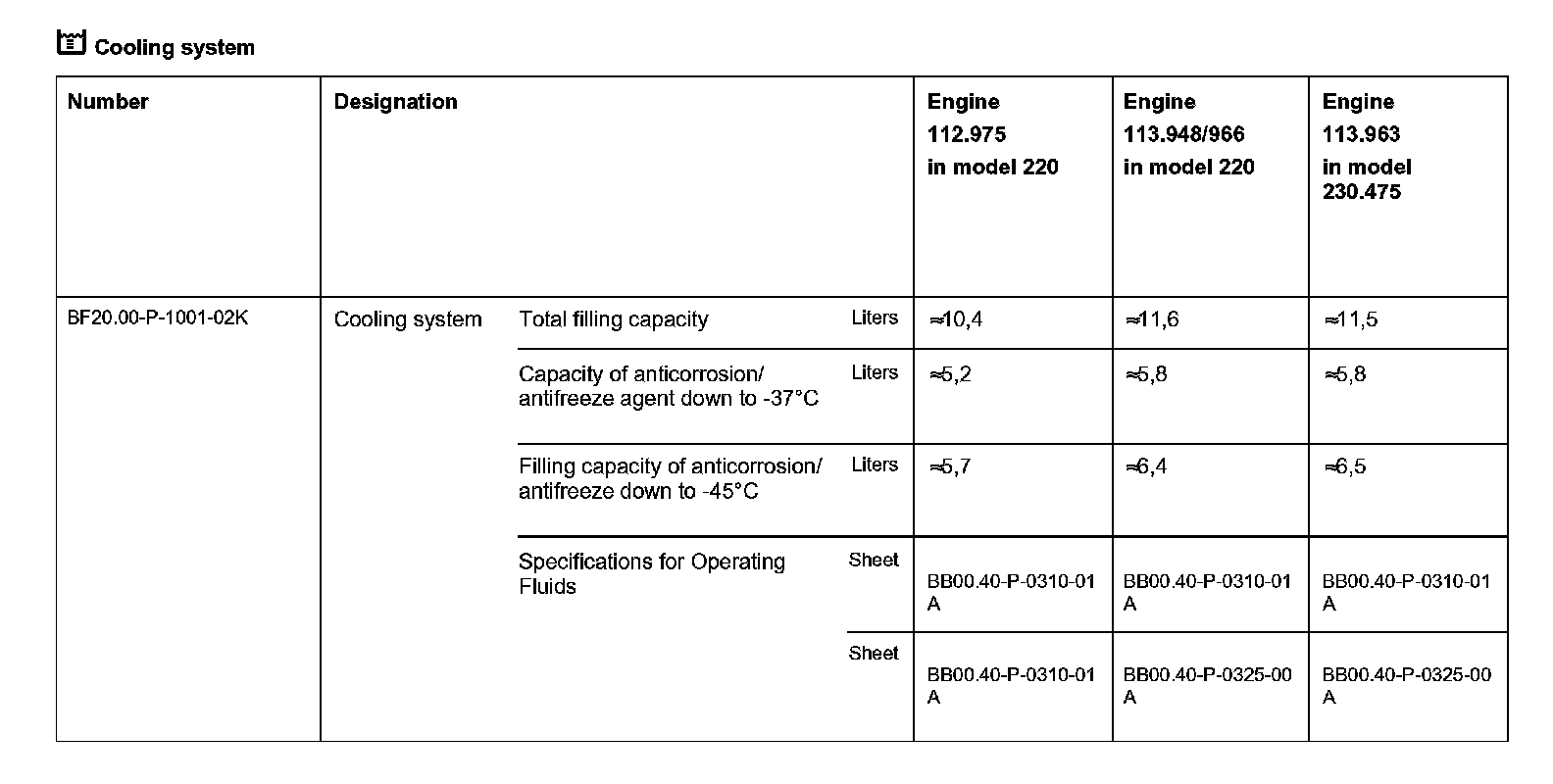

Cooling system:

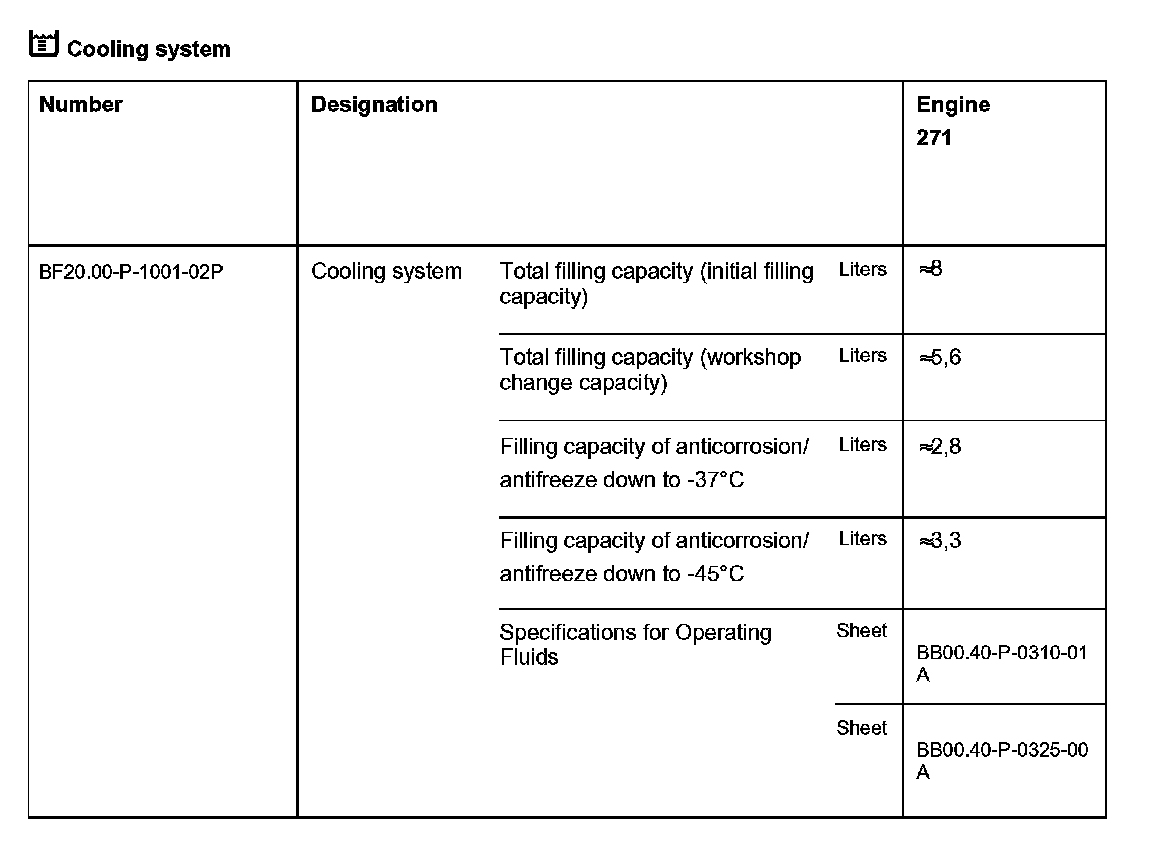

Cooling system:

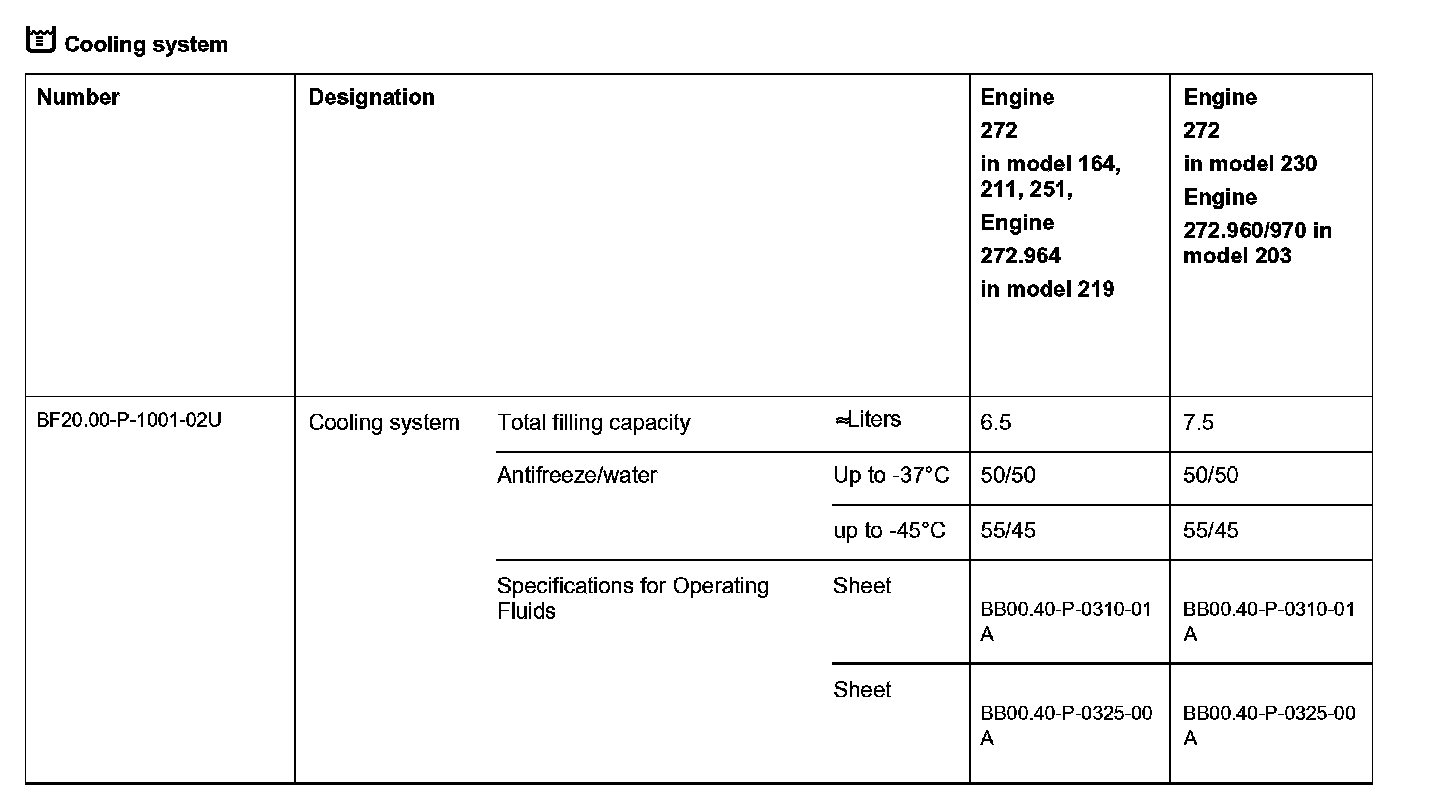

Cooling system:

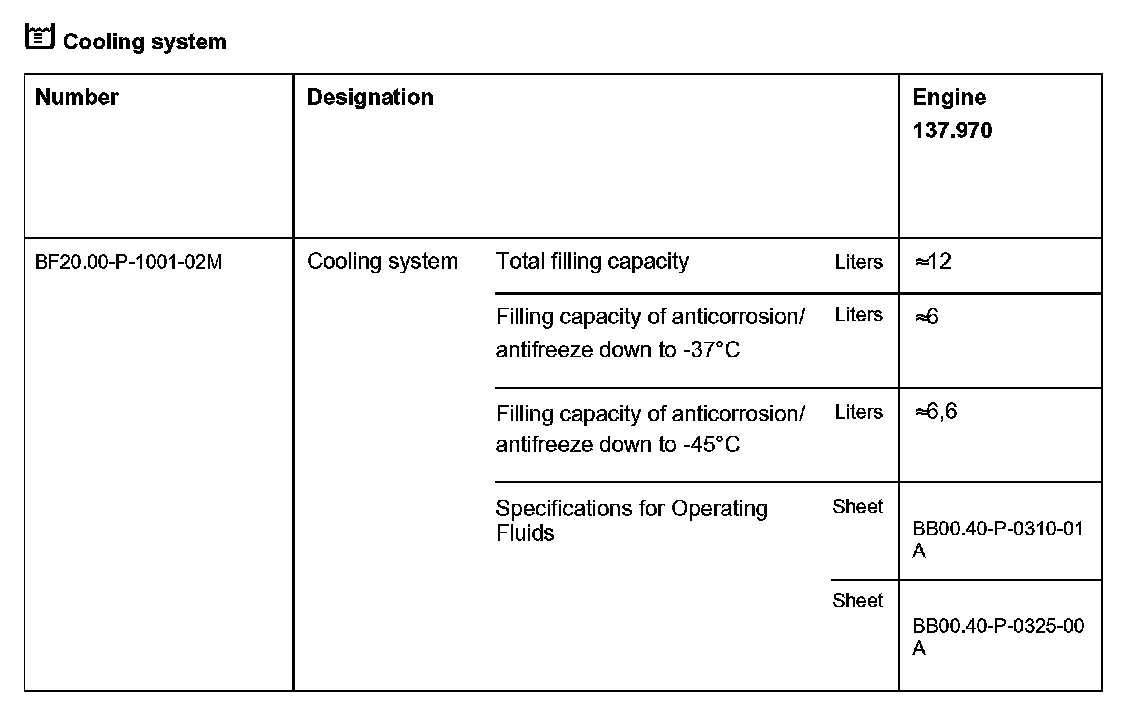

Cooling system:

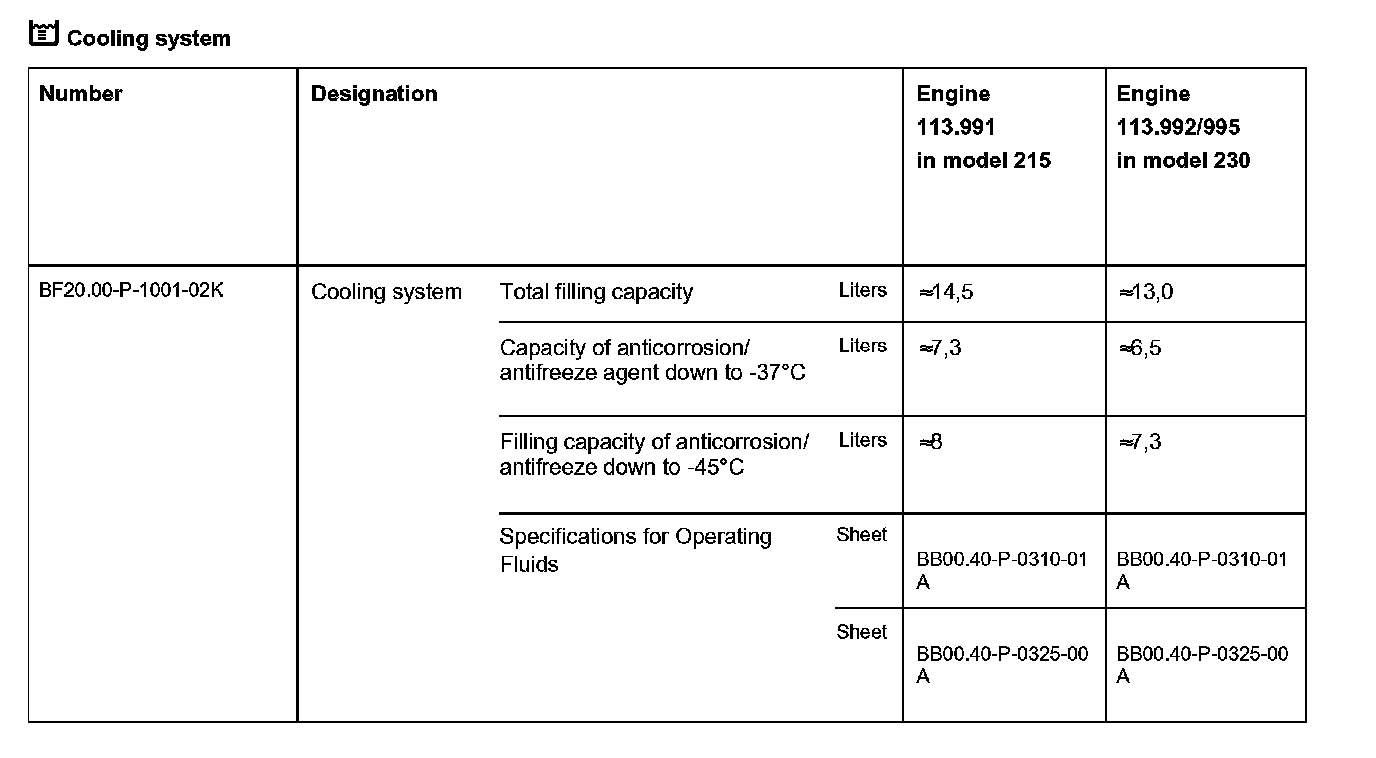

Cooling system:




Cooling system:




Cooling system:
