Anti-Theft Alarm System (ATA) PE80.50-U-2000SB, Sheet 2

Anti-Theft Alaram System (ATA) PE80.50-U-2000SB

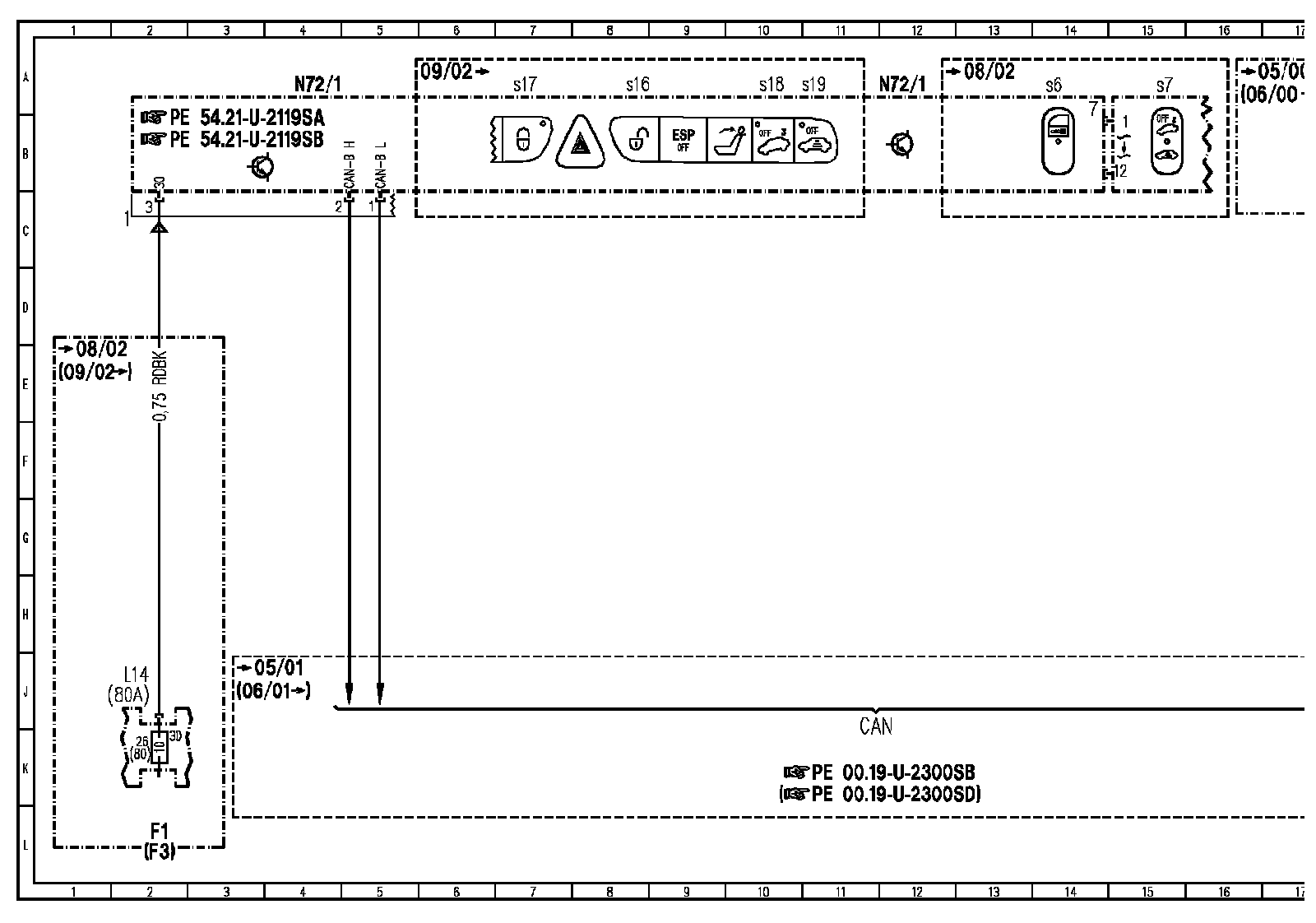

Wiring Diagram, Part 1:

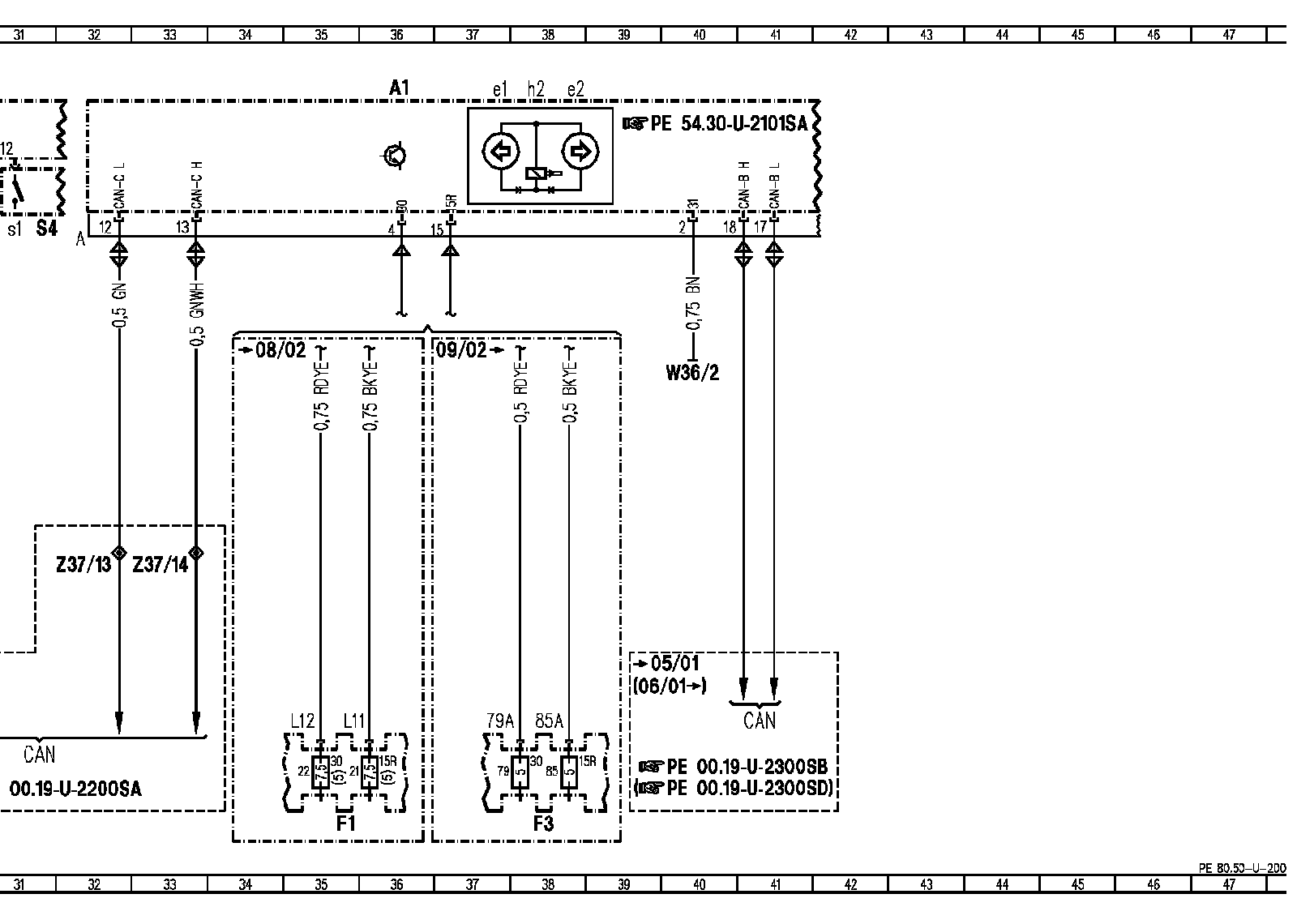

Wiring Diagram, Part 2:

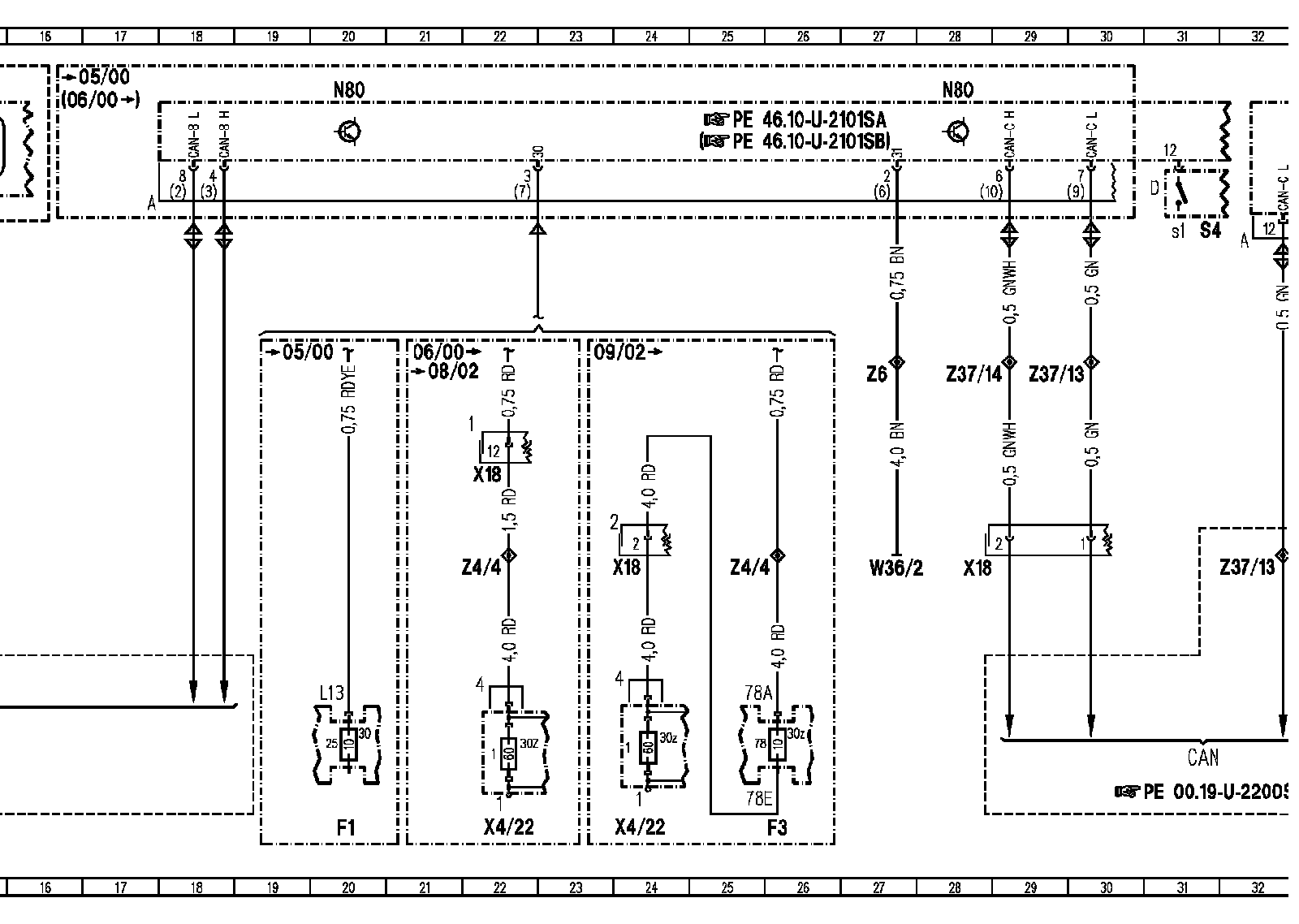

Wiring Diagram, Part 3:

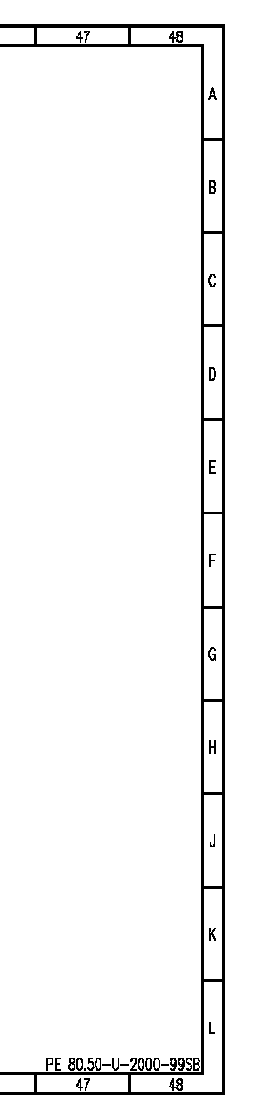

Wiring Diagram, Part 4:

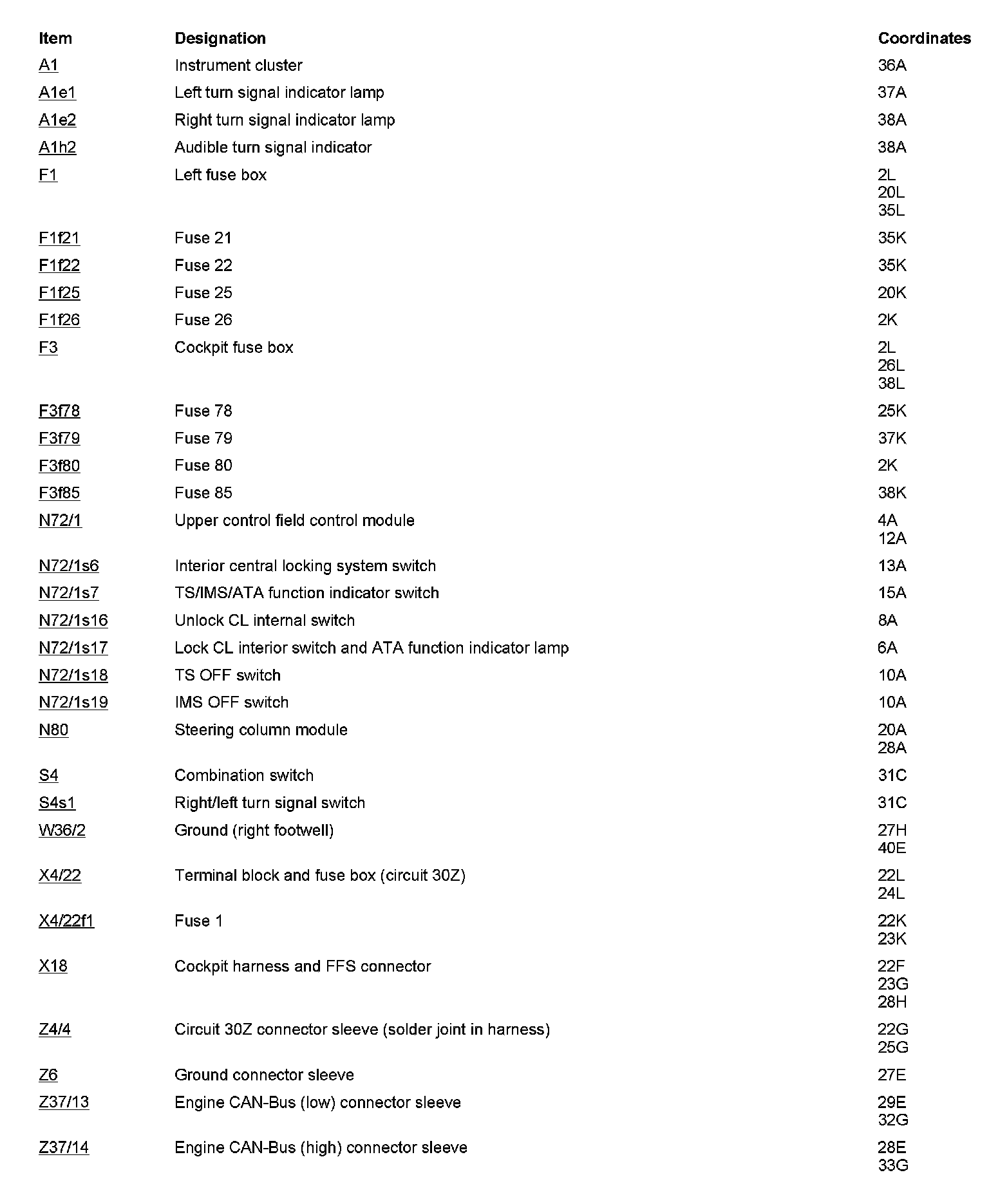

Component Description/Coordinates, A1 to Z37/14:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
