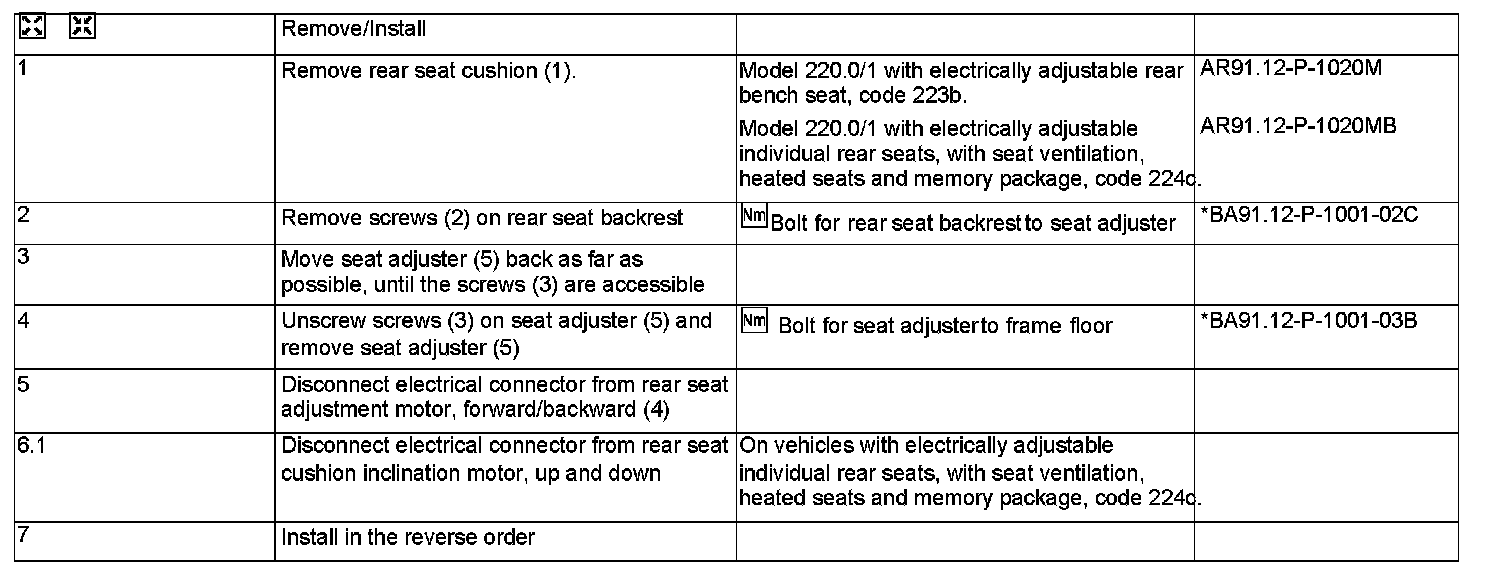

AR91.12-P-1520M Remove/Install Seat Adjuster At Rear Seat



AR91.12-P-1520M Remove/Install Seat Adjuster At Rear Seat
- with CODE (223b) Electrically adjustable rear bench seat
- with CODE (224c) Electrically adjustable rear single seats, with ventilation, seat heater and memory package

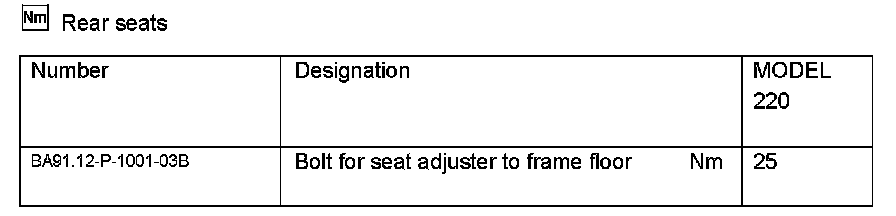

Rear Seats:

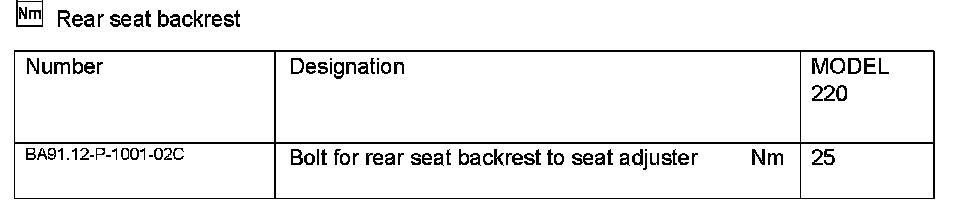

Rear Seat Backrest:
