FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2002
>>
S 430 (220.170) V8-4.3L (113.941)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Track
>>
Service and Repair
>>
Removal and Replacement
>>

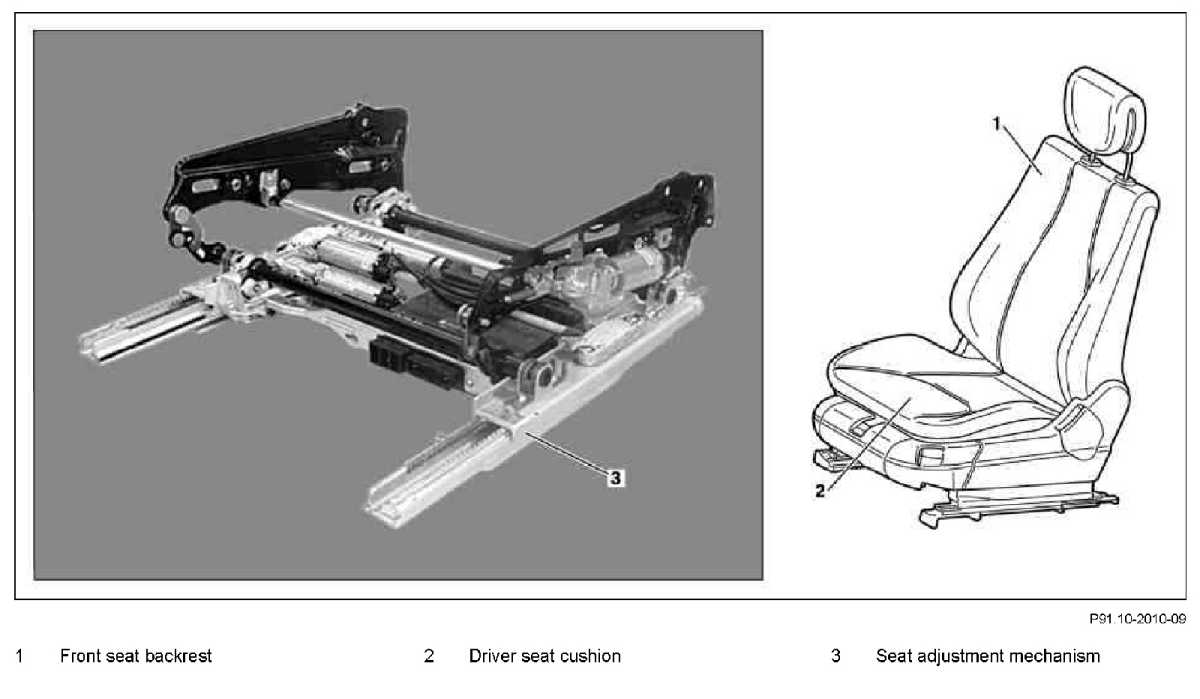

AR91.10-P-1450M Remove/Install Front Seat Adjustment Mechanism
AR91.10-P-1450M Remove/Install Front Seat Adjustment Mechanism
AR91.10-P-1450M Remove/Install Front Seat Adjustment Mechanism
