AN91.10-P-0002M Retrofit Booster Cushion On Front Seat

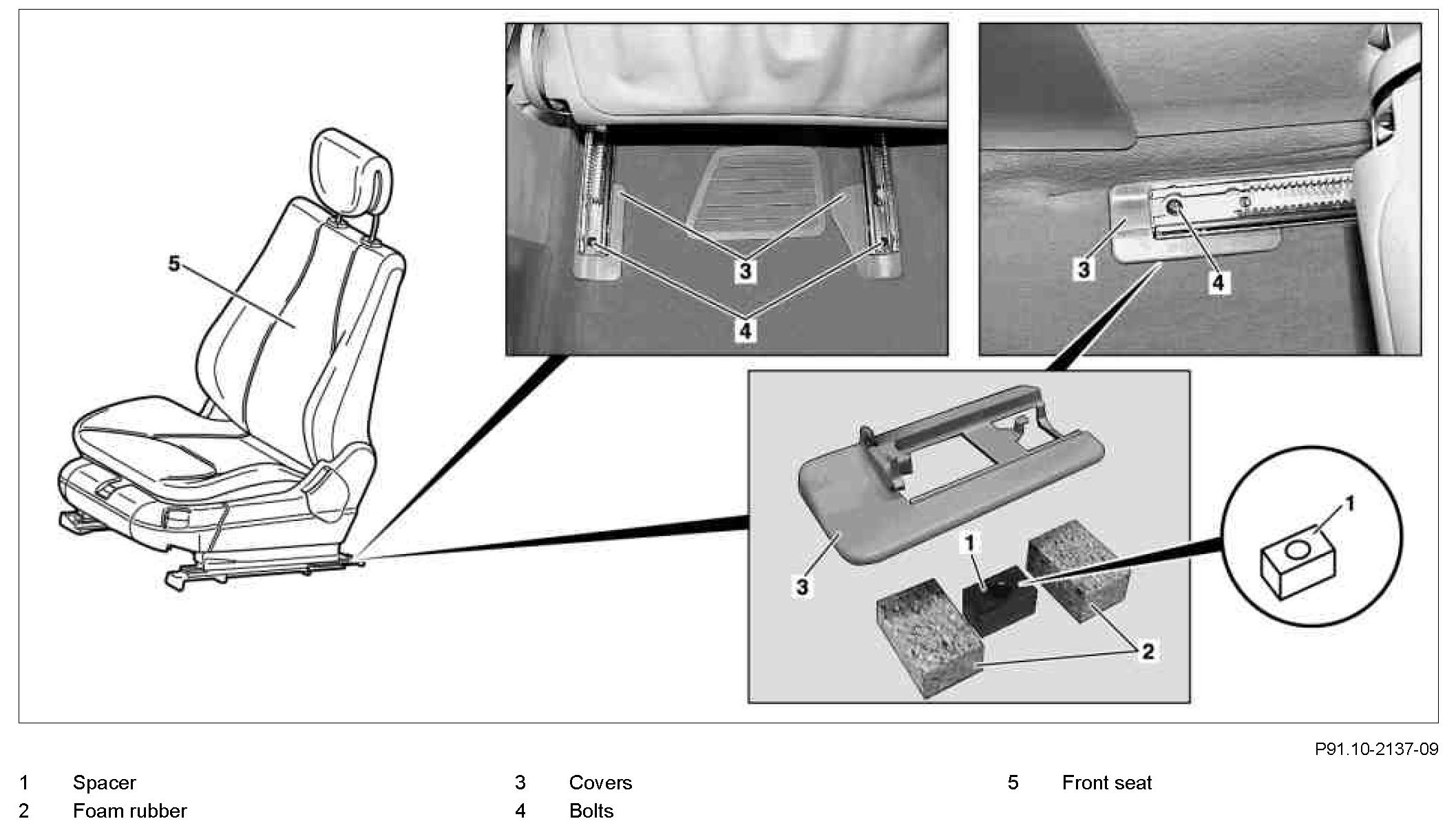

Component Identification:

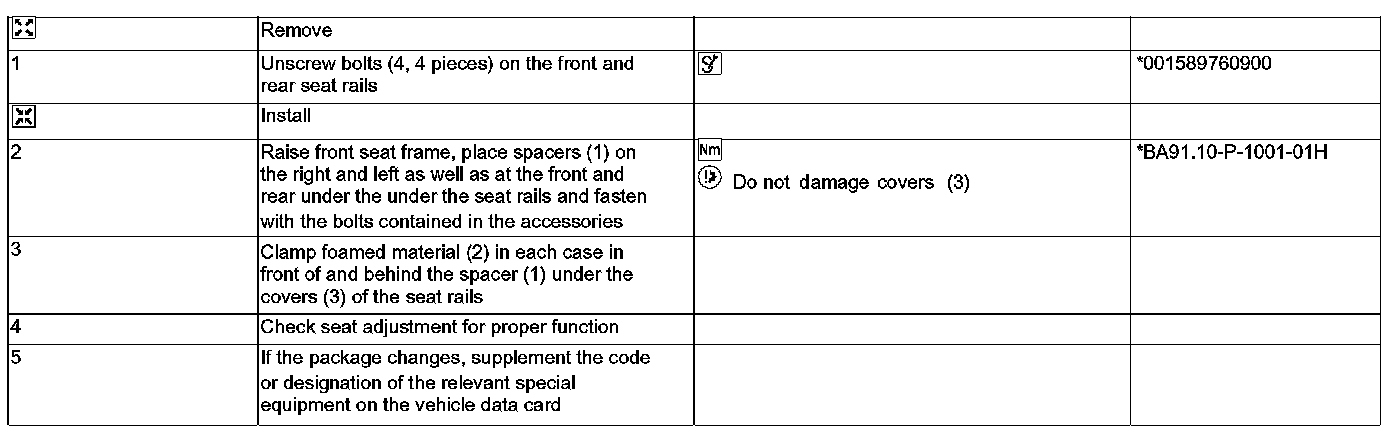

Steps 1 - 5:

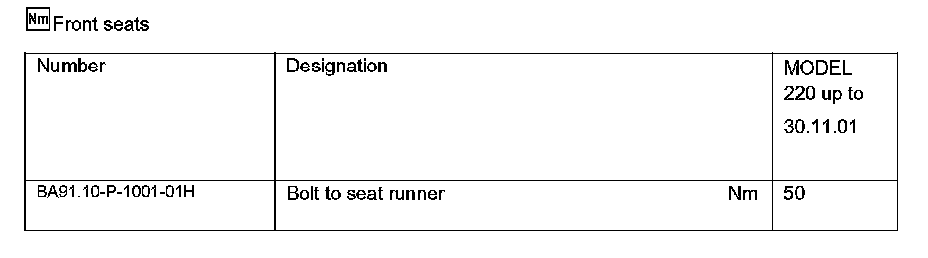

Front Seats:
Special Tools:

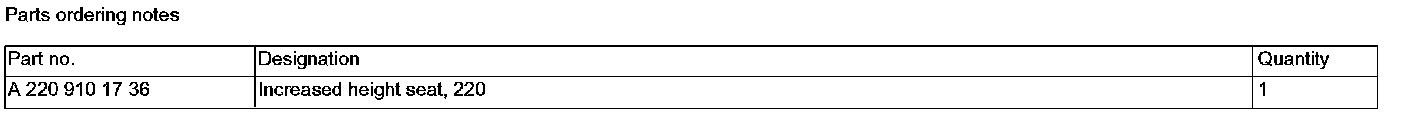

Parts Ordering Notes:
