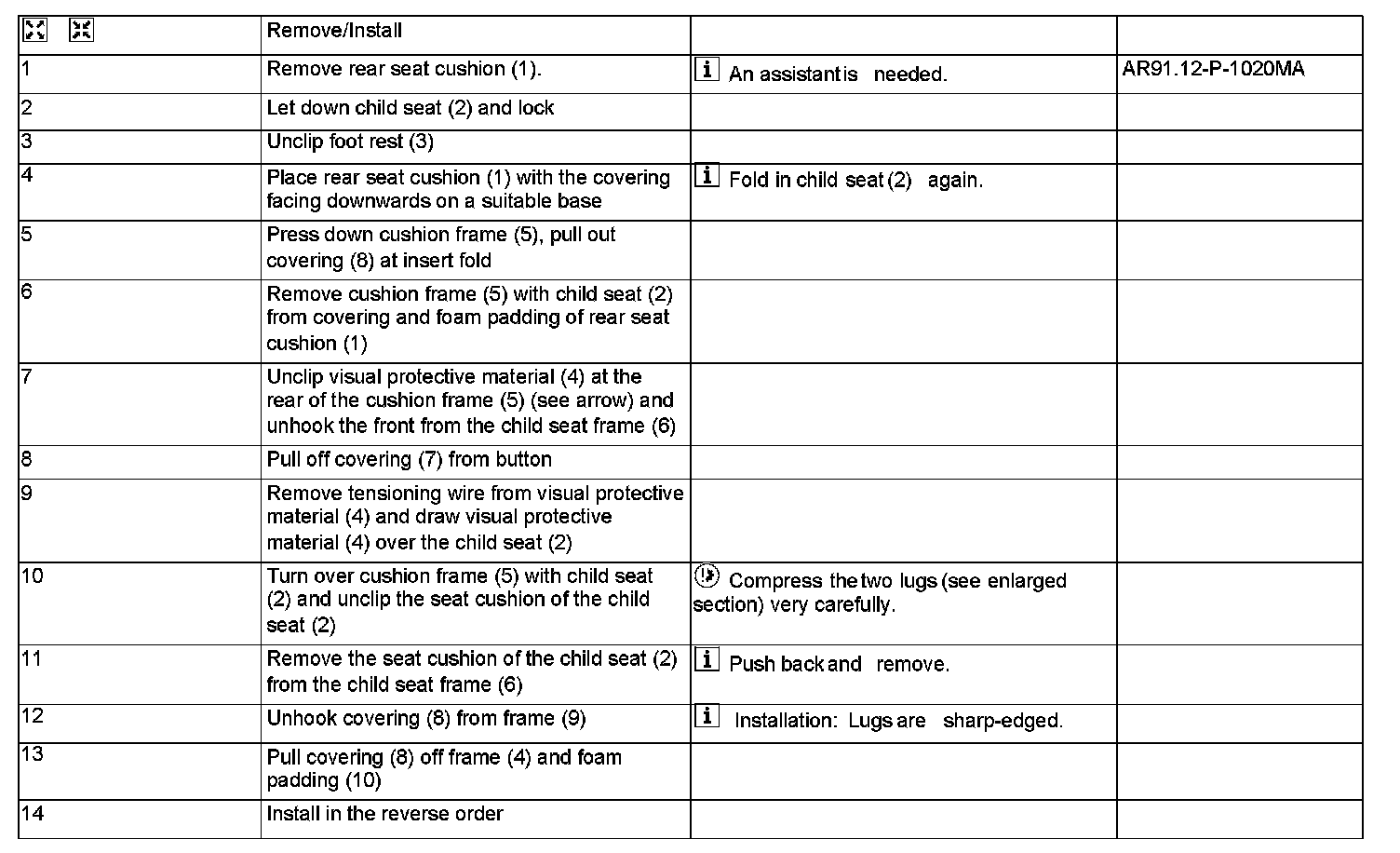

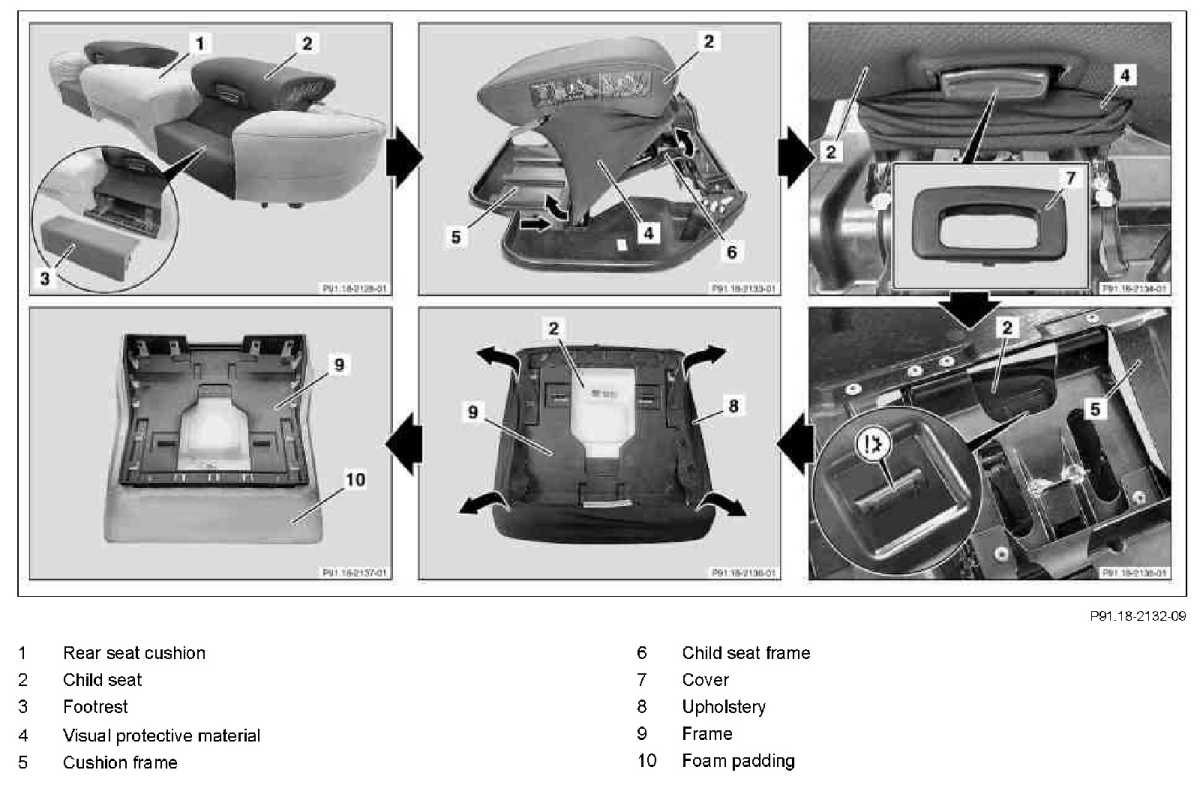

AR91.20-P-1855M Remove/Install Covering on Child Seat Cushion



AR91.20-P-1855M Remove/Install Covering on Child Seat Cushion
- with CODE (248) Rear seat with integral child seat
