Home >> Mercedes Benz >> 2002 >> S 430 (220.170) V8-4.3L (113.941) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> AR91.18-P-1830M Remove/Install Head Restraint Upholstery

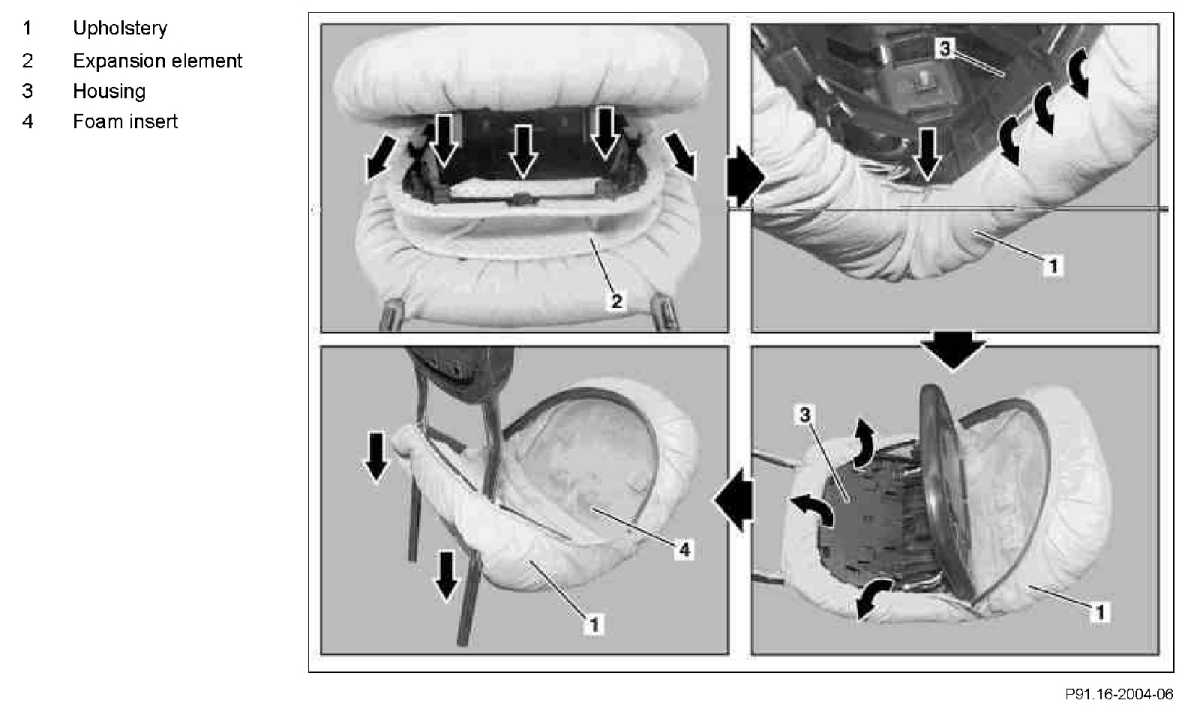

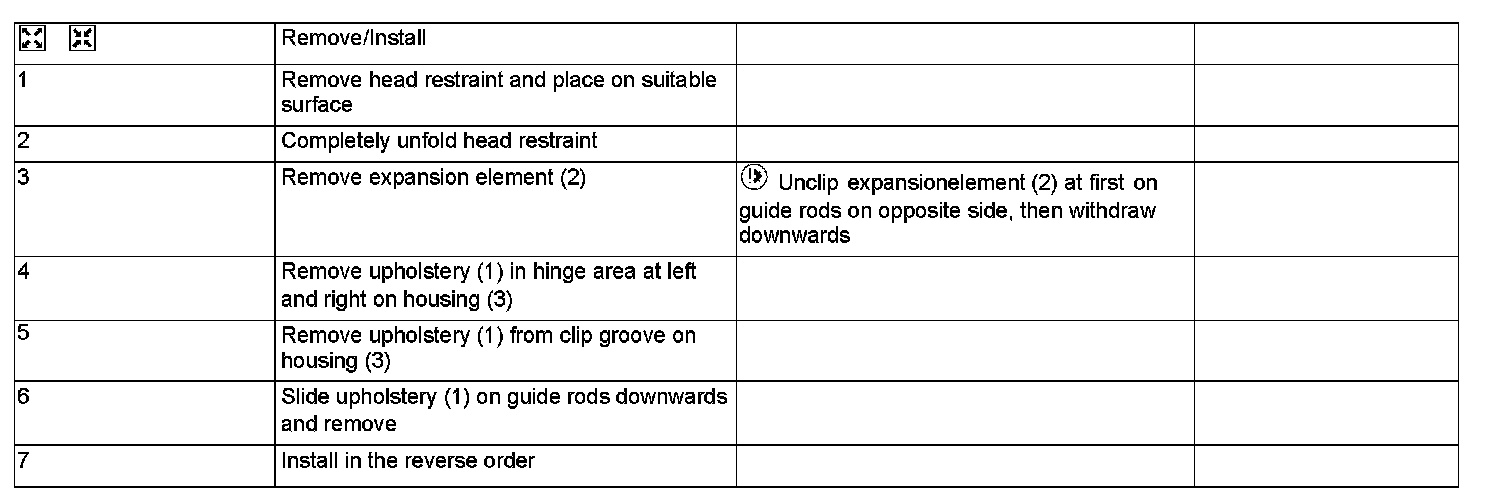

AR91.18-P-1830M Remove/Install Head Restraint Upholstery



AR91.18-P-1830M Remove/Install Head Restraint Upholstery
