AR91.18-P-1820M Remove/Install Front Seat Backrest Cover
AR91.18-P-1820M Remove/Install Front Seat Backrest Cover
AR91.18-P-1820M Remove/Install Front
Seat Backrest
Cover

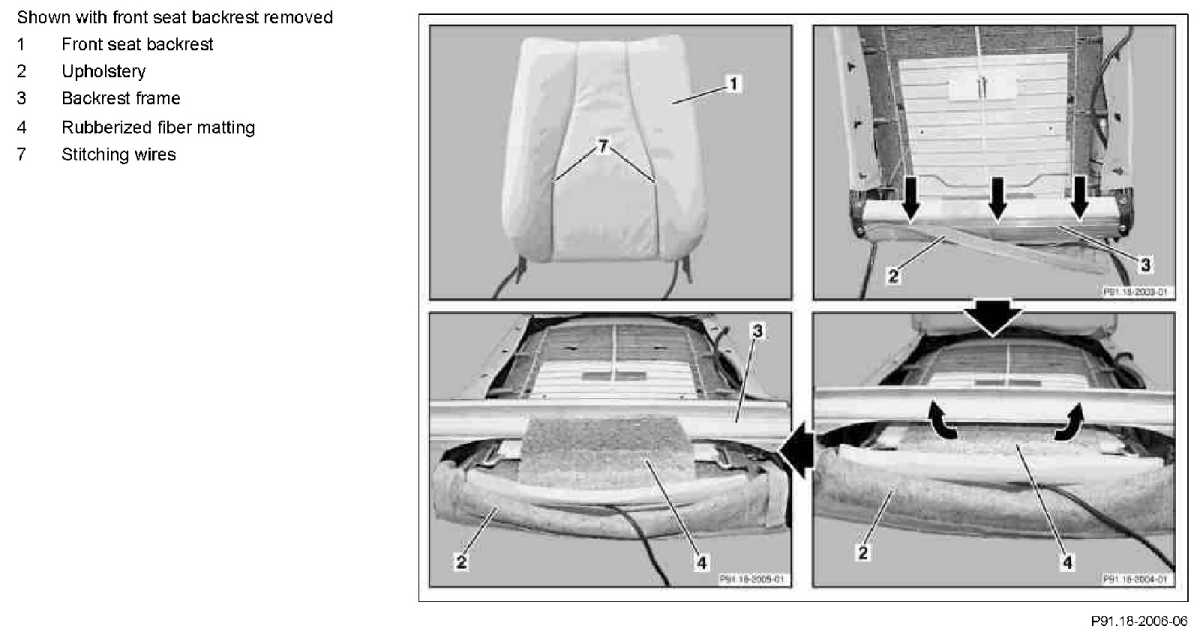

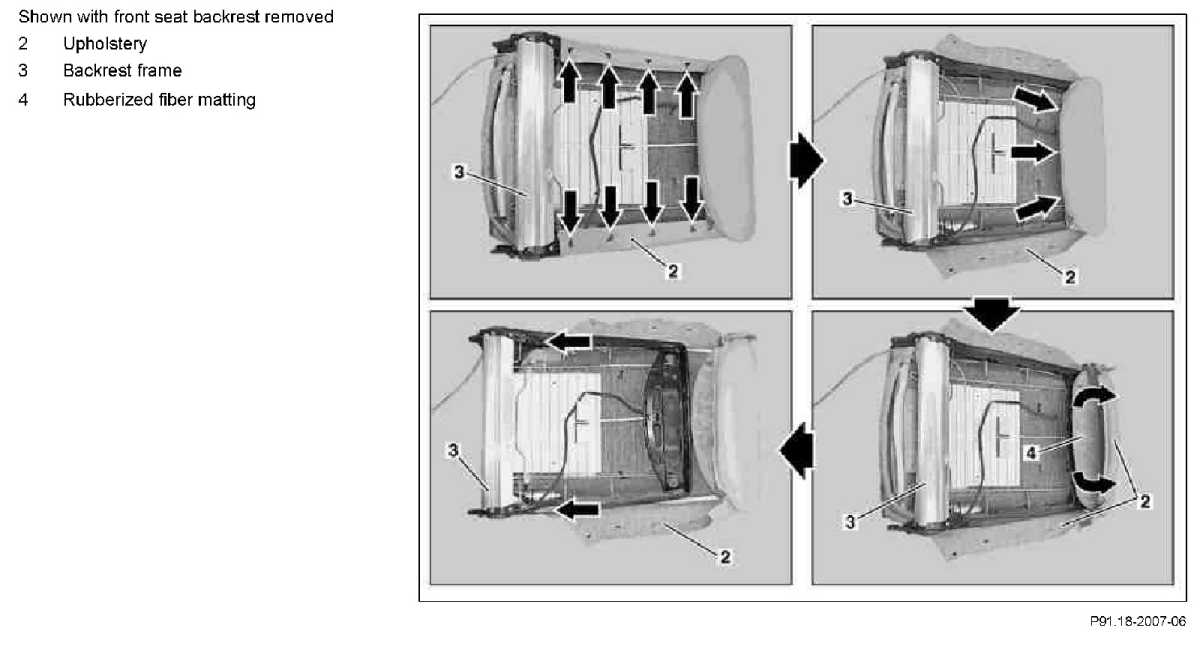

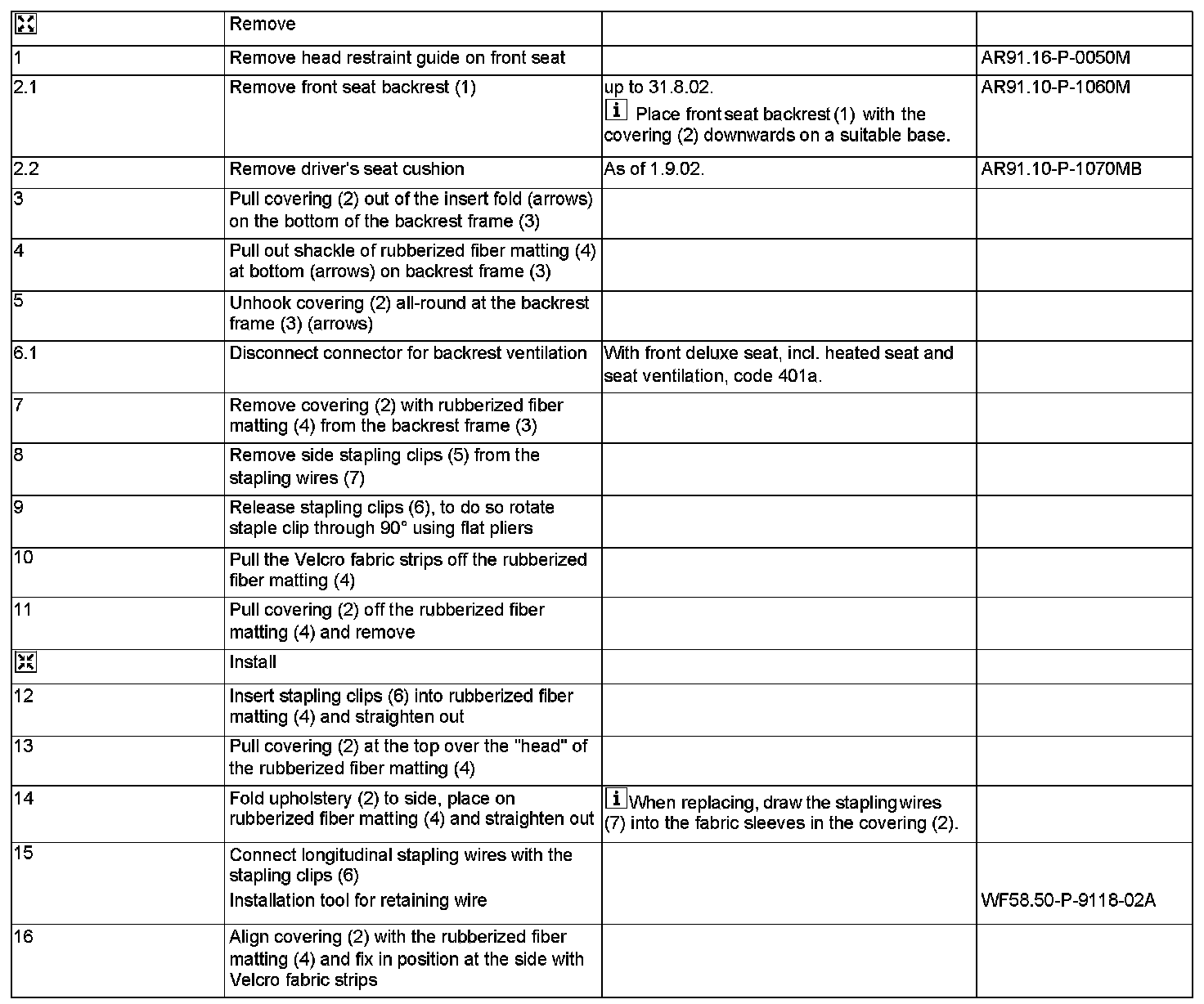

Part 1:

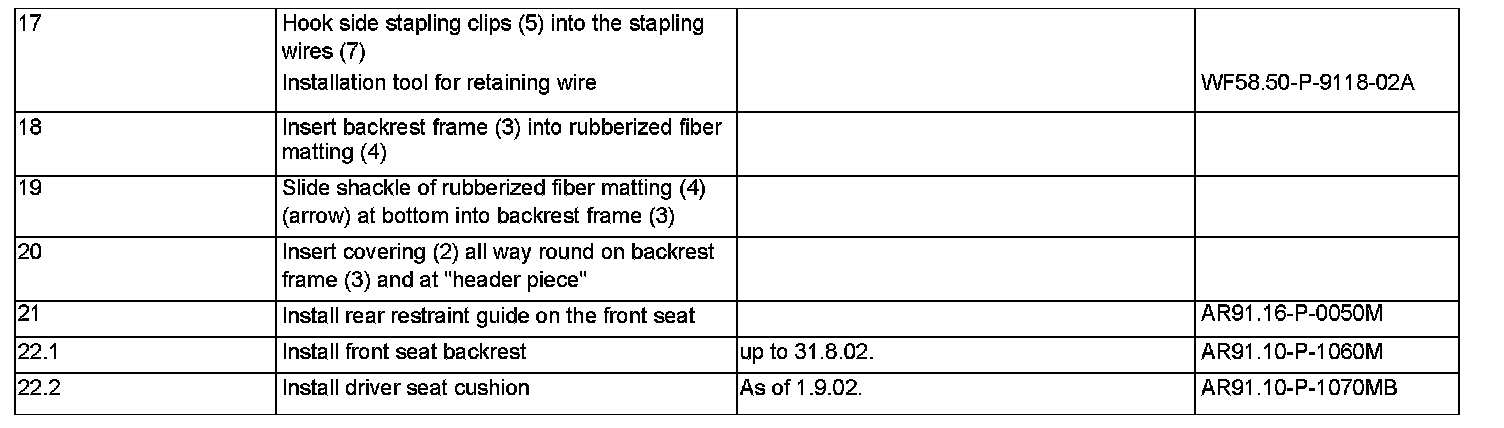

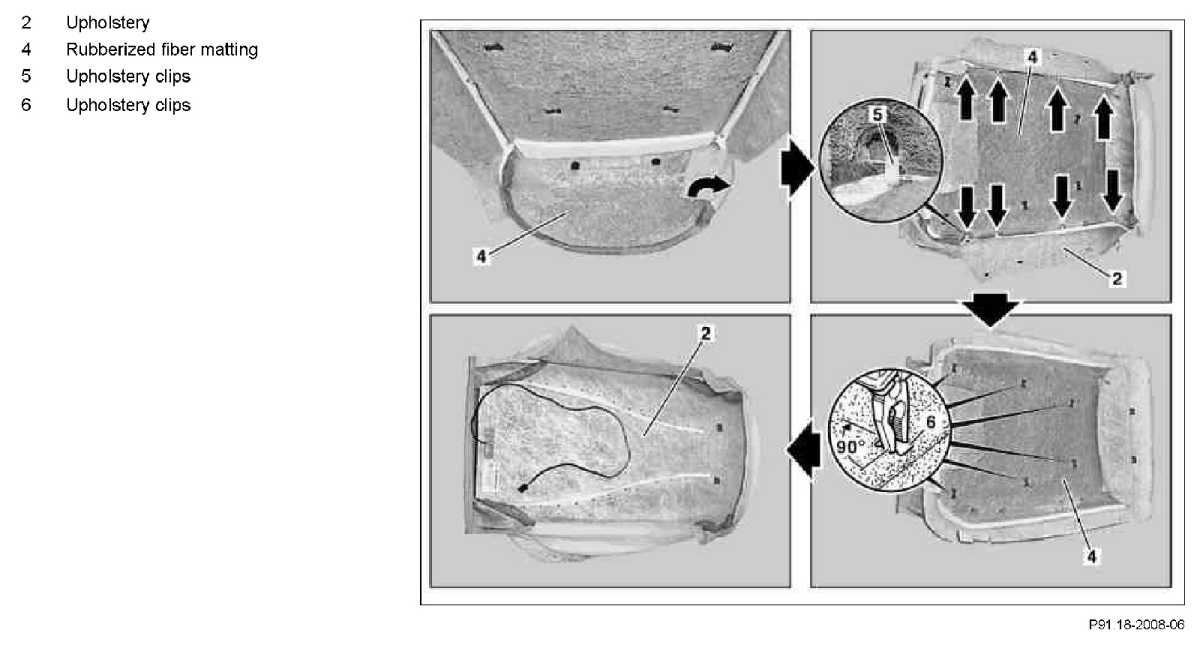

Part 2:
