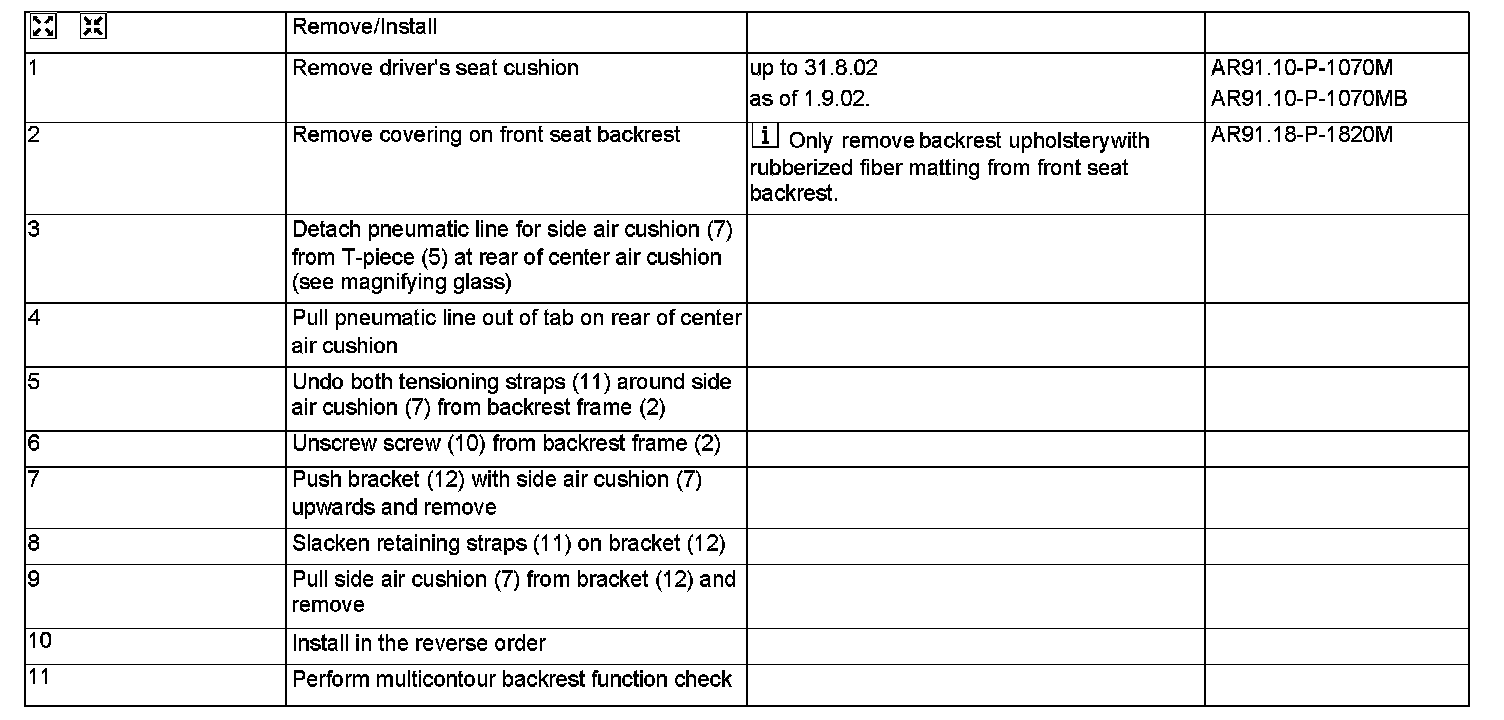

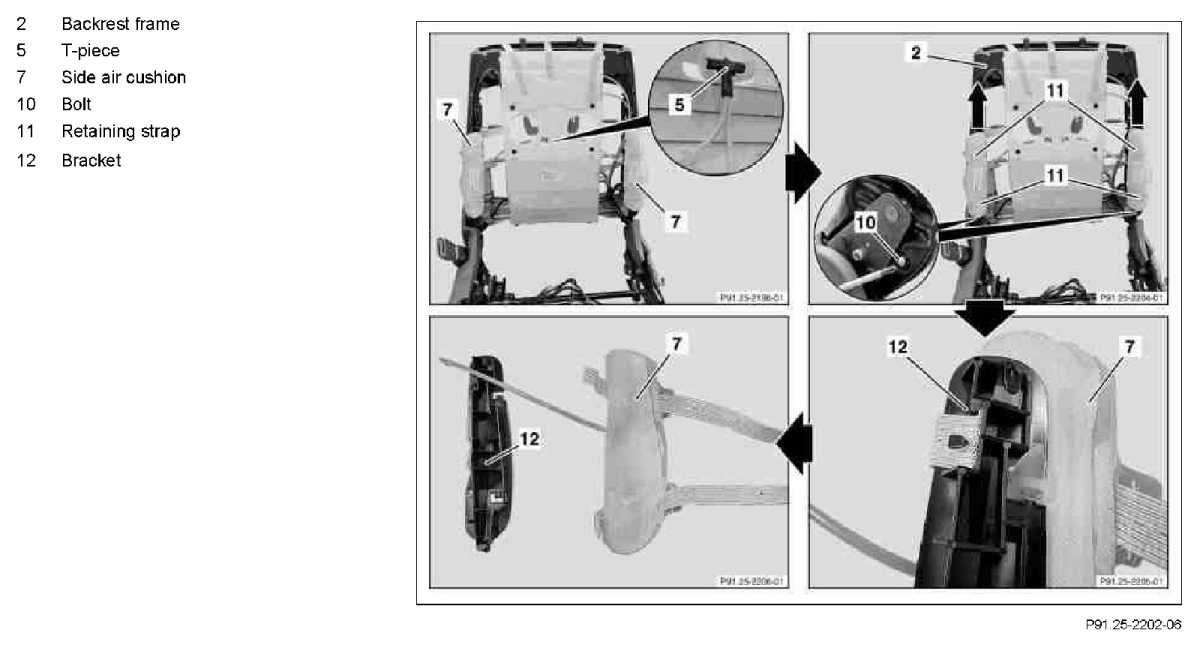

AR91.25-P-1741M Remove/Install Multicontour Backrest Side Air Cushions



AR91.25-P-1741M Remove/Install Multicontour Backrest Side Air Cushions
- with CODE (404b) Multicontour backrest driver seat
- with CODE (405b) Multicontour backrest passenger seat
