Home >> Mercedes Benz >> 2002 >> S 430 (220.170) V8-4.3L (113.941) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Bladder >> Service and Repair >> AR91.25-P-1740M Remove/Install Multi-Contour Backrest Air Cushion

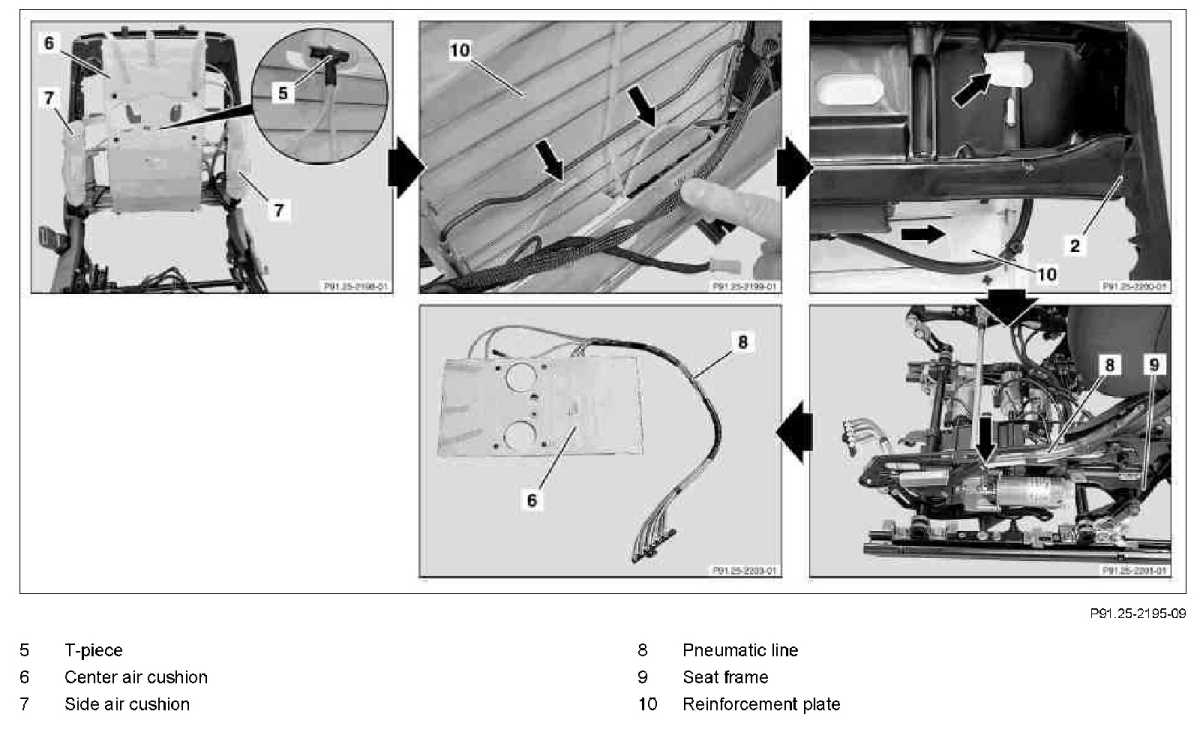

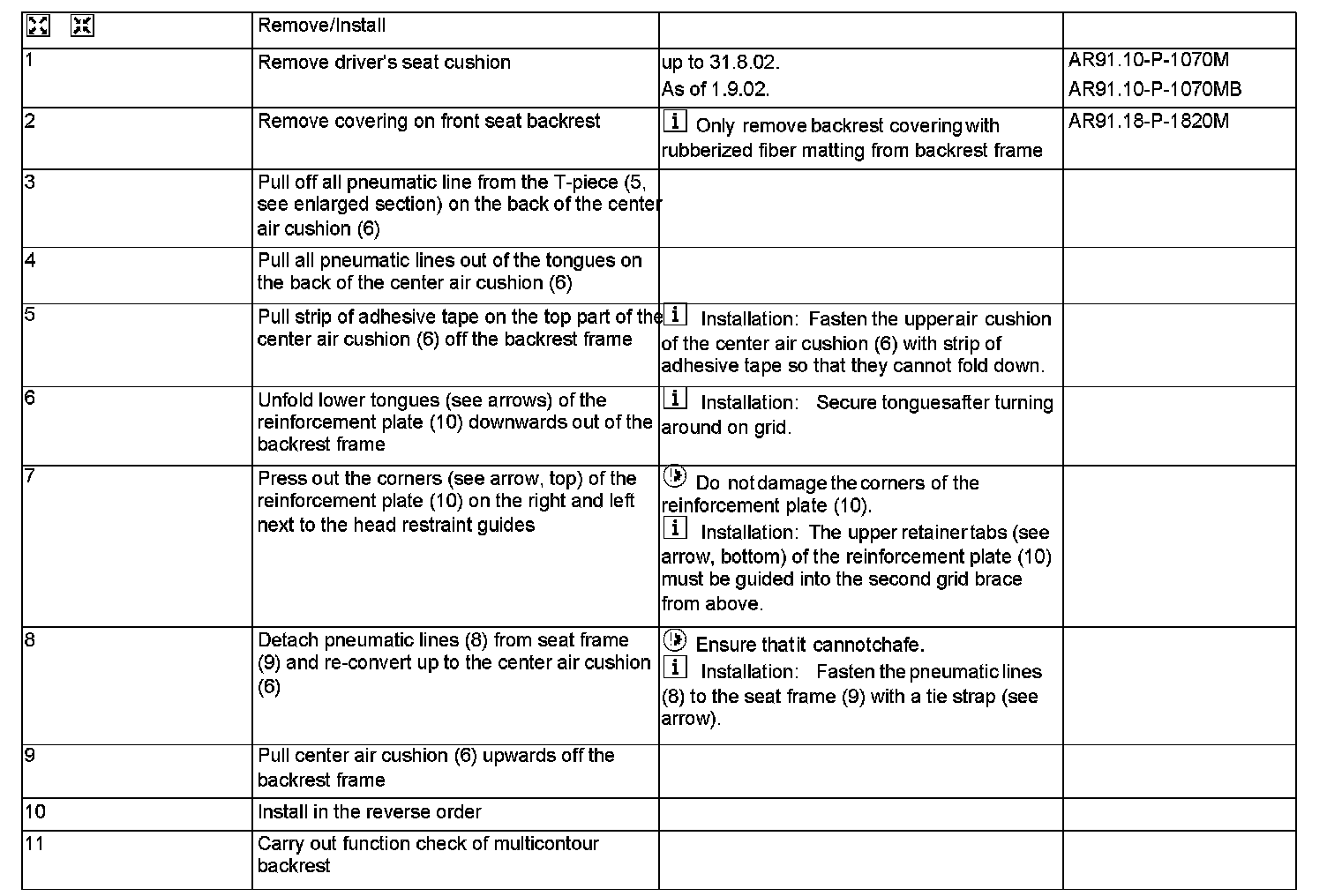

AR91.25-P-1740M Remove/Install Multi-Contour Backrest Air Cushion



AR91.25-P-1740M Remove/Install Multi-Contour Backrest Air Cushion
- with CODE (404b) Multicontour backrest driver seat
- with CODE (405b) Multicontour backrest passenger seat
- Center air cushion
