Home >> Mercedes Benz >> 2002 >> S 430 (220.170) V8-4.3L (113.941) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Bladder >> Service and Repair >> AR91.12-P-1660M Remove/Install Rear Seat Lumbar Support Air Cushions

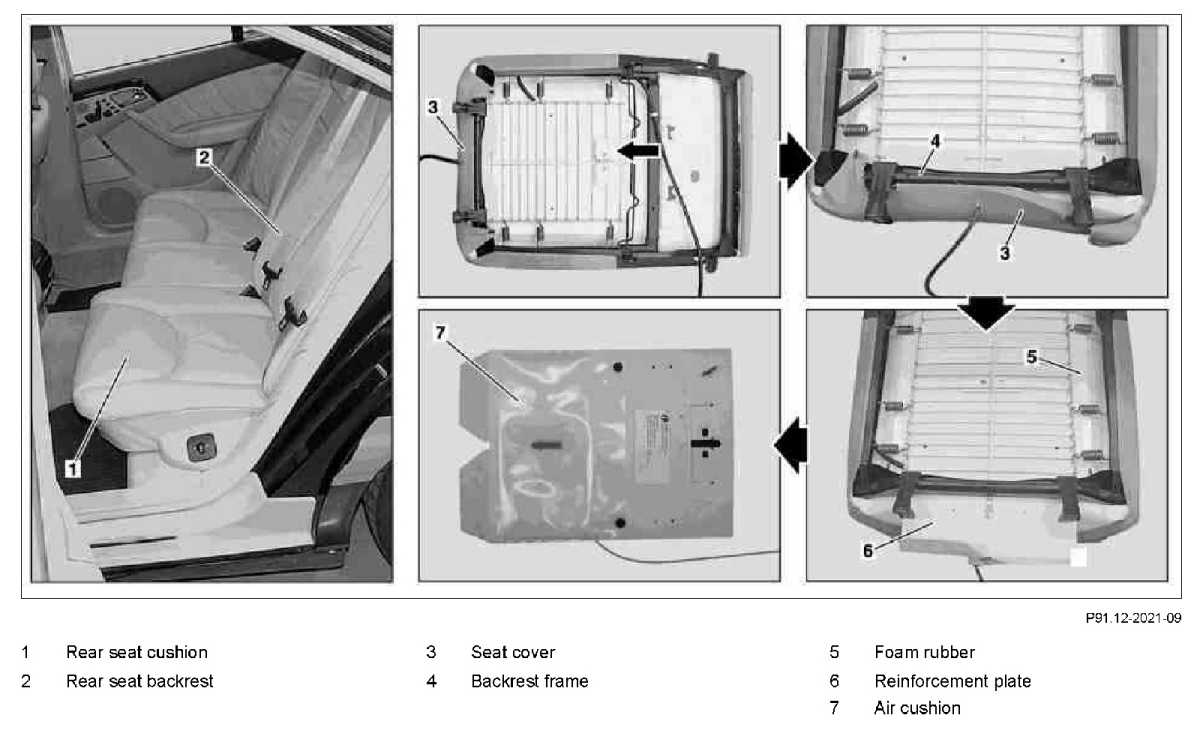

AR91.12-P-1660M Remove/Install Rear Seat Lumbar Support Air Cushions



AR91.12-P-1660M Remove/Install Rear Seat Lumbar Support Air Cushions
- with CODE (223b) Electrically adjustable rear bench seat
