AR91.12-P-1620M Remove/Install Rear-Seat Backrest



AR91.12-P-1620M Remove/Install Rear-Seat Backrest
- with CODE (223b) Electrically adjustable rear bench seat

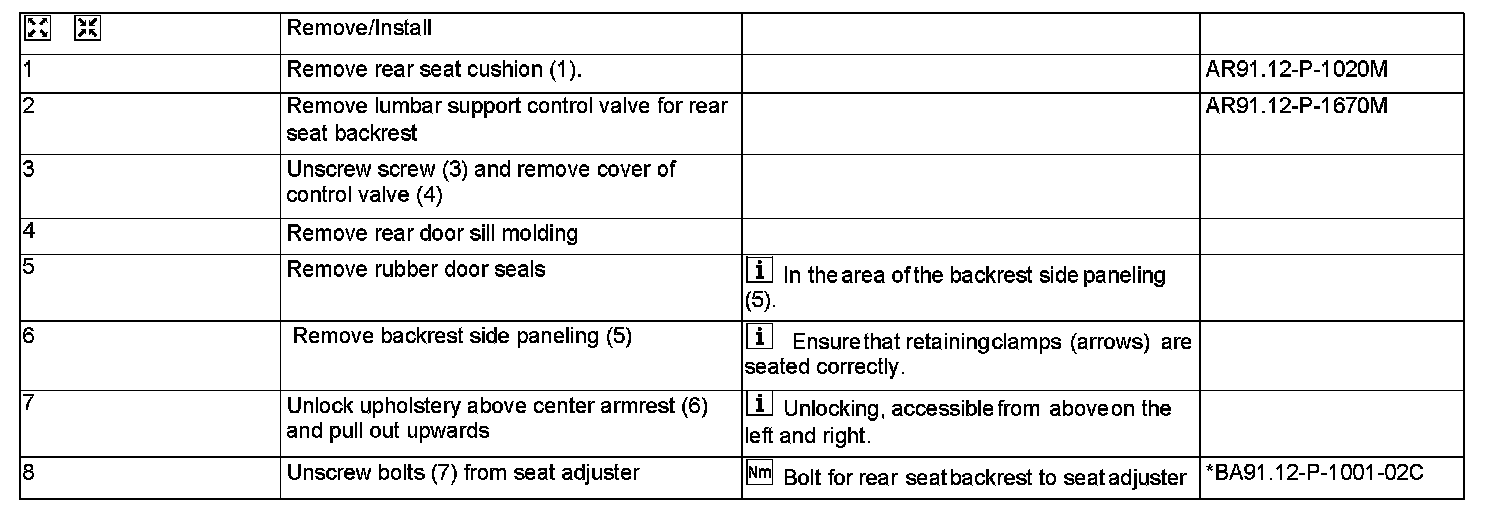

Part 1:

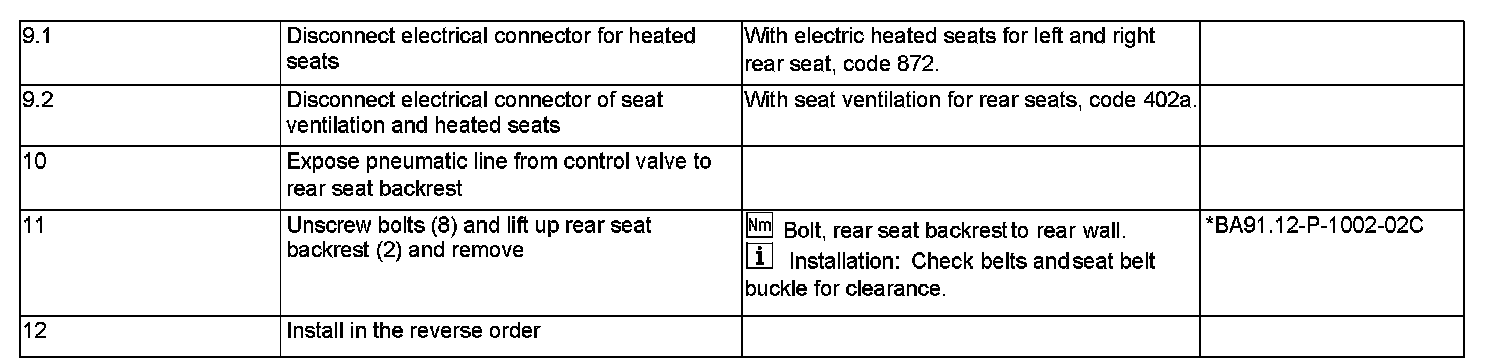

Part 2:

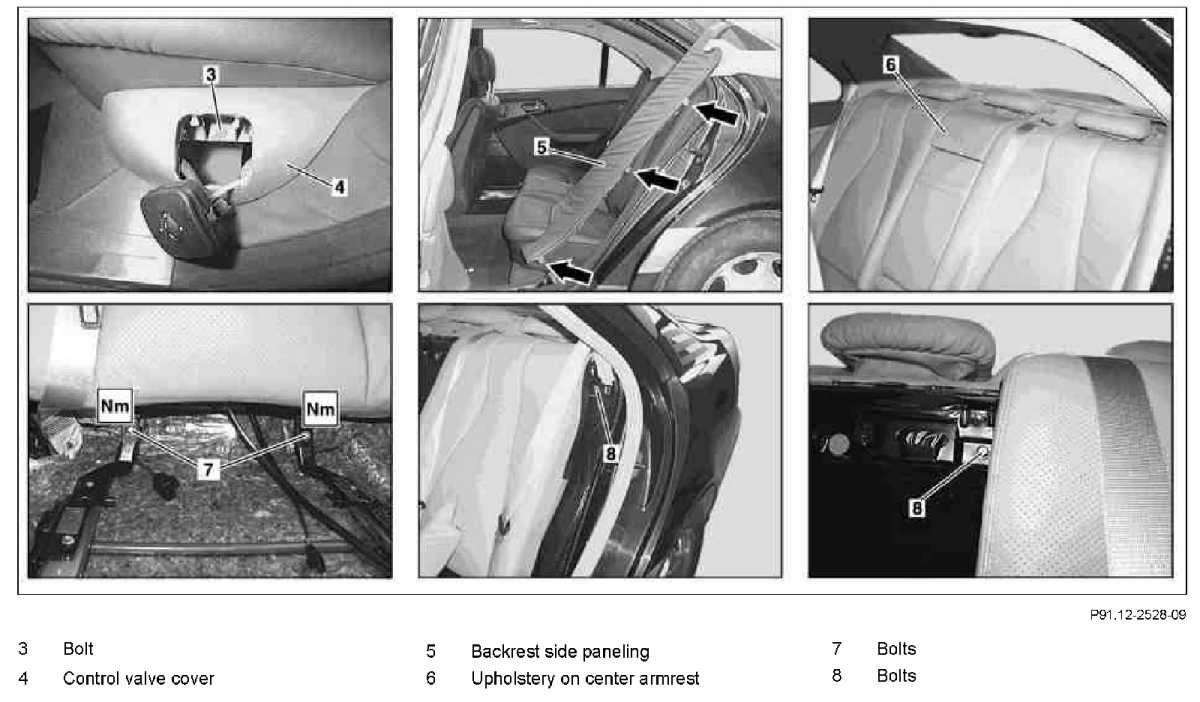

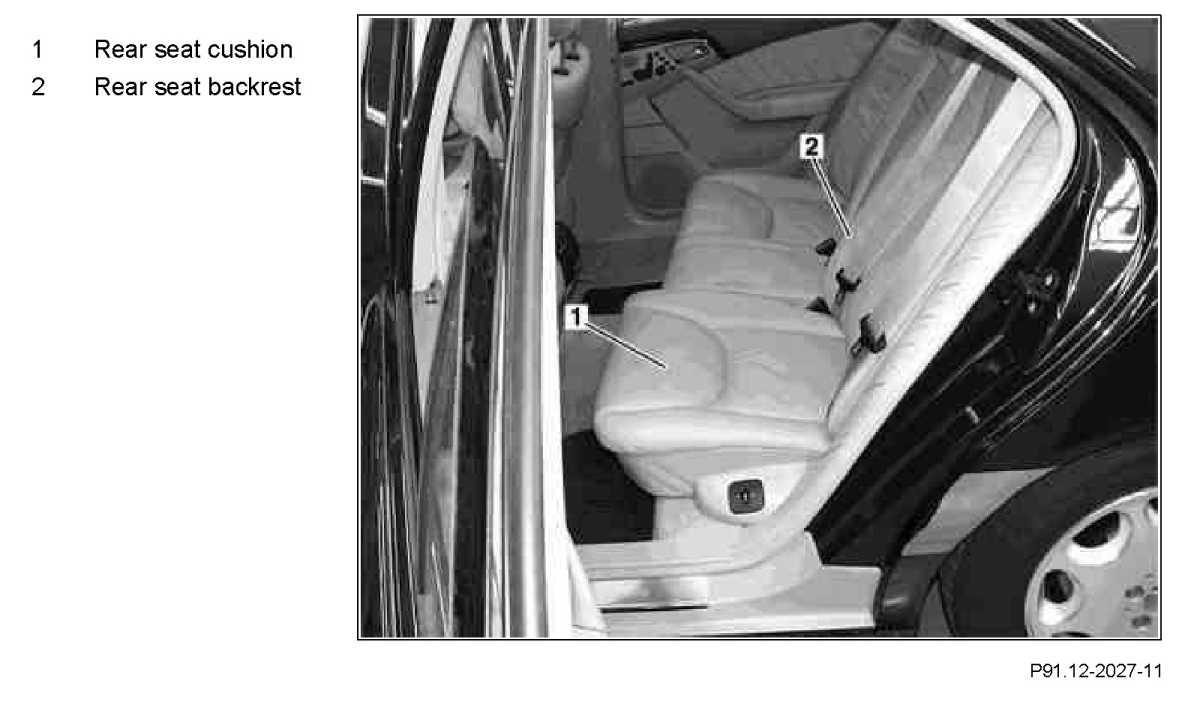

Rear Seat Backrest

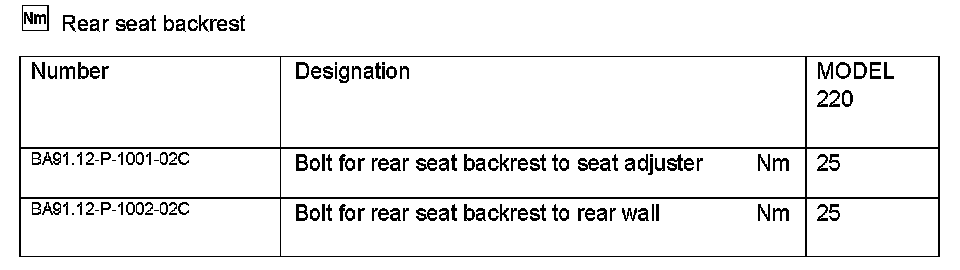

Rear Seat Backrest:
