AR91.29-P-1440MA Remove/Install Rear Seat Motor

AR91.29-P-1440MA Remove/Install Rear Seat Motor
- with CODE (224c) Electrically Adjustable Rear Single Seats, with Seat Ventilation, Seat Heater and Memory Package







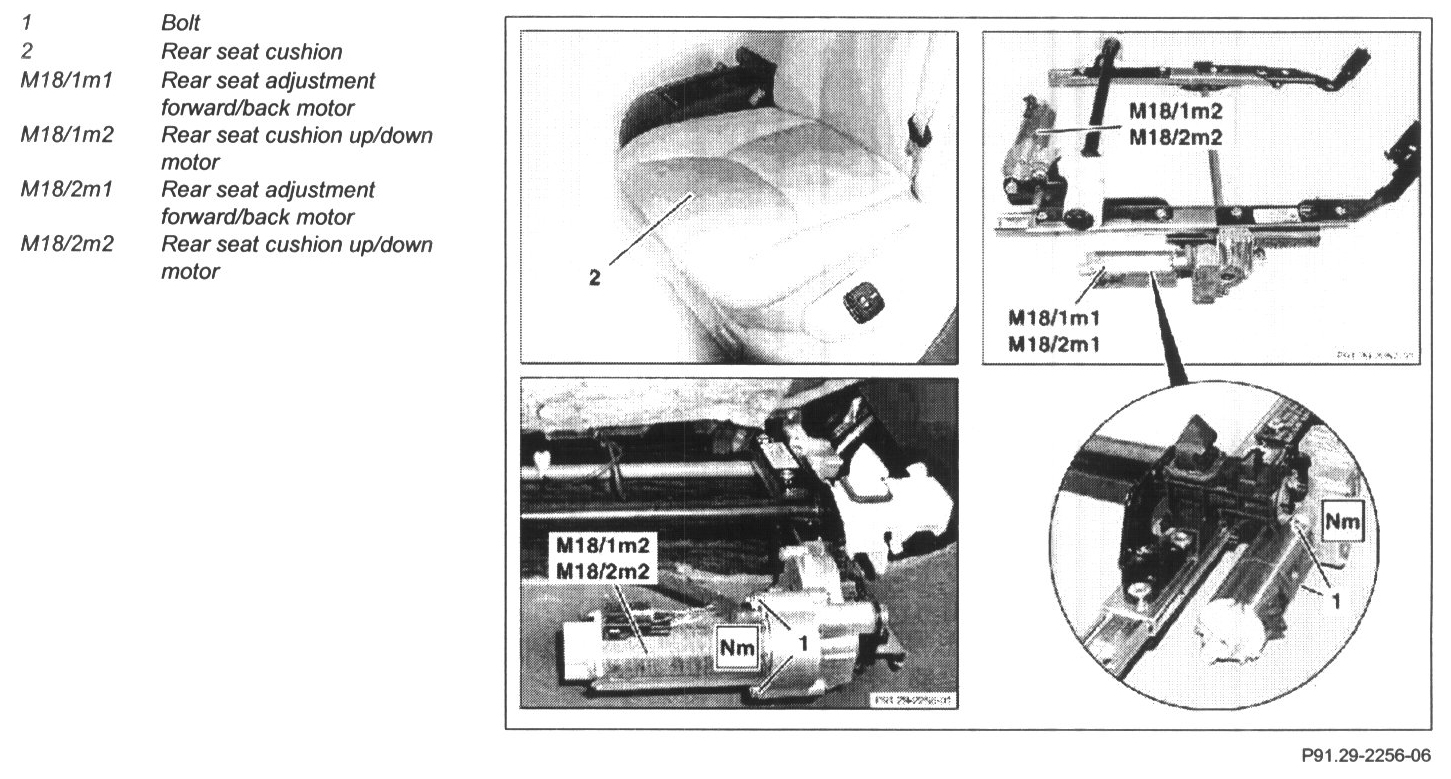

1 Remove seat adjustment device on rear seat
2 Remove electrical connector from rear seat adjustment forward/back motor (M18/1m1, M18/2m1)

NOTE: Only if replacing rear seat adjustment forward/back motor (M18/1m1, M18/2m1).

3 Unscrew bolt (1, 2 pcs.) from rear seat adjustment forward/back motor (M18/1 m1, M18/2m1) and remove motor
- Internal torx set: See "Special Tools" below.

NOTE: Only if replacing rear seat adjustment forward/back motor (M18/1m1, M18/2m1).

- Bolt of seat adjustment motor: 4 Nm

4 Remove electrical connector from rear seat cushion angle adjustment up/down motor (M18/1m2, M18/2m2)

NOTE: Only if replacing rear seat cushion angle adjustment up/down motor (M18/1m2, M18/2m2)

5 Unscrew bolt (1, 2 pcs.) from rear seat cushion angle adjustment up/down motor M18/1m2, M18/2m2) and remove motor
- Internal torx set: See "Special Tools" below.

NOTE: Only if replacing rear seat cushion angle adjustment up/down motor (M18/1m2, M18/2m2).

- Bolt of seat adjustment motor: 4 Nm

6 Install in the reverse order
7 Perform function check on electric seat adjustment.


Special tools

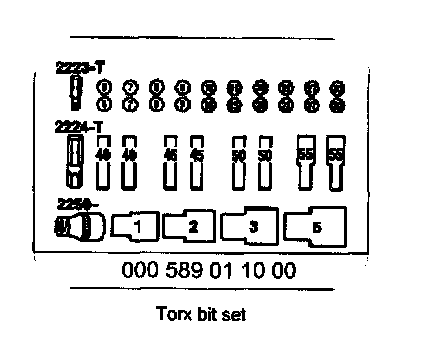

Torx Bit Set P/N # 000 589 01 10 00:
