AR91.29-P-1440M Remove/Install Rear Seat Motor

AR91.29-P-1440M Remove/Install Rear Seat Motor
- with CODE (223b) Electrically Adjustable Rear Bench Seat







1 Remove seat adjustment device on rear seat

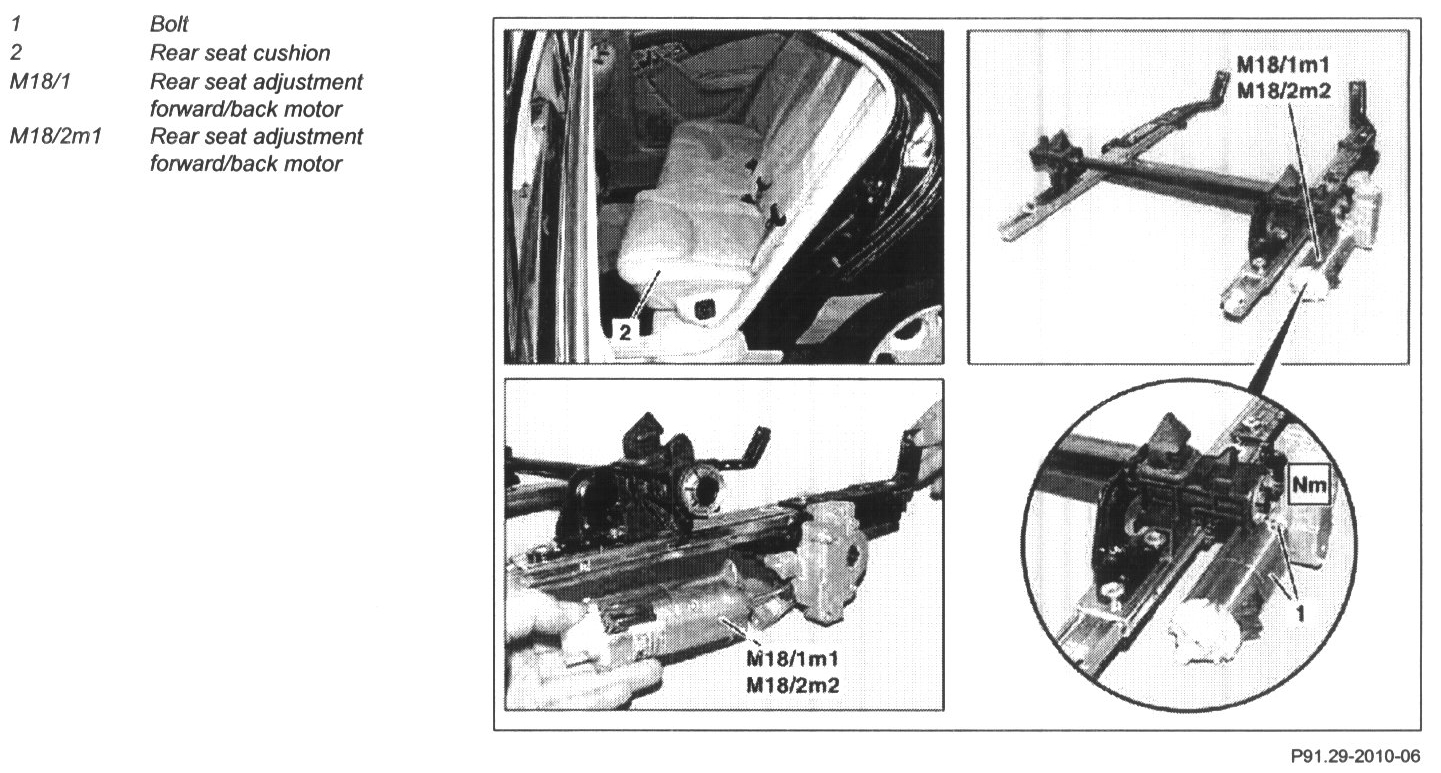

2 Disconnect electrical connection from rear seat adjustment forward/back motor (M18/1m1, M18/2m1).
3 Unscrew bolts (1, 2 pieces) from rear seat adjustment forward/back motor (M18/1m1, M18/2m1) and remove motor.
- Internal torx set: See "Special Tools" below.

- Bolt for seat adjustment motor: 4 Nm

4 Install in the reverse order
5 Perform function check on electric seat adjustment.

Special Tools

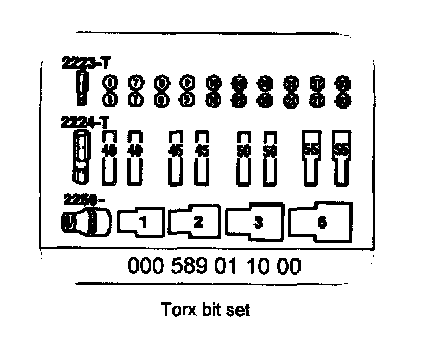

Torx Bit Set P/N # 000 589 01 10 00:
