Front Fender Liner: Service and Repair
AR88.10-P-1300M Removing and Installing Inner
Fender
In Front Fender

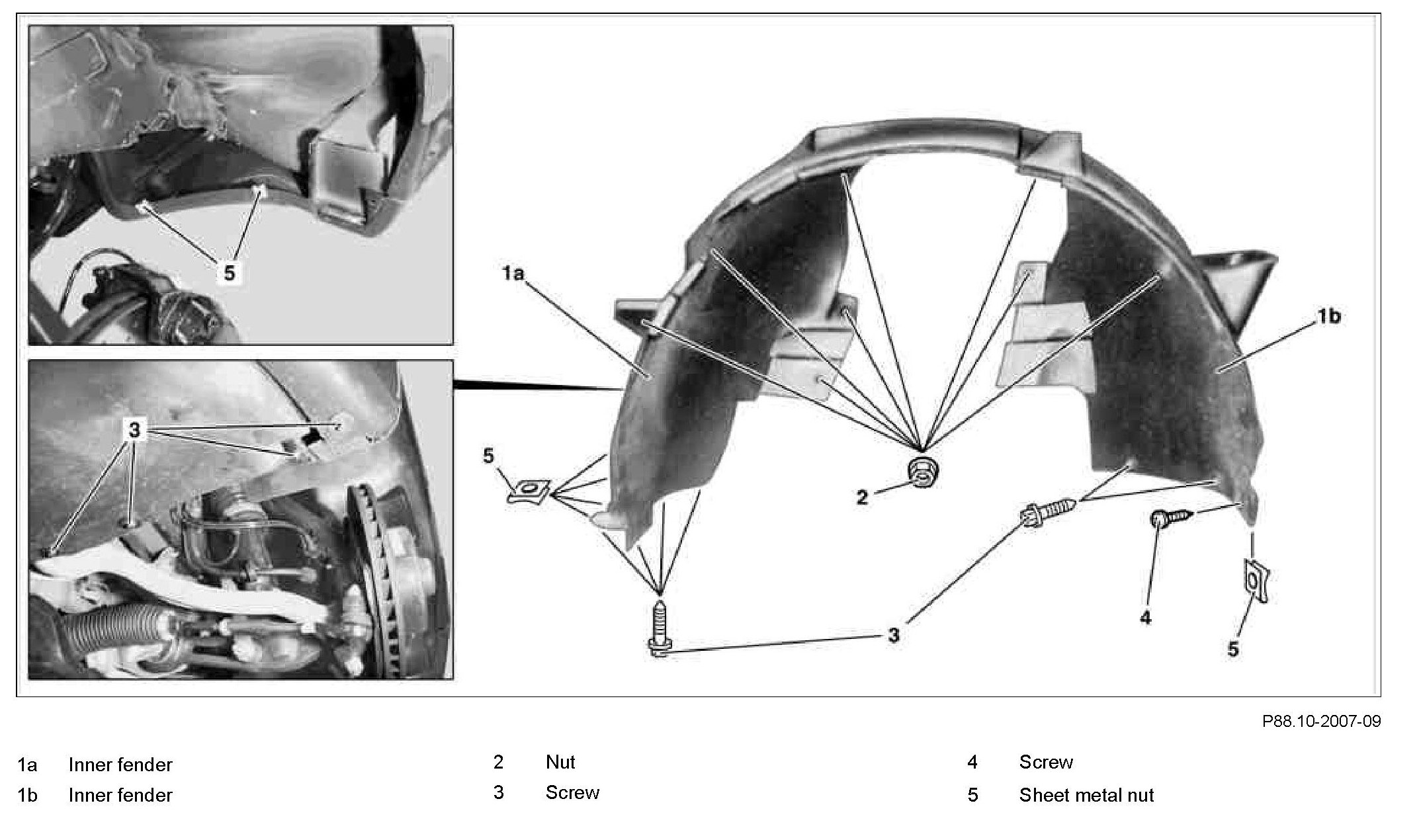

Component Identification:

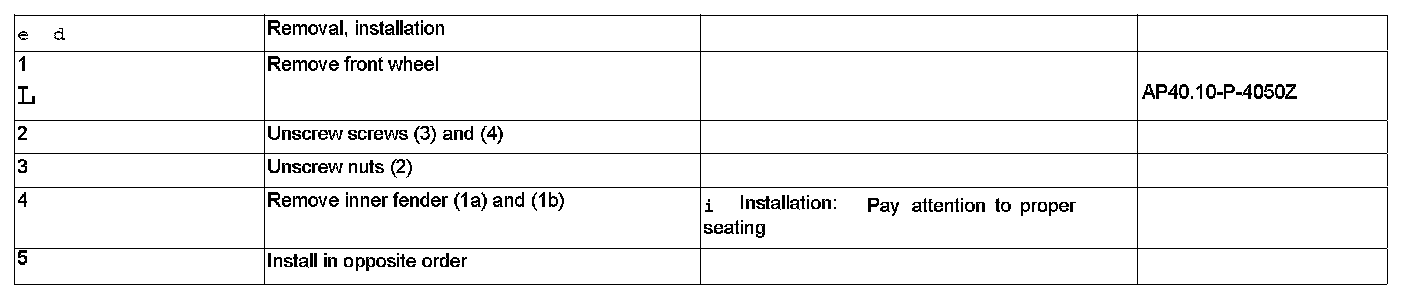

Steps 1 - 5:
