Home
>>
Mercedes Benz
>>
2002
>>
S 430 (220.170) V8-4.3L (113.941)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Hood Latch
>>
Testing and Inspection
Hood Latch: Testing and Inspection
AP88.40-P-8851M Inspect Engine Hood Lock and Safety Hook

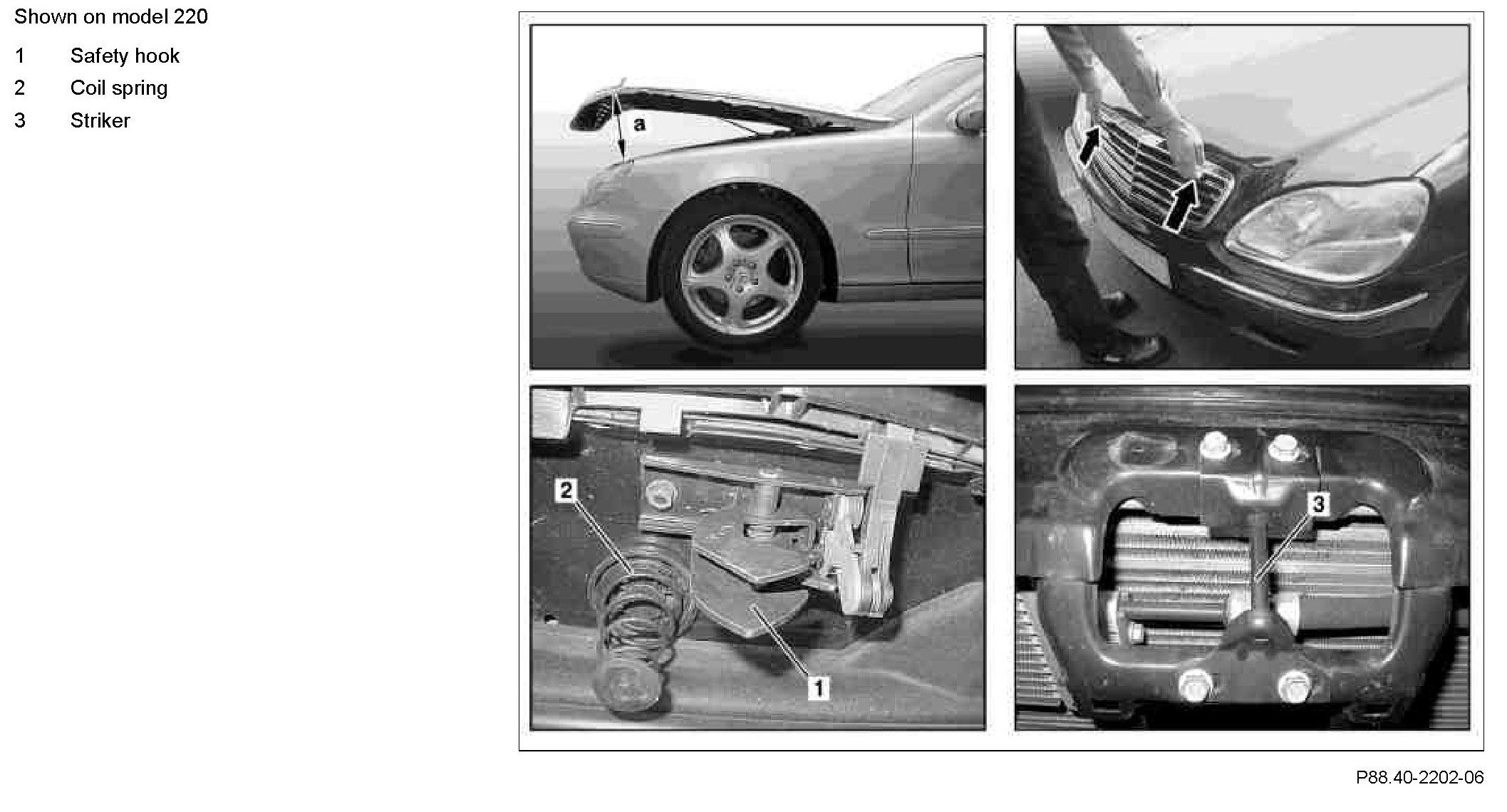

Component Identification:

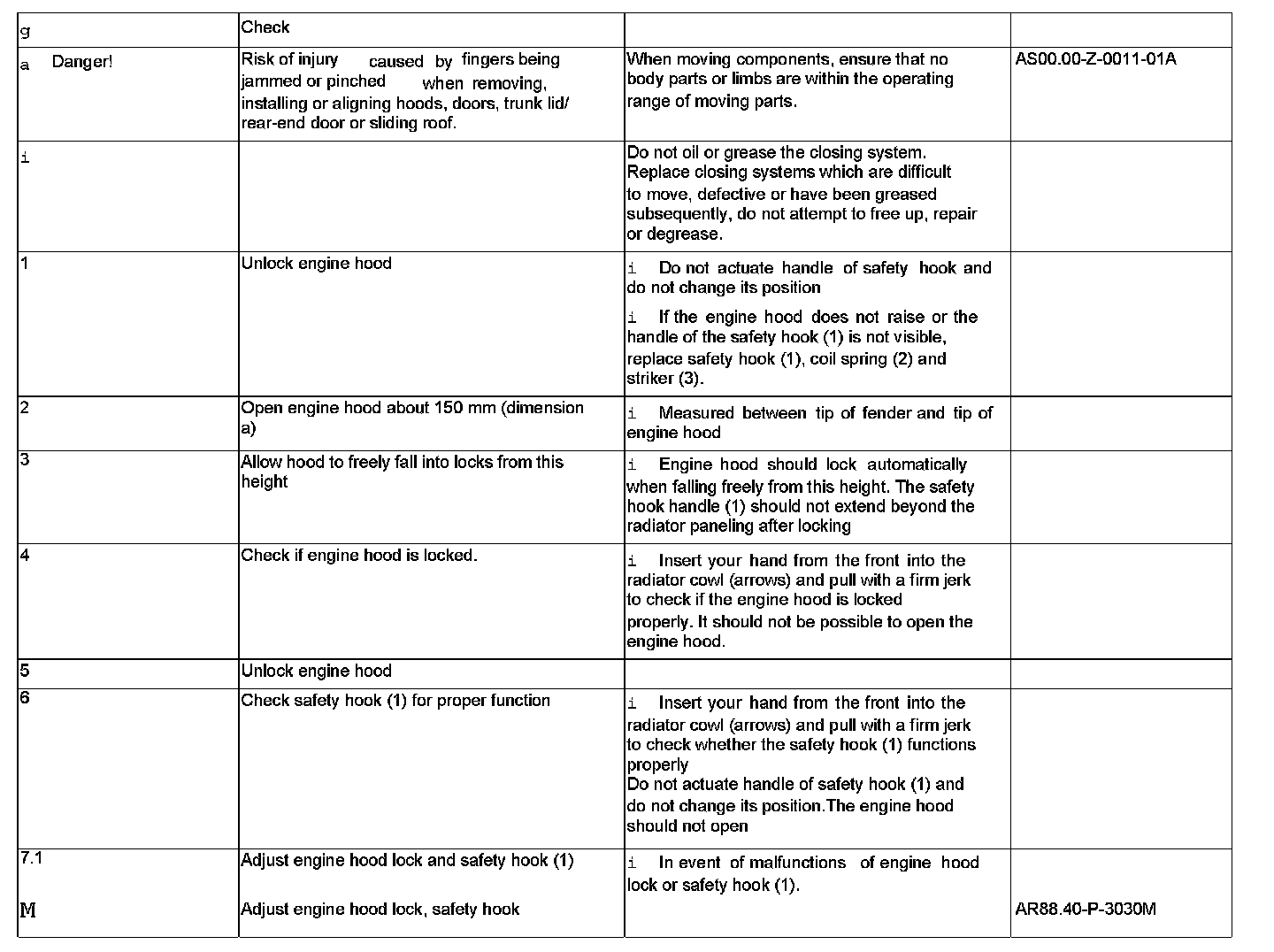

Steps 1 - 7.1:
