Hood Latch: Adjustments
AR88.40-P-3030M Adjust Engine Hood Lock, Safety Hook

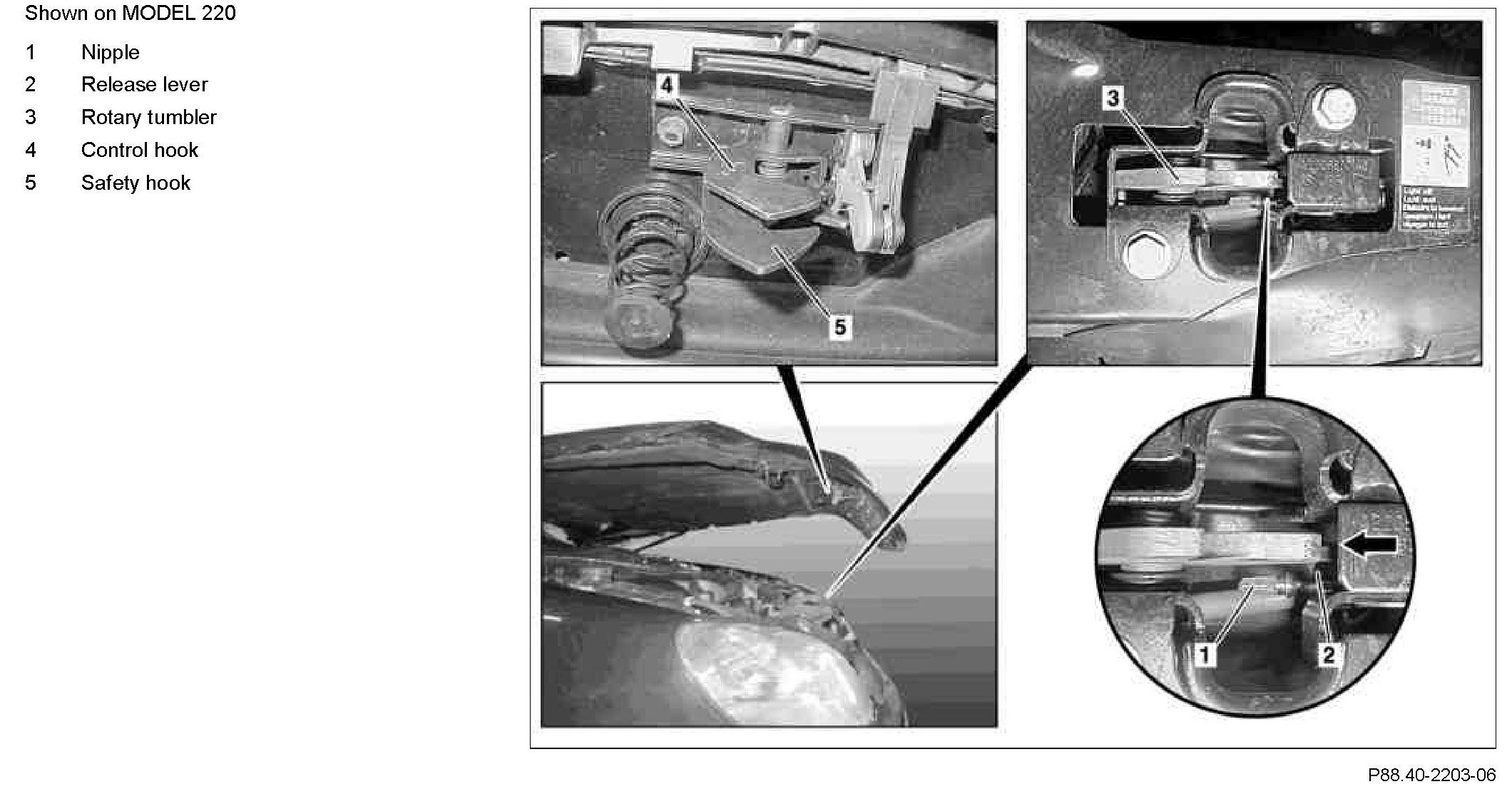

Component Identification:

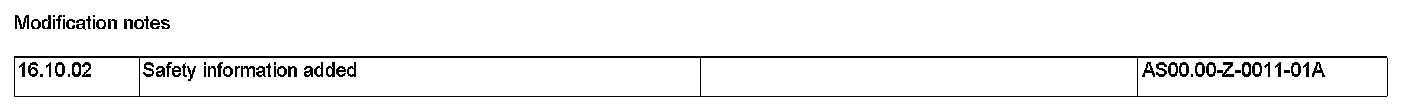

Modification Notes:

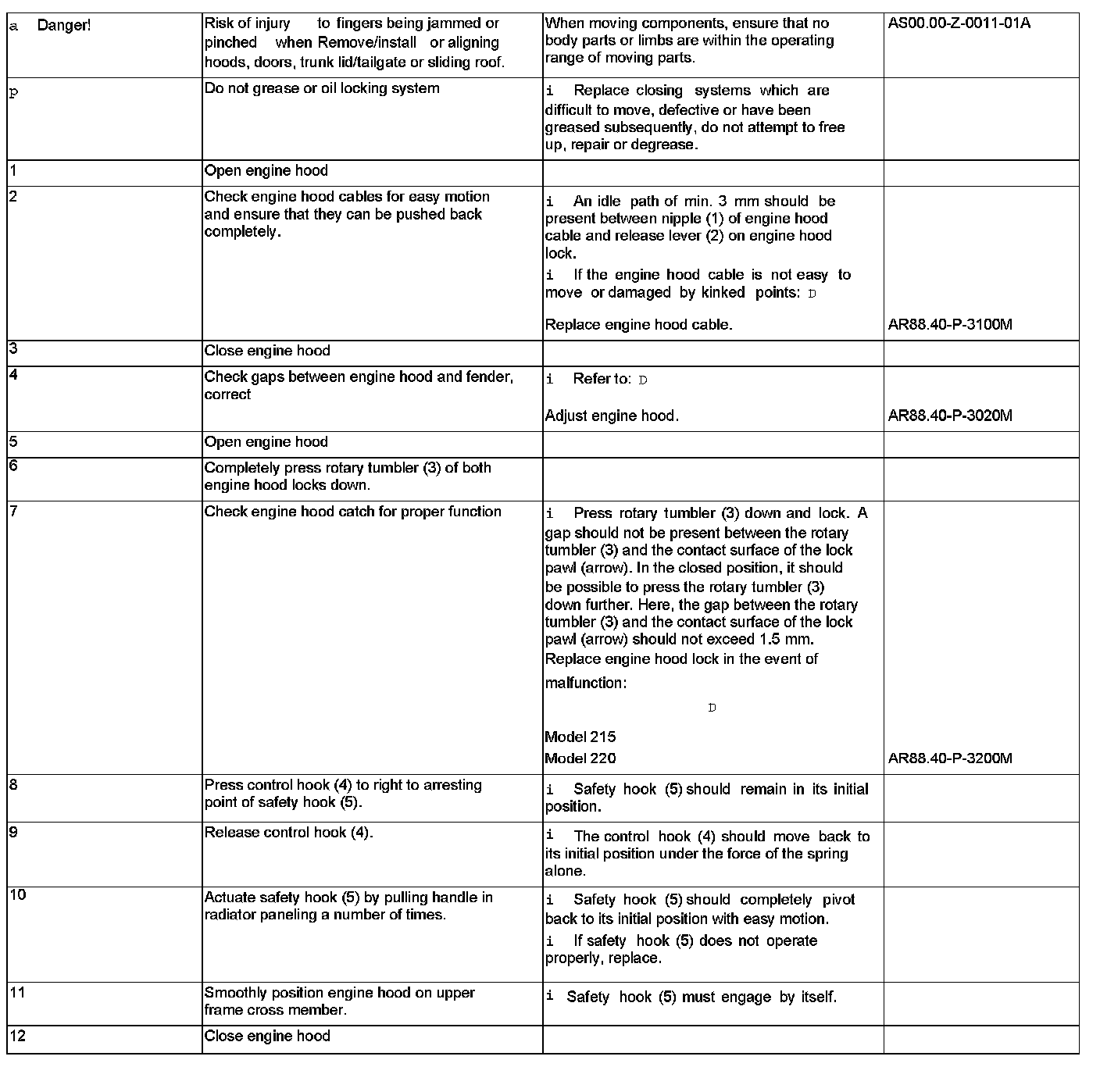

Step 1 - 12:
