Rear Door Latch: Service and Repair

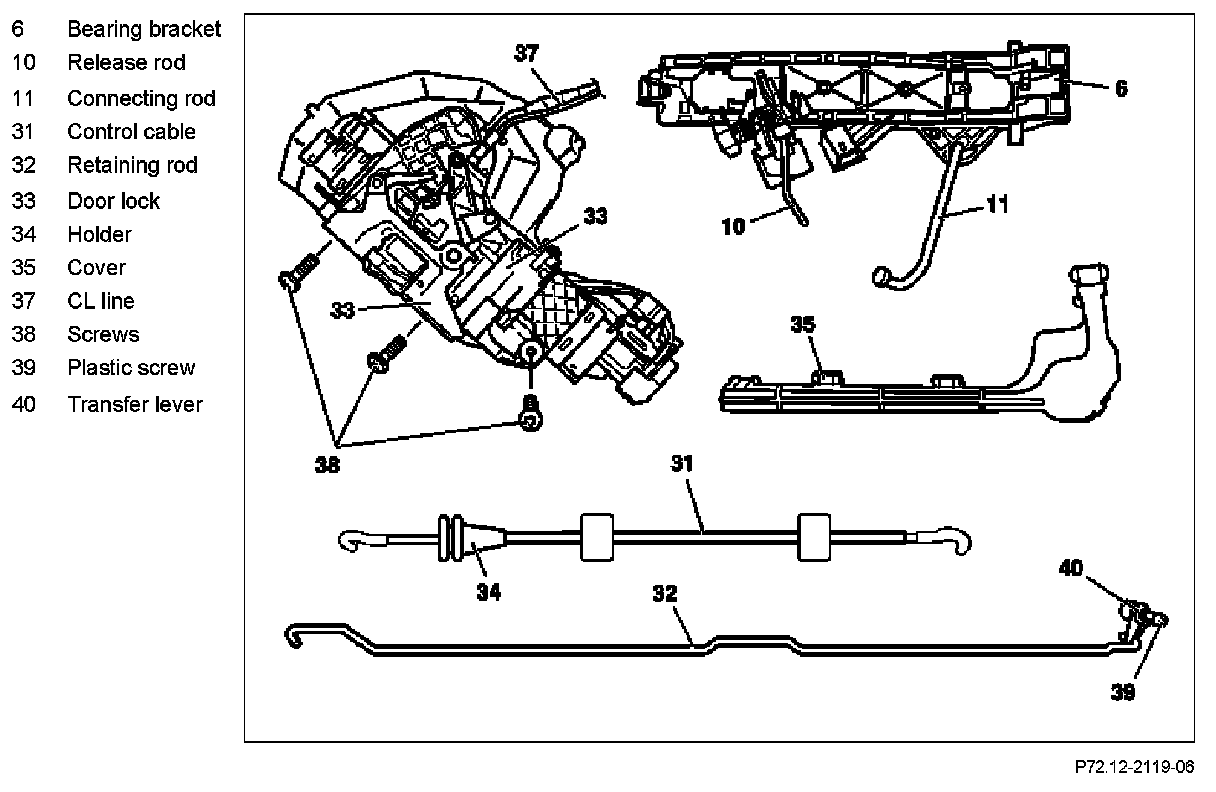

AR72.12-P-2510MA Remove/Install Door Lock on Rear Door

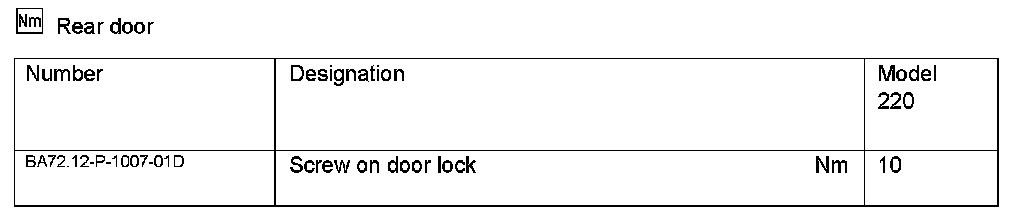

Rear Door:
Test And Adjustment Values For Front Door:
