AR88.20-P-2200MA Remove/Install Rear Bumper



AR88.20-P-2200MA Remove/Install Rear Bumper
- with CODE (550) Trailer hitch
- except CODE (772) AMG Styling package - front spoiler, side skirts and rear apron

Component Identification:




Component Identification:

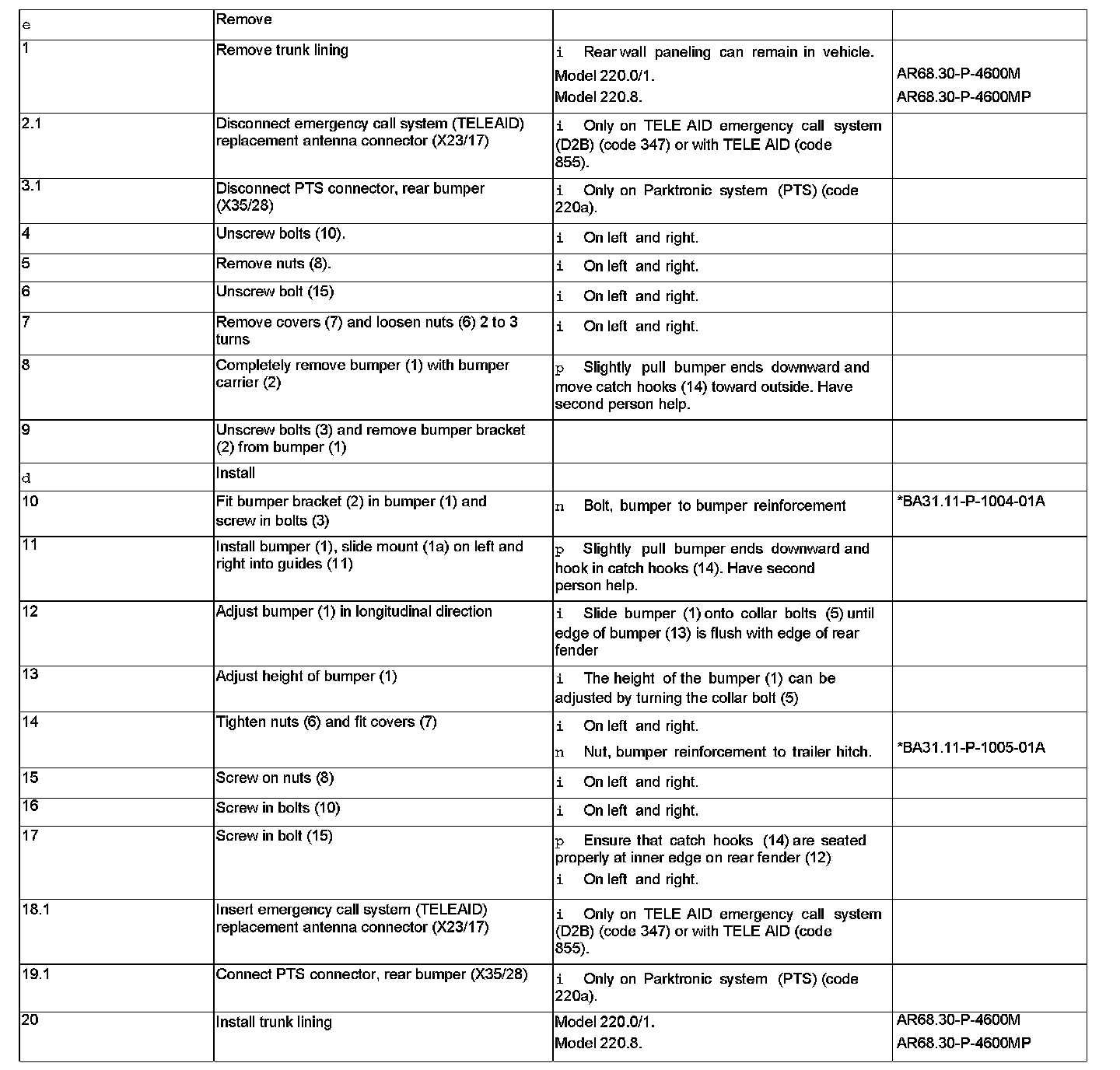

Steps 1 - 20:




Trailer Hitch Mechanical System:
