Front Bumper: Service and Repair
AR88.20-P-2000M Remove/Install Front
Bumper

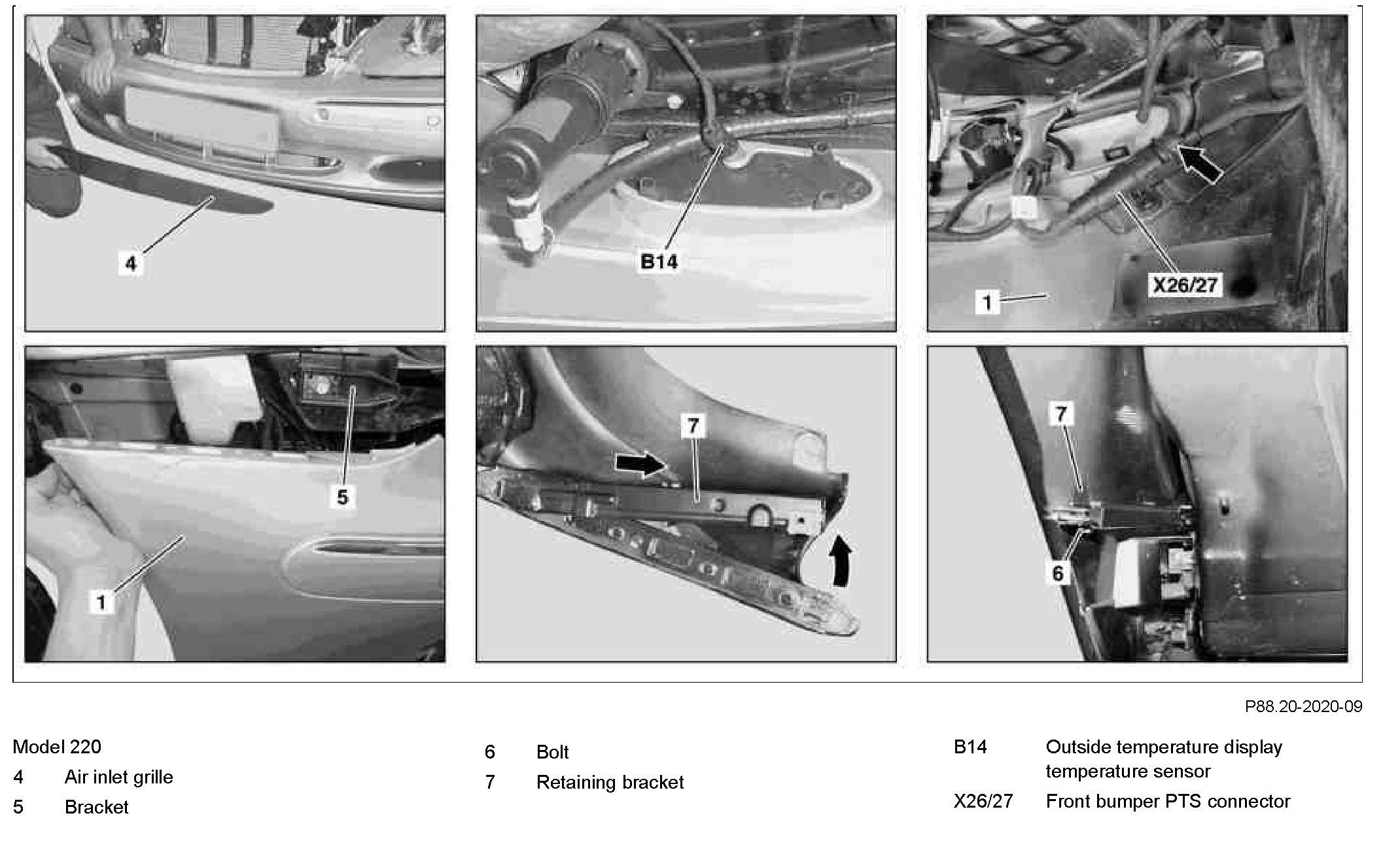

Component Identification:

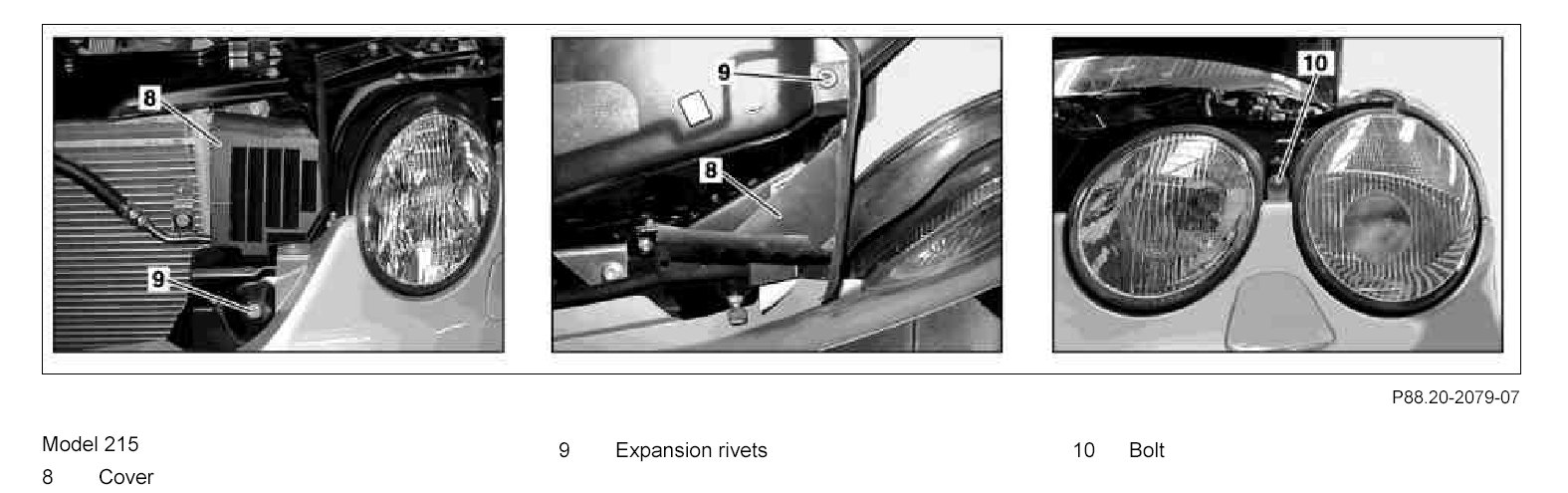

Component Identification:

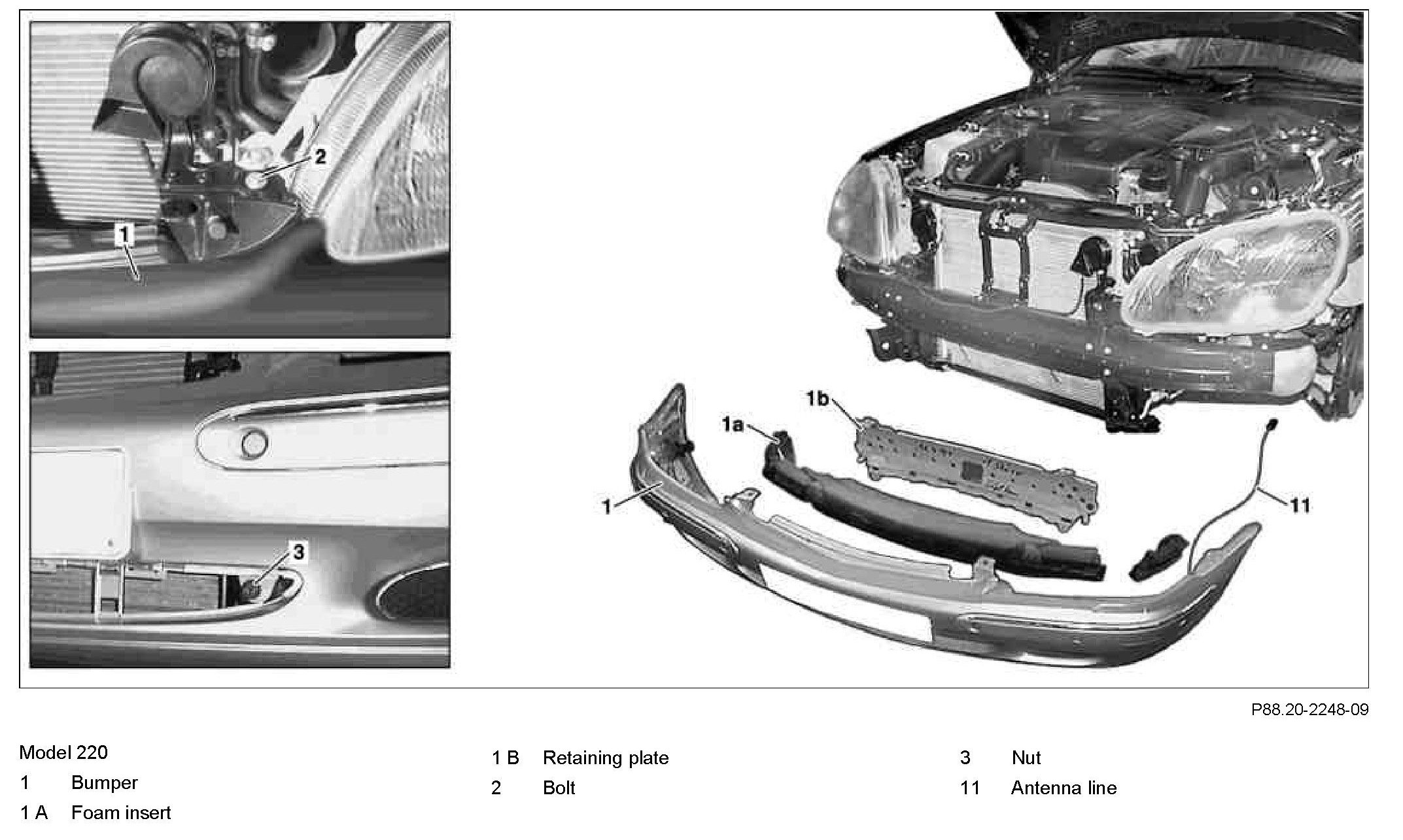

Component Identification:

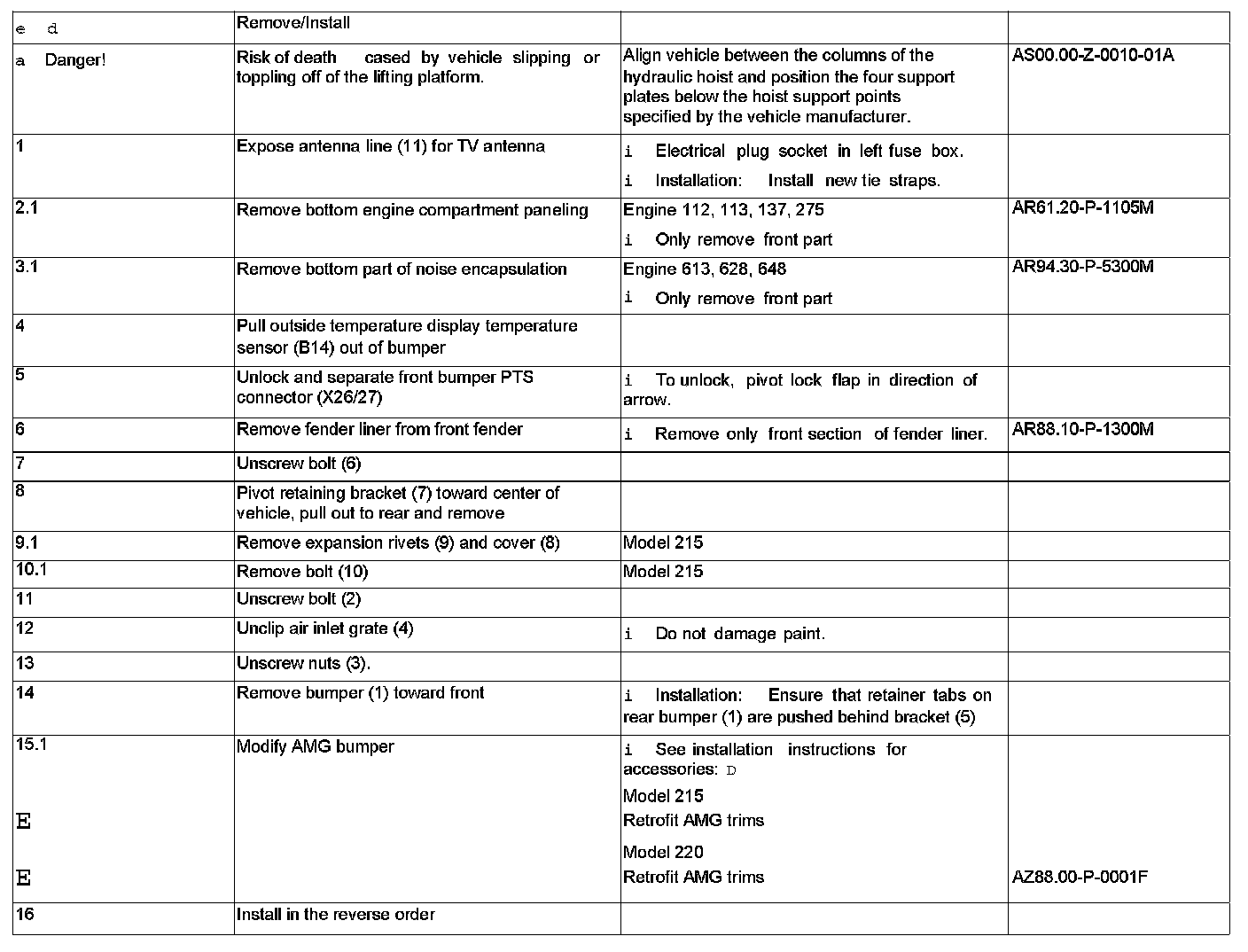

Steps 1 - 16:
