Activated Charcoal Canister, Location

Activated Charcoal Canister, Position

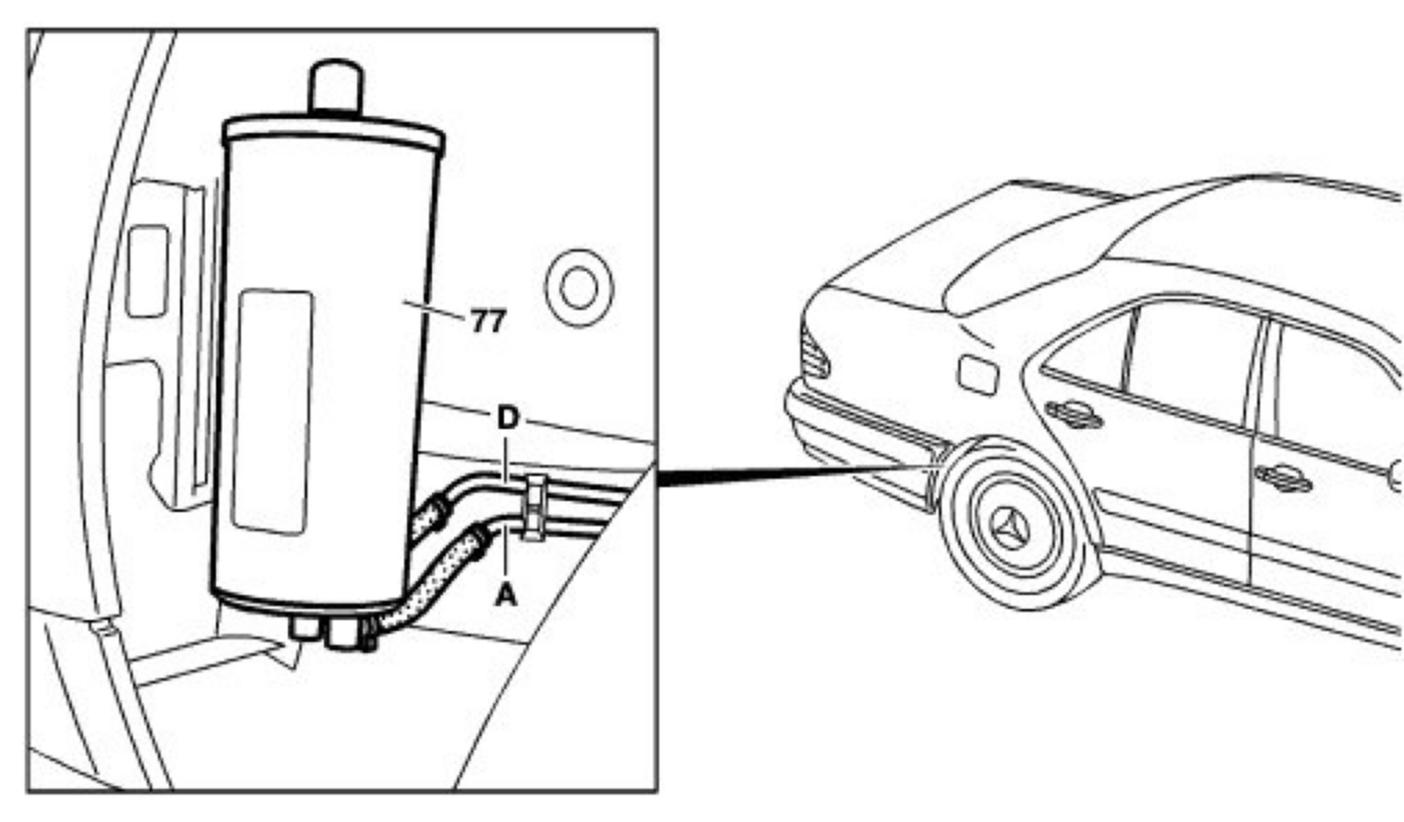

77 Activated charcoal canister
A Activated charcoal canister-purge control valve line
D Vent valve-activated charcoal canister line

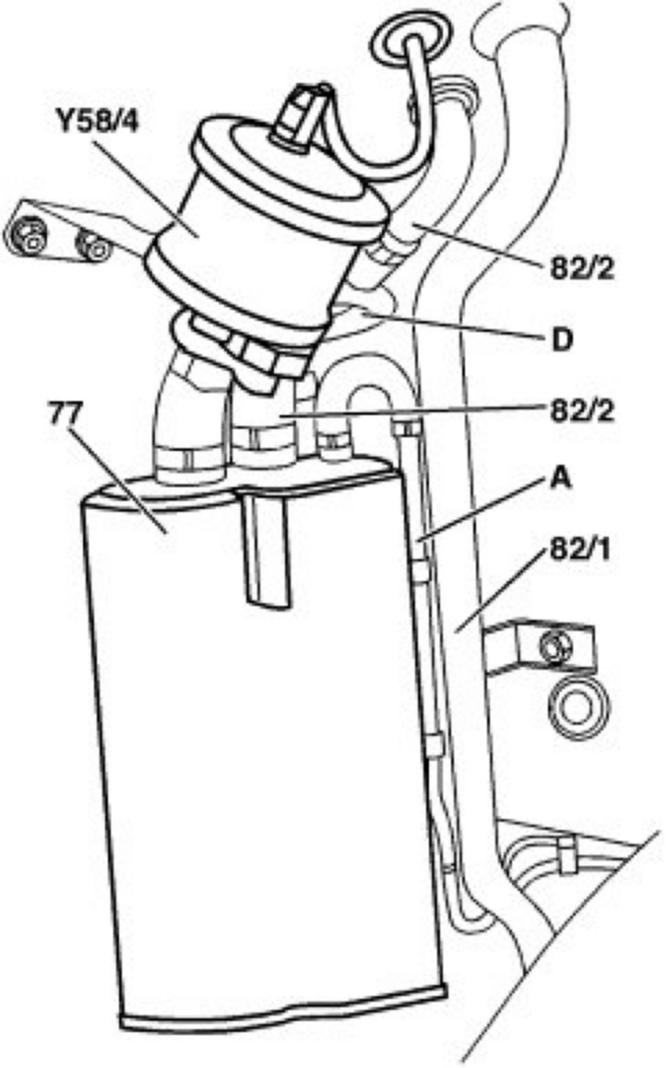

Model 210 (USA) with ORVR
77 Activated charcoal canister
82/1 Fuel overflow line
82/2 ORVR vent line
Y58/4 Activated charcoal filter shutoff valve
A Activated charcoal canister-purge control valve line
D Line from fuel tank to activated charcoal canister
