E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>

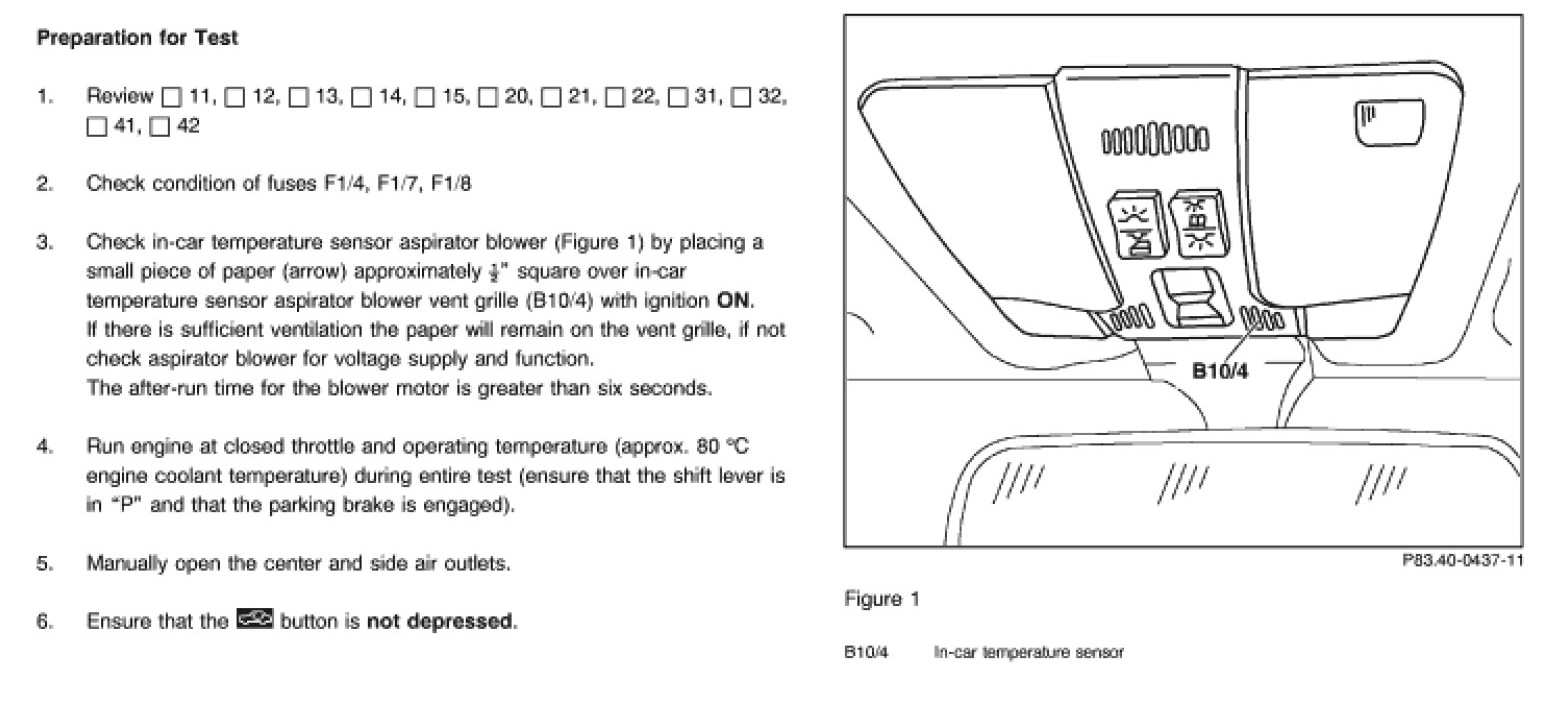

Initial Inspection (Function Test [11])
Initial Inspection (Function Test [11])
Air Conditioning (A/C)
Models 210
Function Test [11]

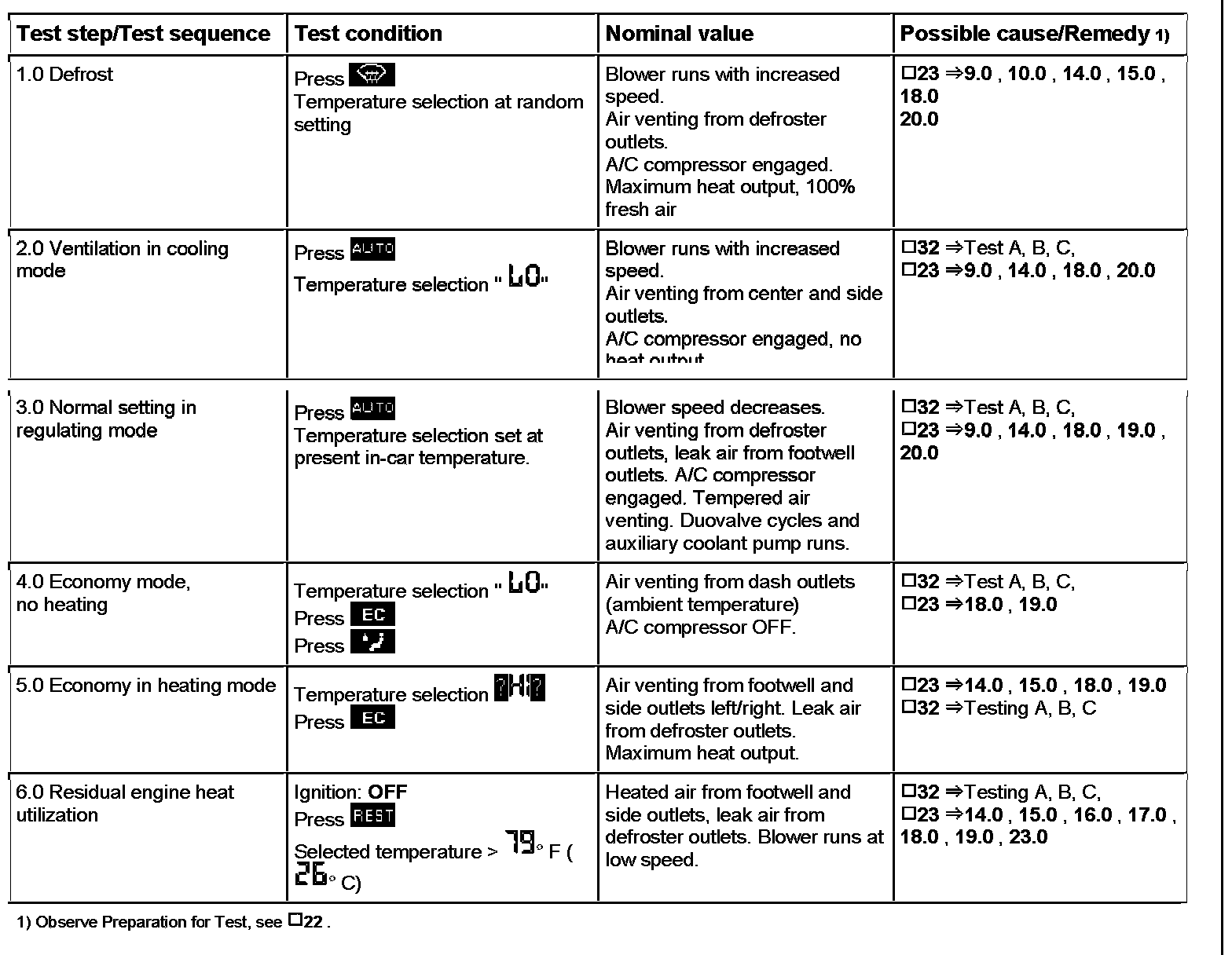

Test Steps 1.0 - 6.0:
