GF83.70-P-4008A Fuel Metering Pump, Location/Task

GF83.70-P-4008A Fuel Metering Pump, Location/Task
MODEL 168 with ENGINE 668.940 with heater booster
MODEL 202 with ENGINE 611.960 with heater booster
MODEL 210 with heater booster
MODEL 220 with ENGINE 613.960 with heater booster
MODEL 220 with ENGINE 628.960 with heater booster
MODEL 129 as of 1.6.97
- with CODE (228) Stationary heater
MODEL 203, 210, 215, 220, 230
- with CODE (228) Stationary heater
MODEL 463 as of 1.6.94 up to 31.5.12
- with CODE (H12) Auxiliary heater Webasto Tele Thermo Top S
MODEL 209.3
- with CODE (228) Stationary heater

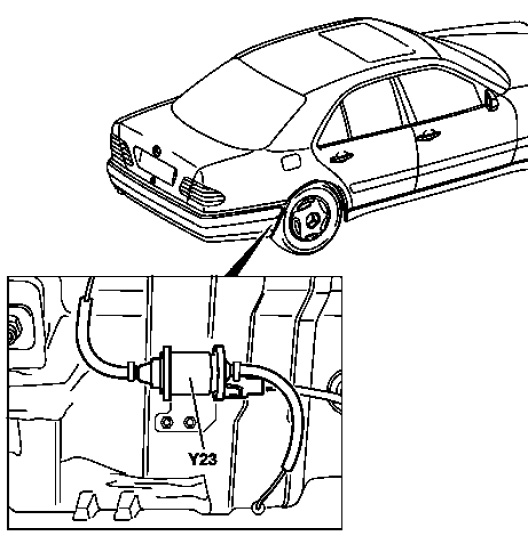

MODEL 202, 203, 209.3, 210, 215, 220, 230, illustrated on MODEL 210





Y23 STH fuel metering pump (MODEL 203, 209.3, 215, 230) STH or ZUH fuel metering pump (MODEL 202, 210, 220)
