AR91.12-P-1745E Remove/Install Armrest on Rear Seat Backrest
AR91.12-P-1745E Remove/Install Armrest on Rear Seat Backrest
AR91.12-P-1745E Removing And Installing Armrest On Rear
Seat Backrest

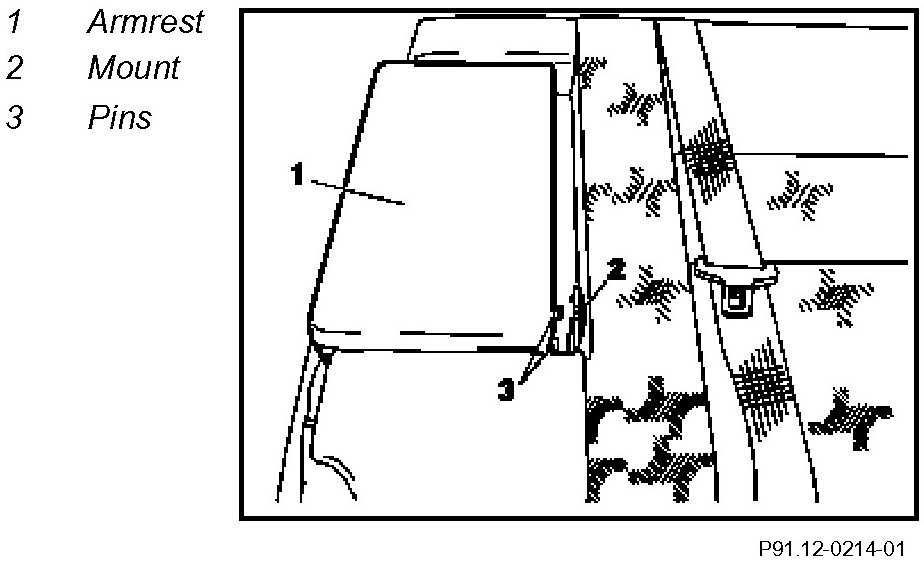

Component Identification:

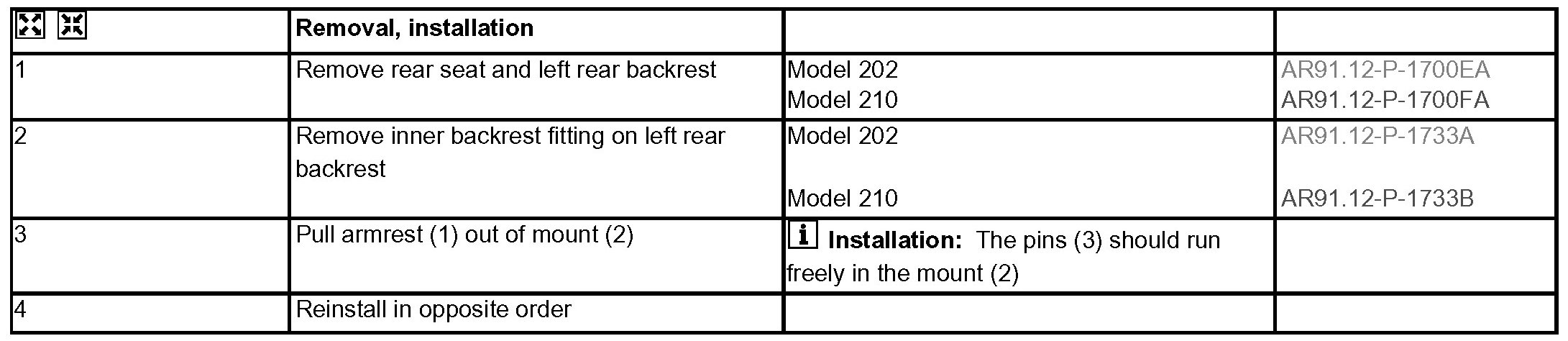

Steps 1 - 4:
