Trunk / Liftgate Hinge: Service and Repair
AR72.20-P-2560B Removing And Installing
Tailgate Hinge
Assembly

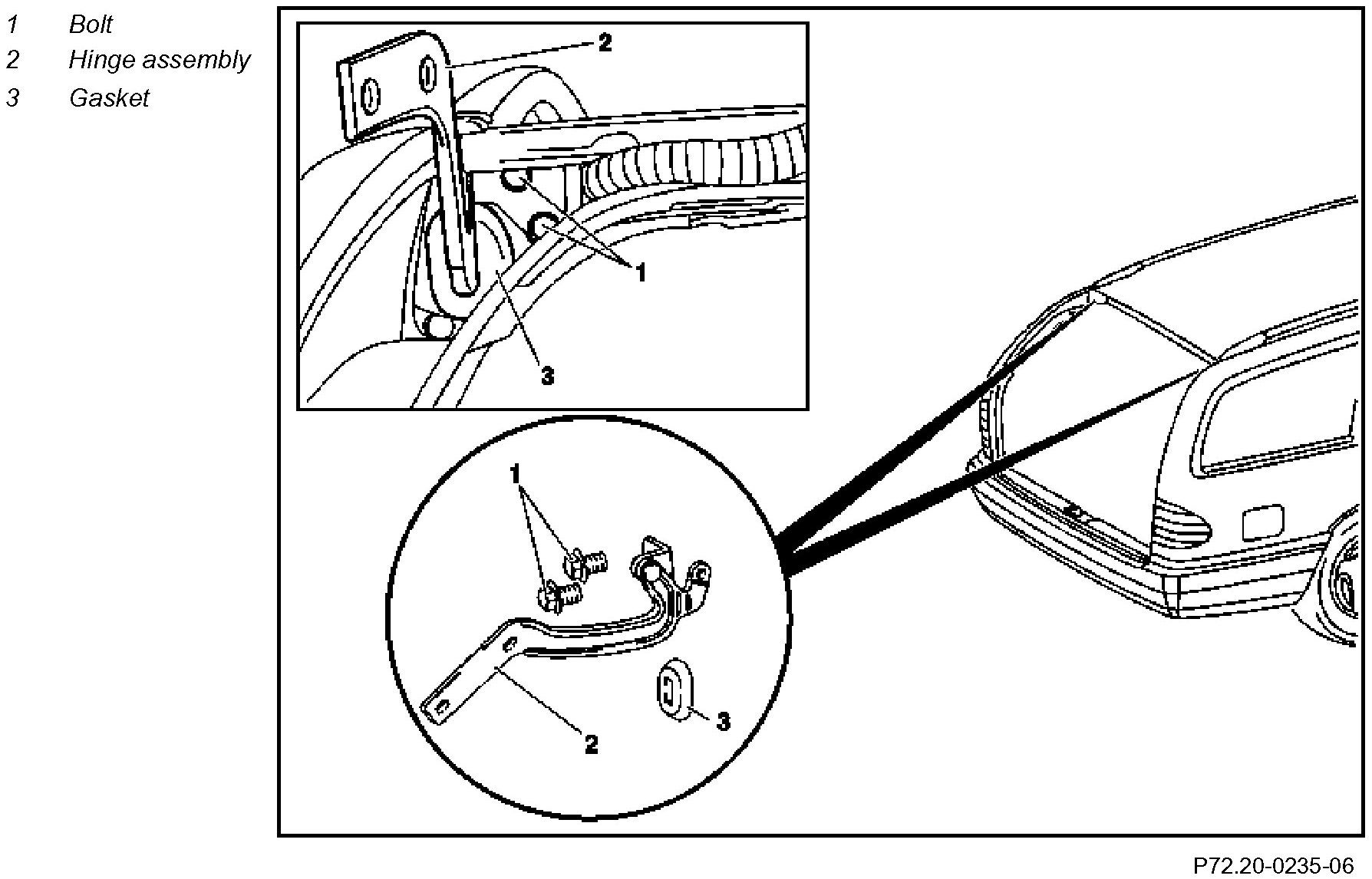

Component Identification:

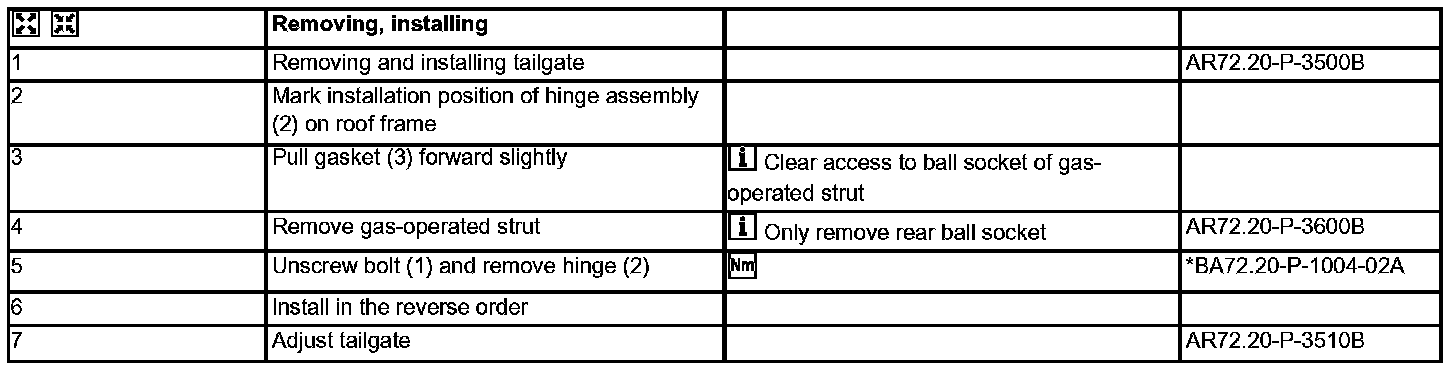

Steps 1 - 7:

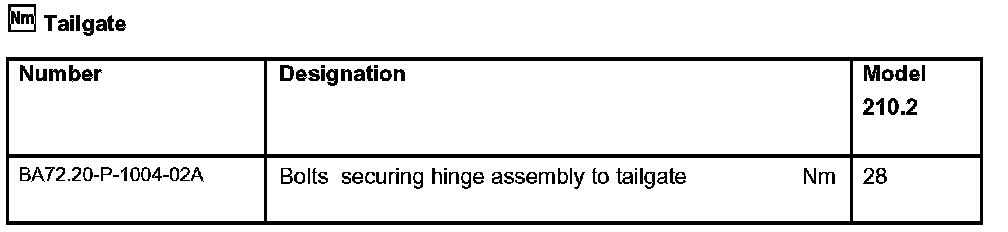

Tailgate:
