E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Power Trunk / Liftgate Lock Actuator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Rear Door Closing Assist

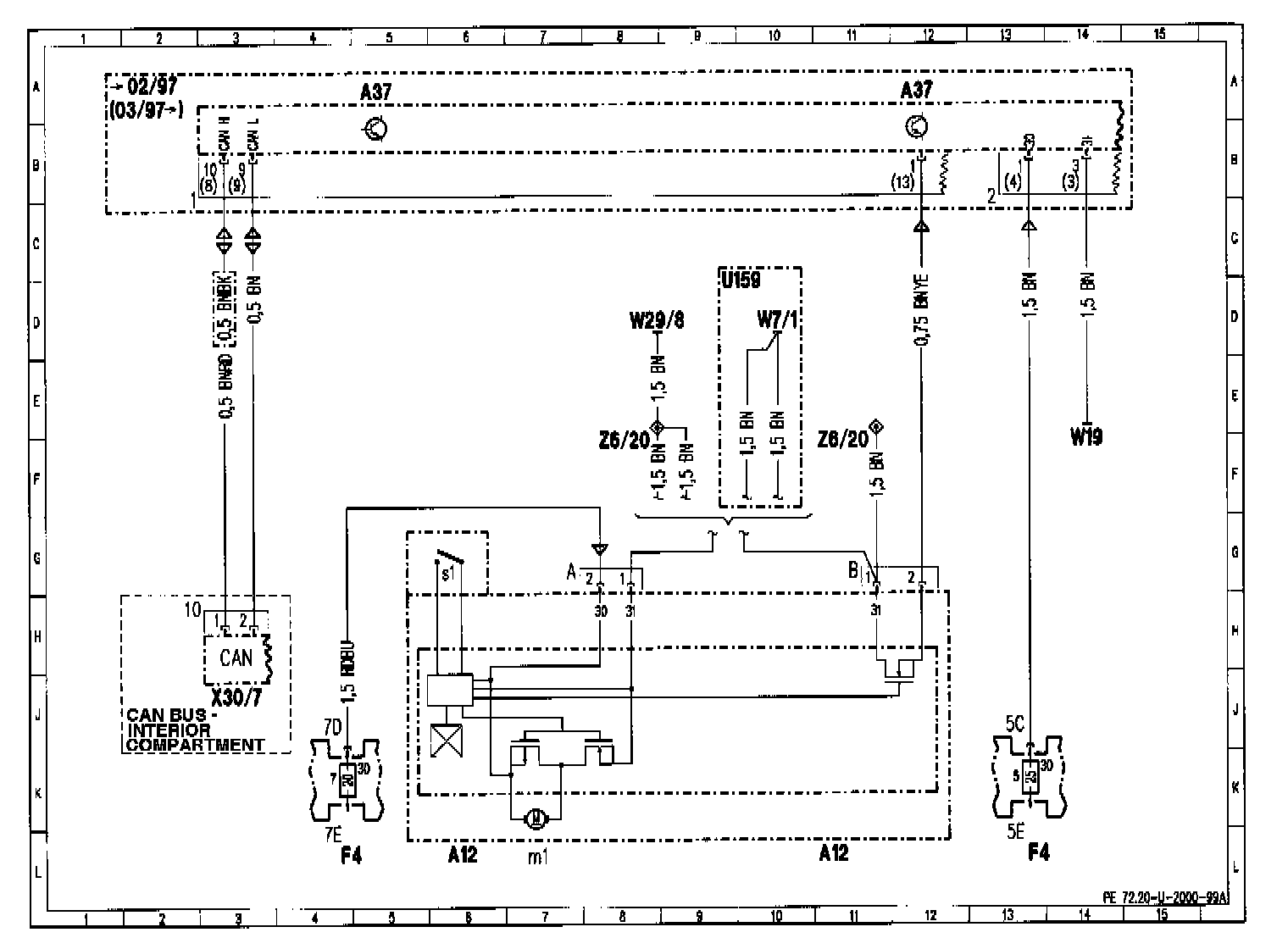

Wiring Diagram:
Component Grid Location:
