Hood Latch: Service and Repair

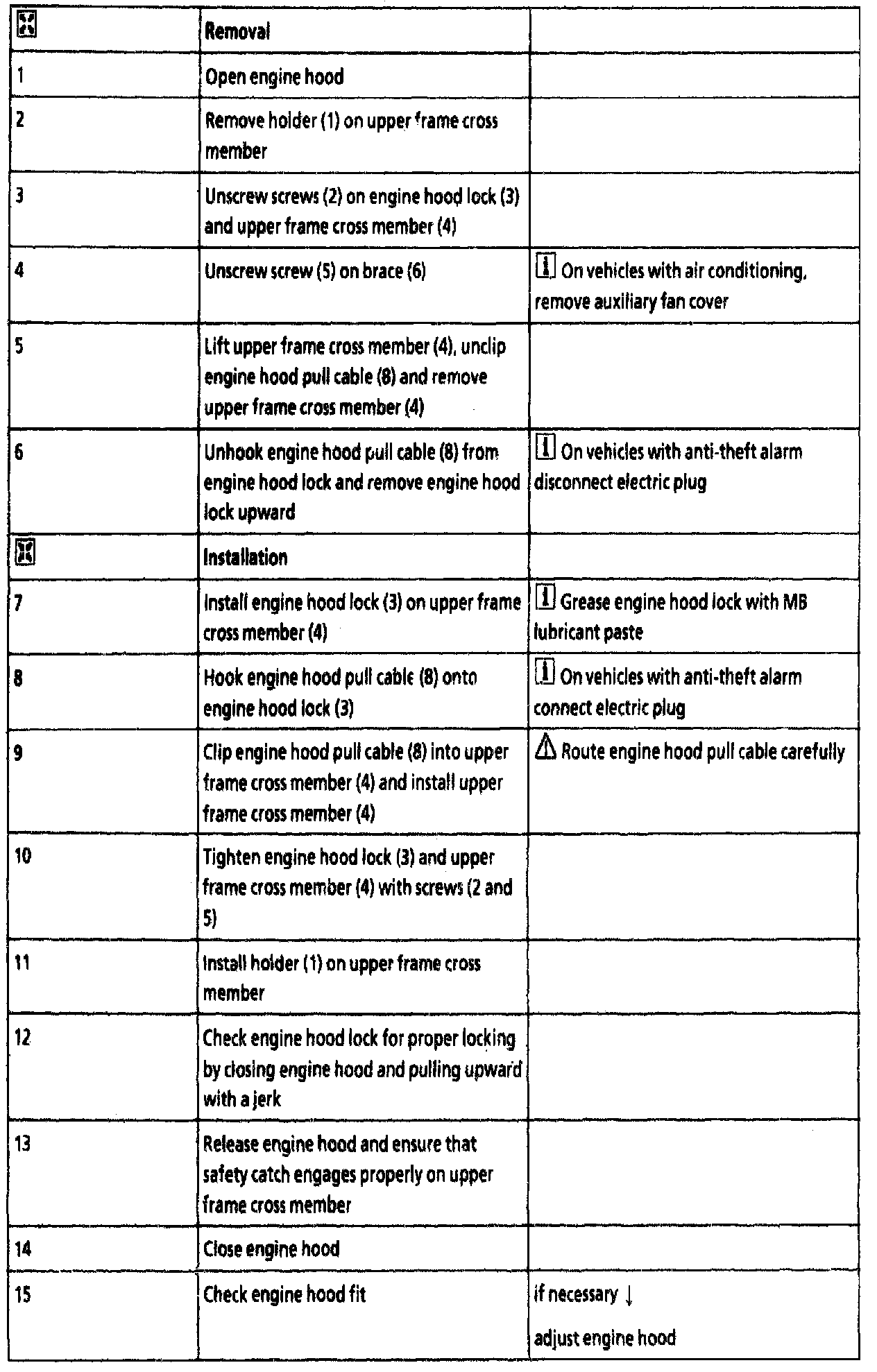

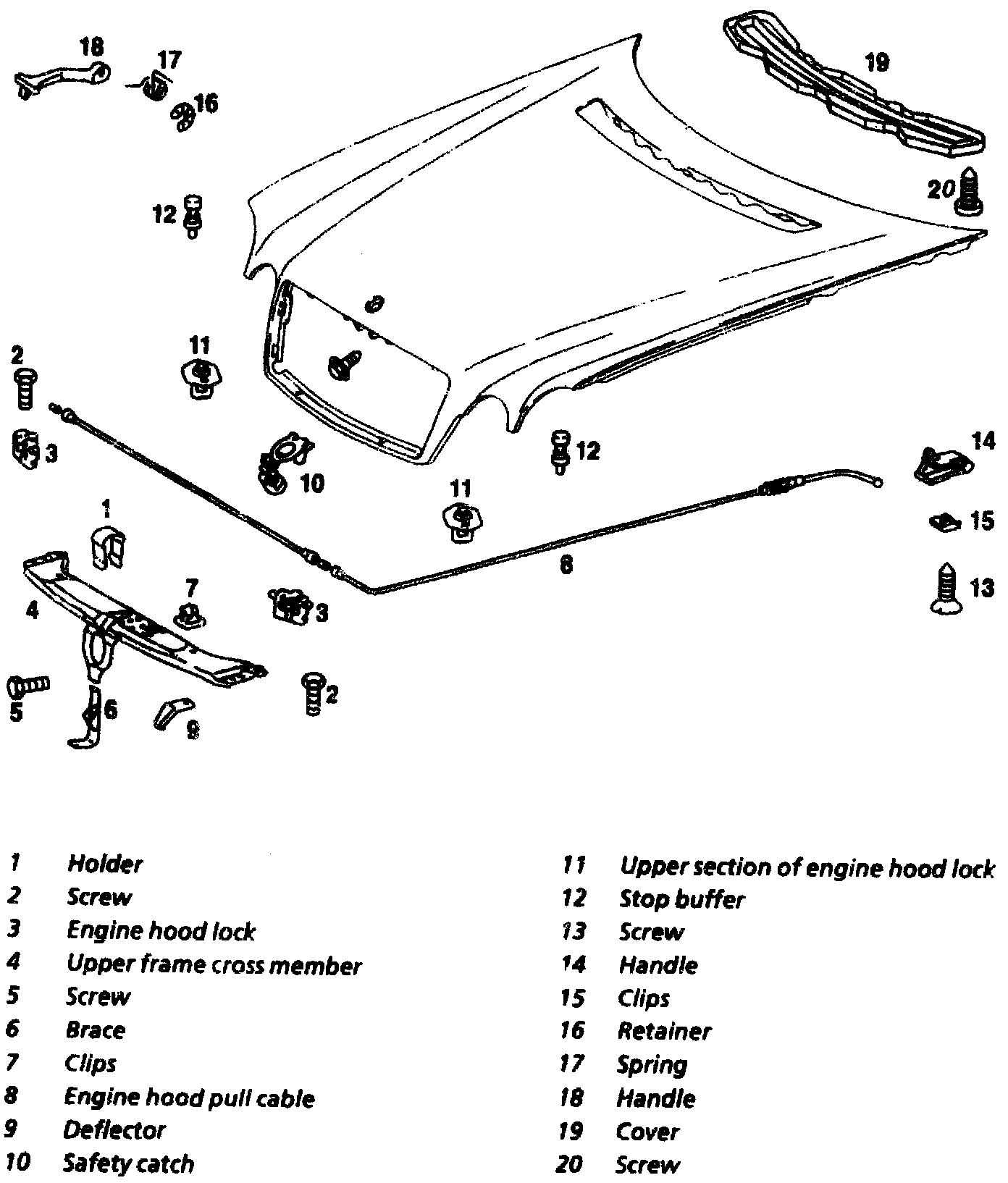

AR88.40-P-3200F Remove/Install Engine Hood Lock












Tightening Specifications
Screws on engine hood lock: 10 Nm
