Rear Bumper: Service and Repair




AR88.20-P-2200FB Remove/Install Rear Bumper

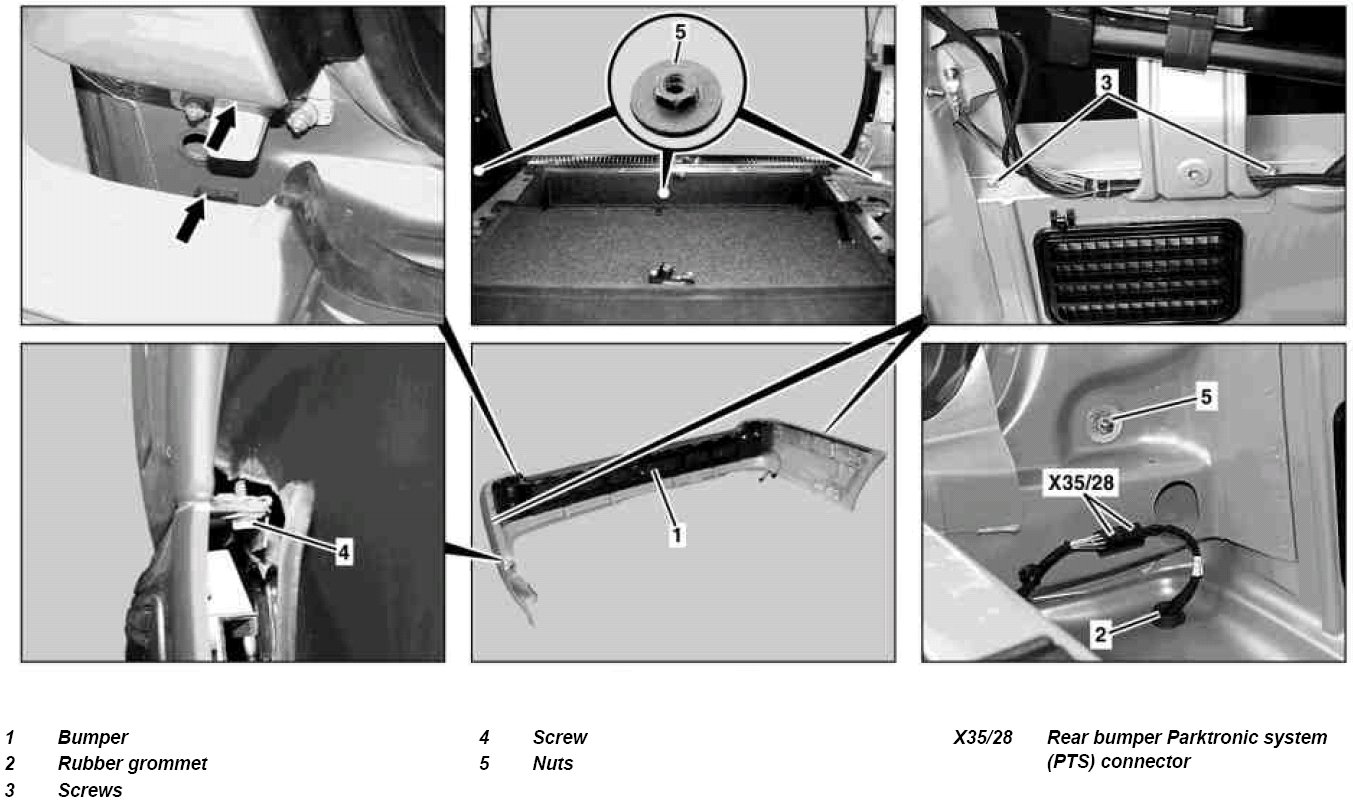

Component Identification:

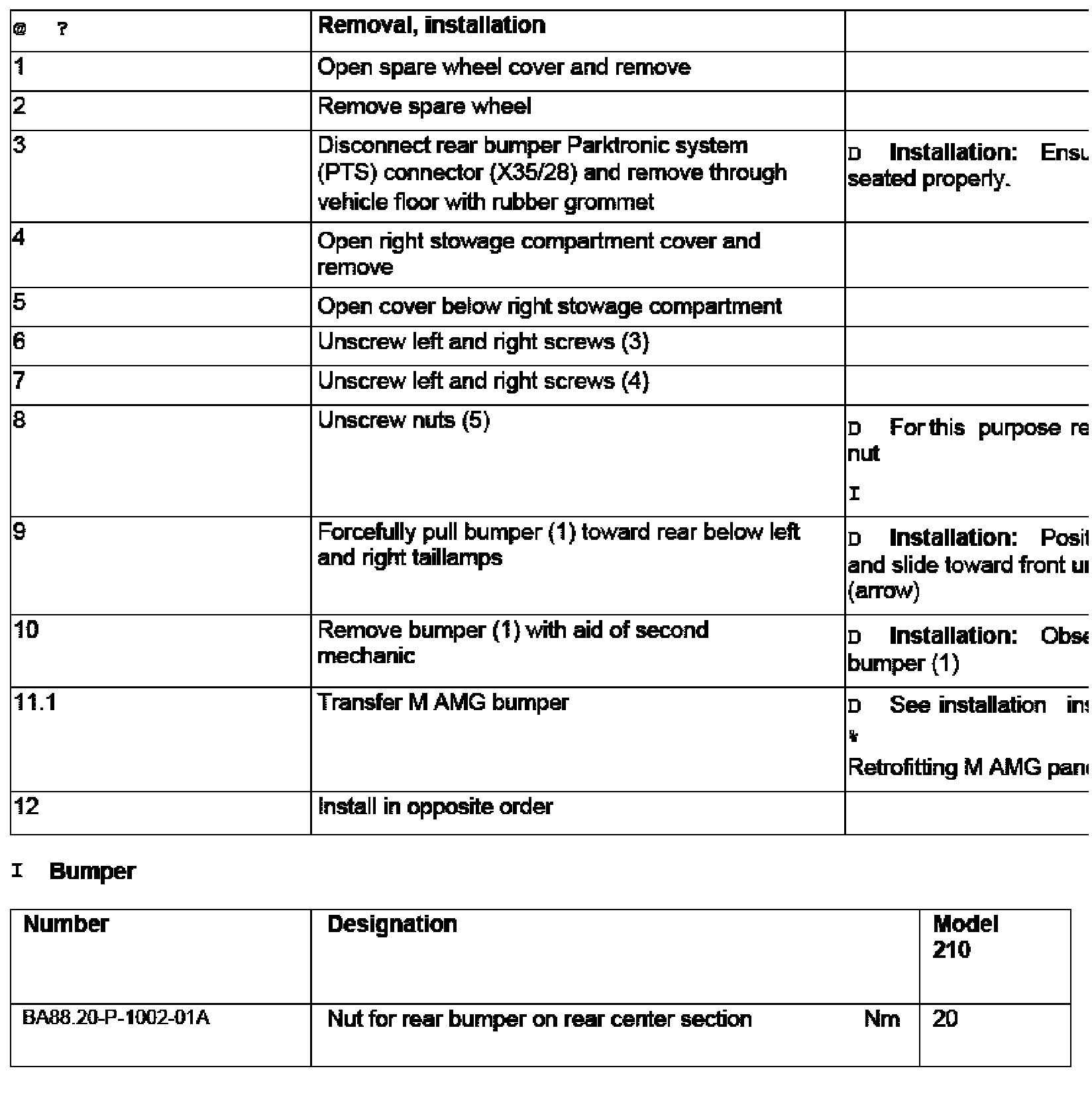

:f�DSteps 1 - 12:
