E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Cellular Phone
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Telephone (CTEL) PE82.70-U-2000EA
Cellular Telephone (CTEL) PE82.70-U-2000EA

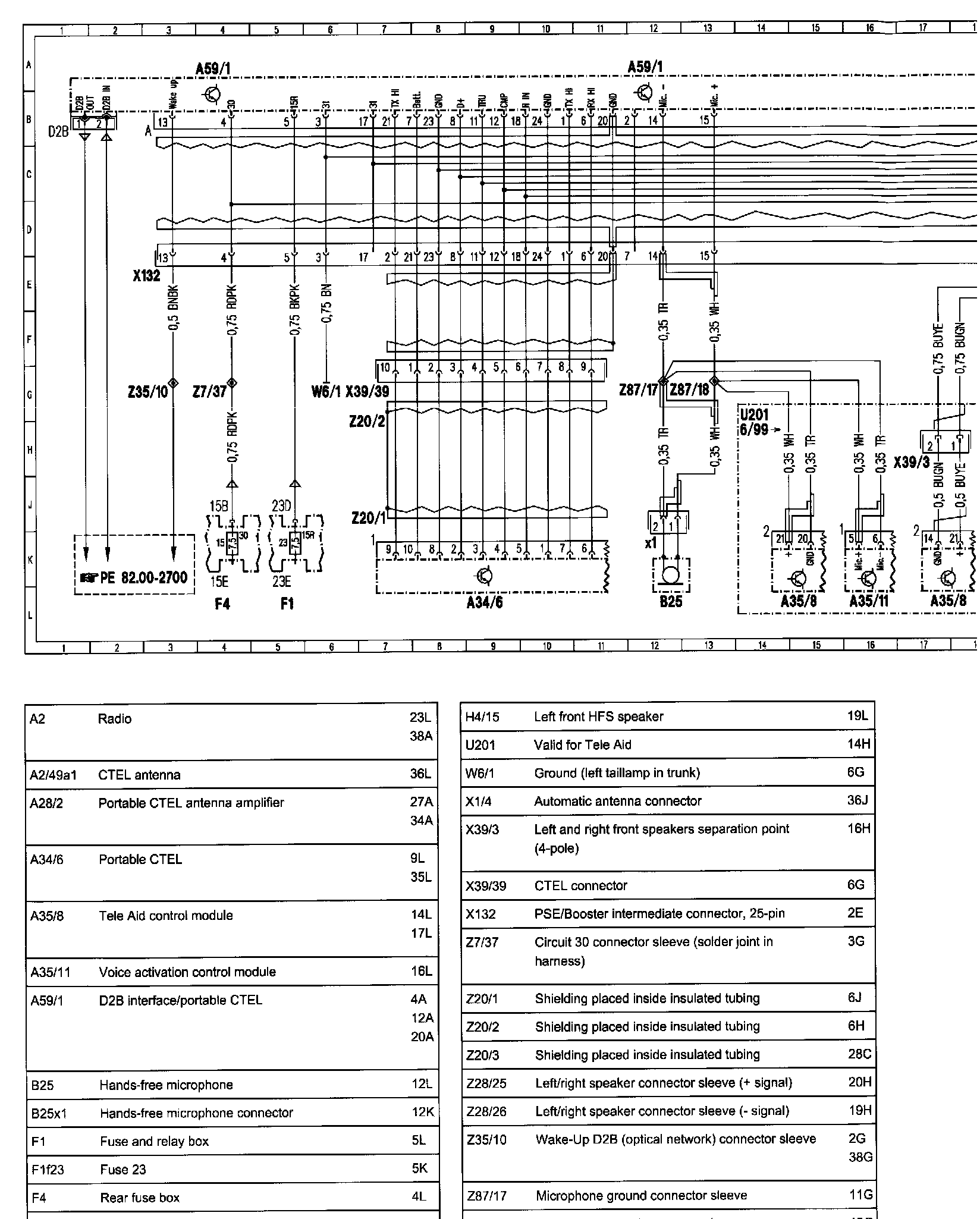

���>��>] �>r �>:*�>Wiring Diagram:

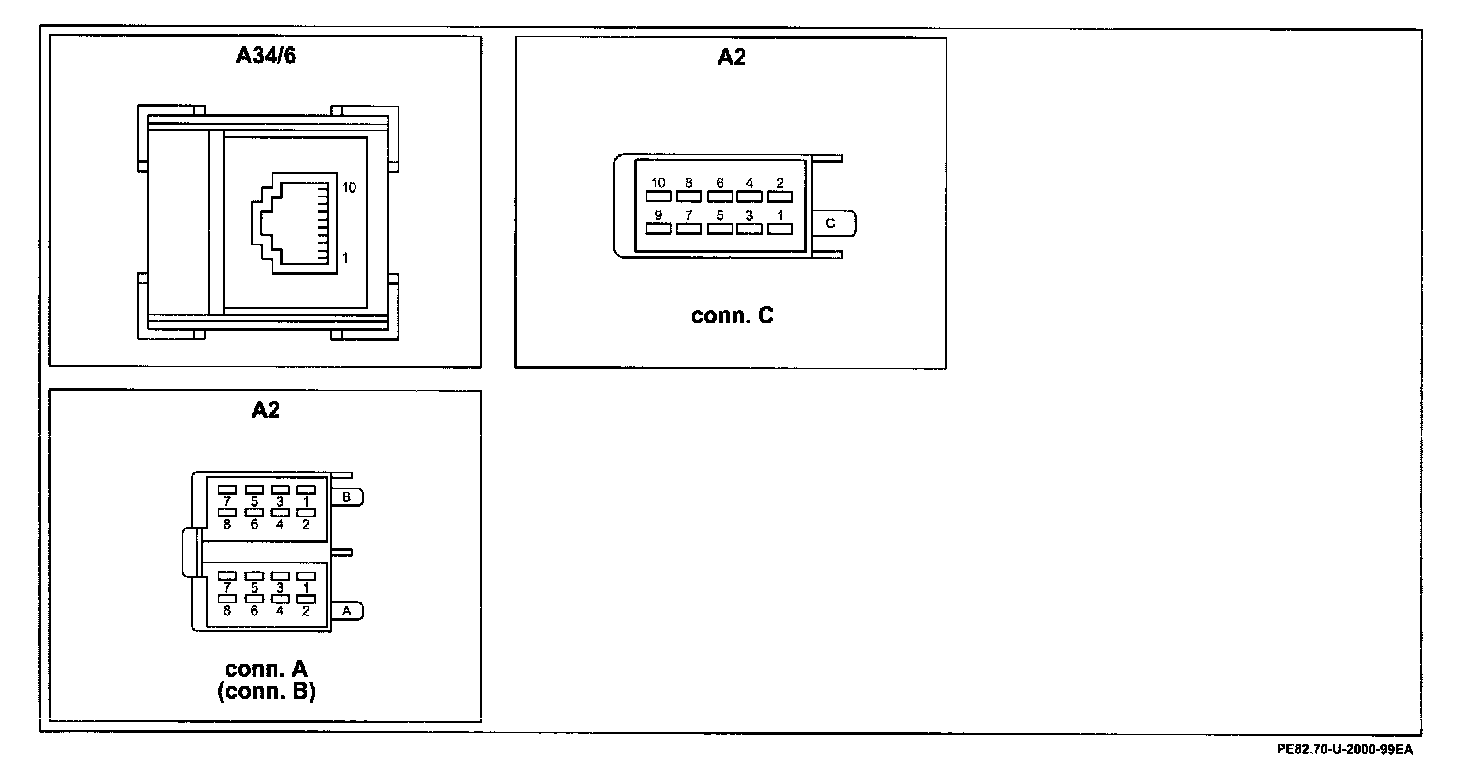

Connector Assignment:
