ME-SFI Fuel Injection/Ignition System PE07.61-U-2000ME



ME-SFI Fuel Injection & Ignition System
- Engine Compartment/Frame Floor Harness

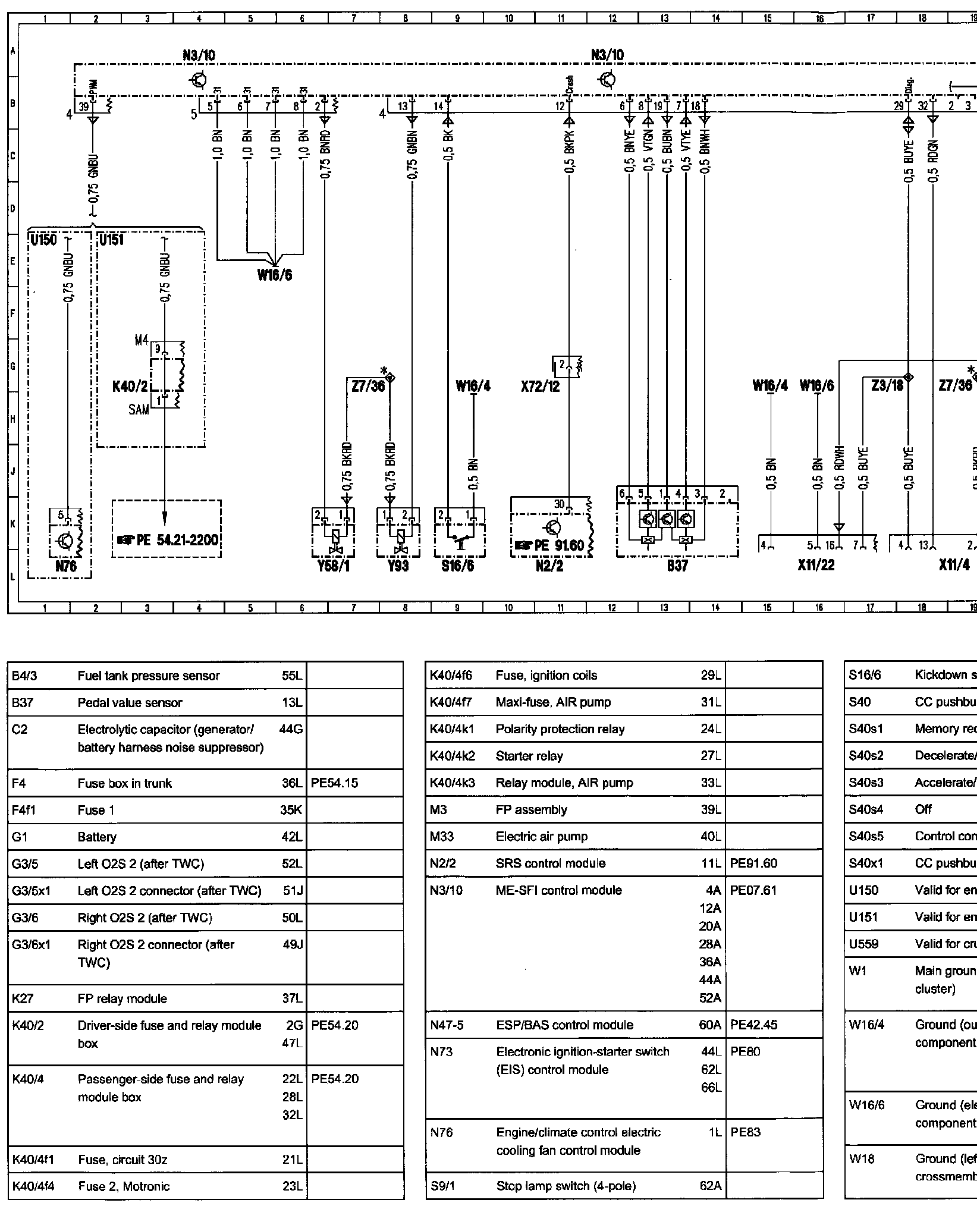

�� !�b !(� !ME-SFI Fuel Injection And Ignition System:

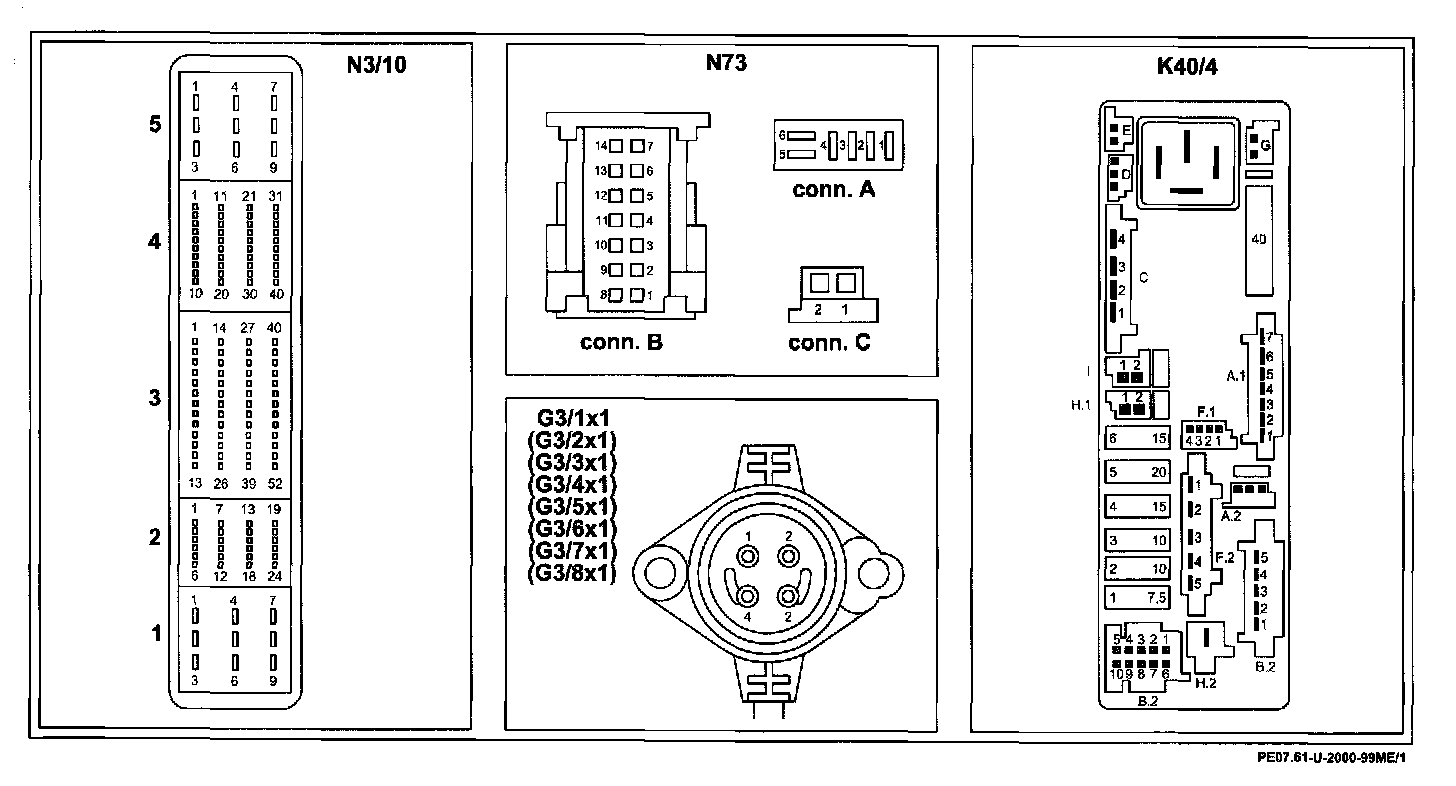

Connector Assignment:






Connector Assignment:






Pin Information, Part 1:






Pin Information, Part 2:
