Trunk / Liftgate Latch: Service and Repair



AR88.50-P-5020K Removing, Installing And Adjusting Trunk Lid Lock And Striker Eye

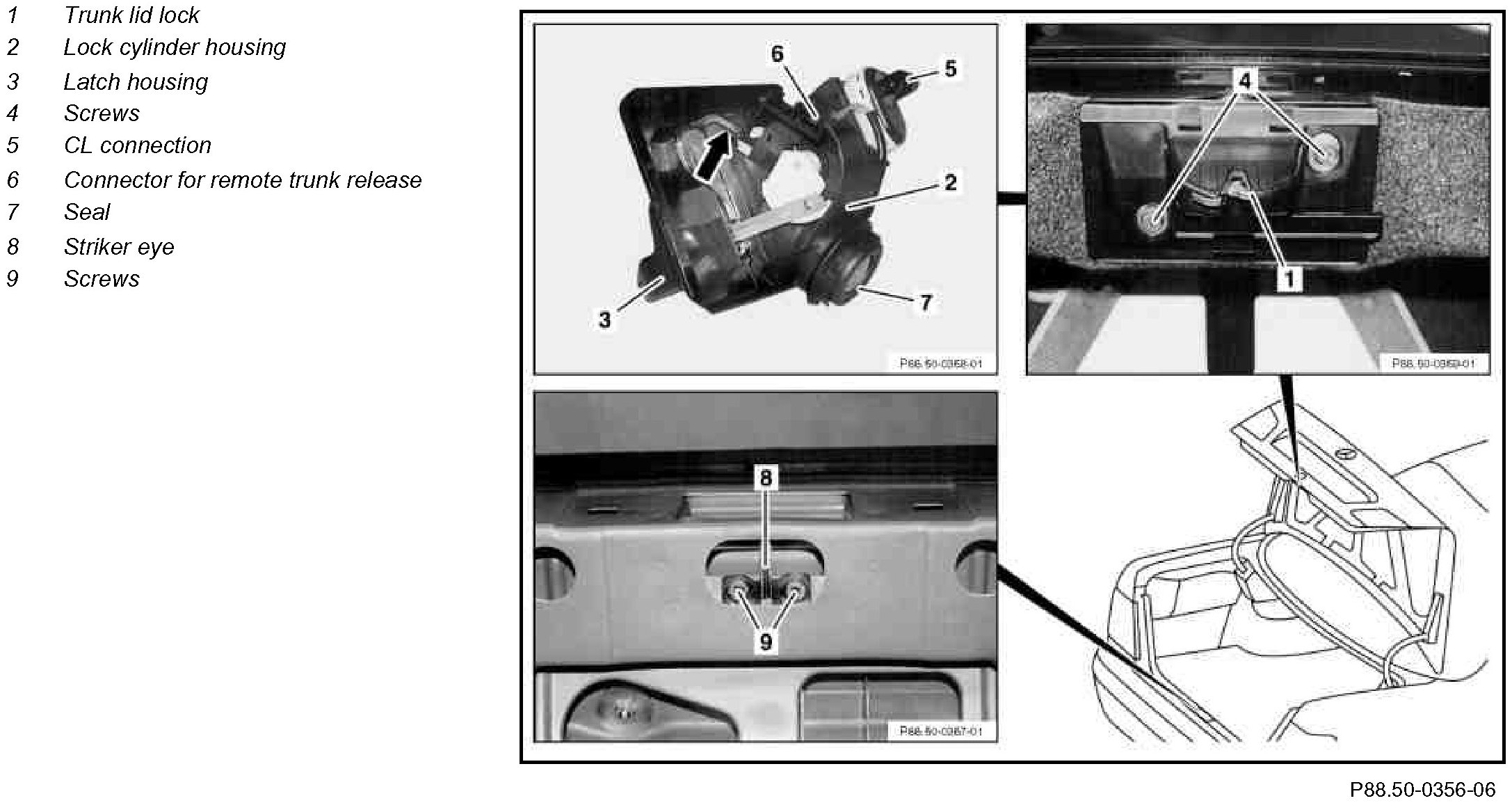

Component Identification:

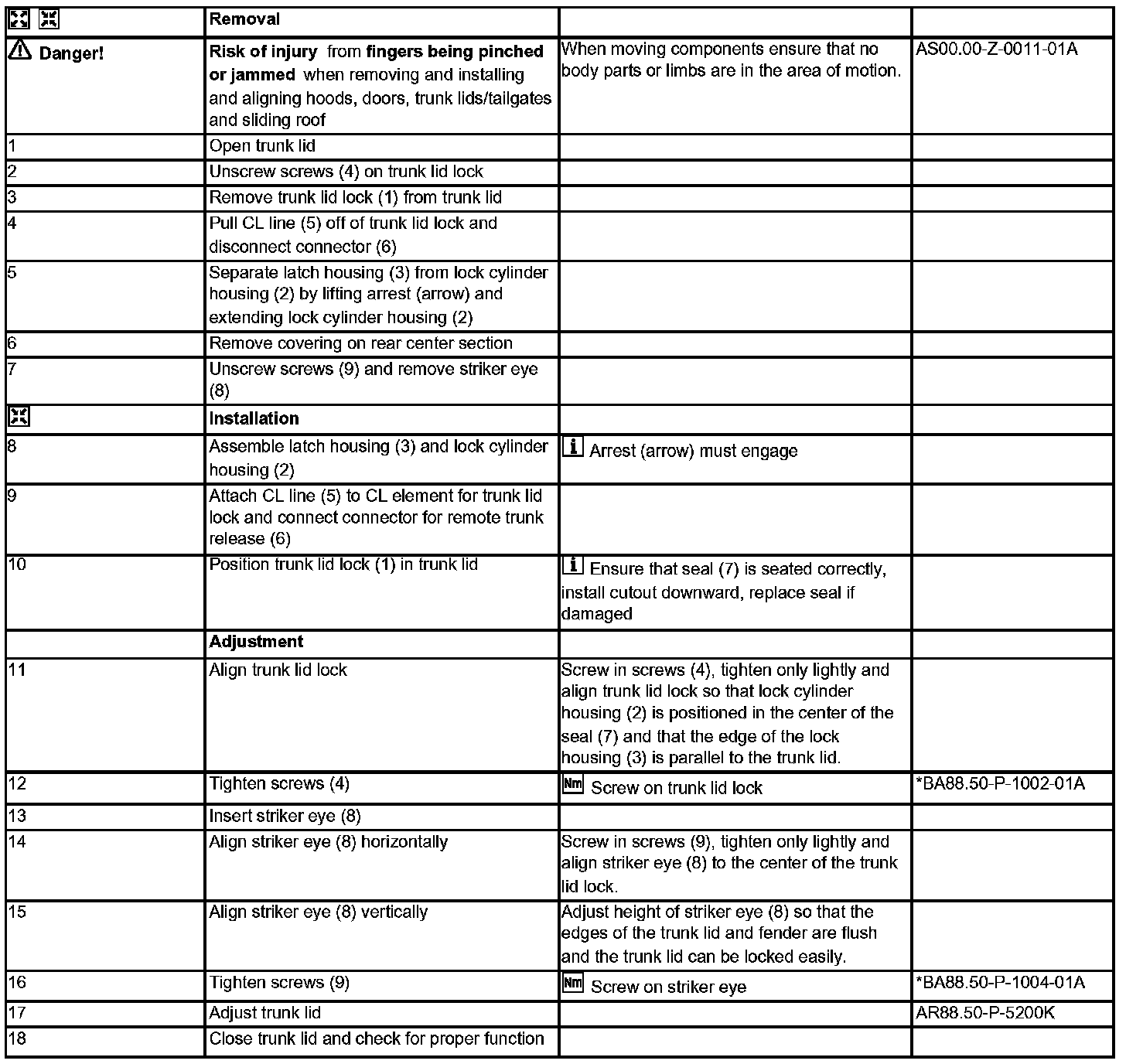

Steps 1 - 18:

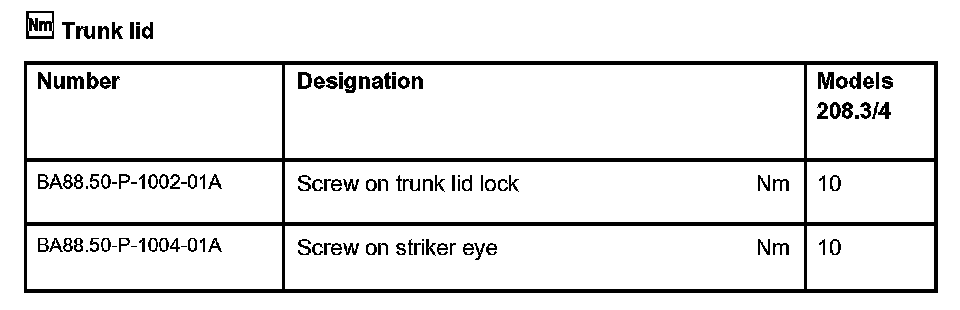

Trunk Lid:

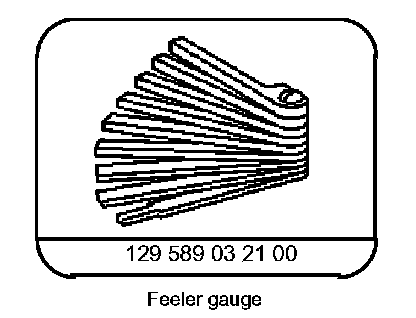

Special Tools:
