CD Changer (CDC) PE82.64-U-2000MD
CD Changer (CDC) PE82.64-U-2000MD
CD changer
- with CODE (819) 6-disk CD changer in trunk

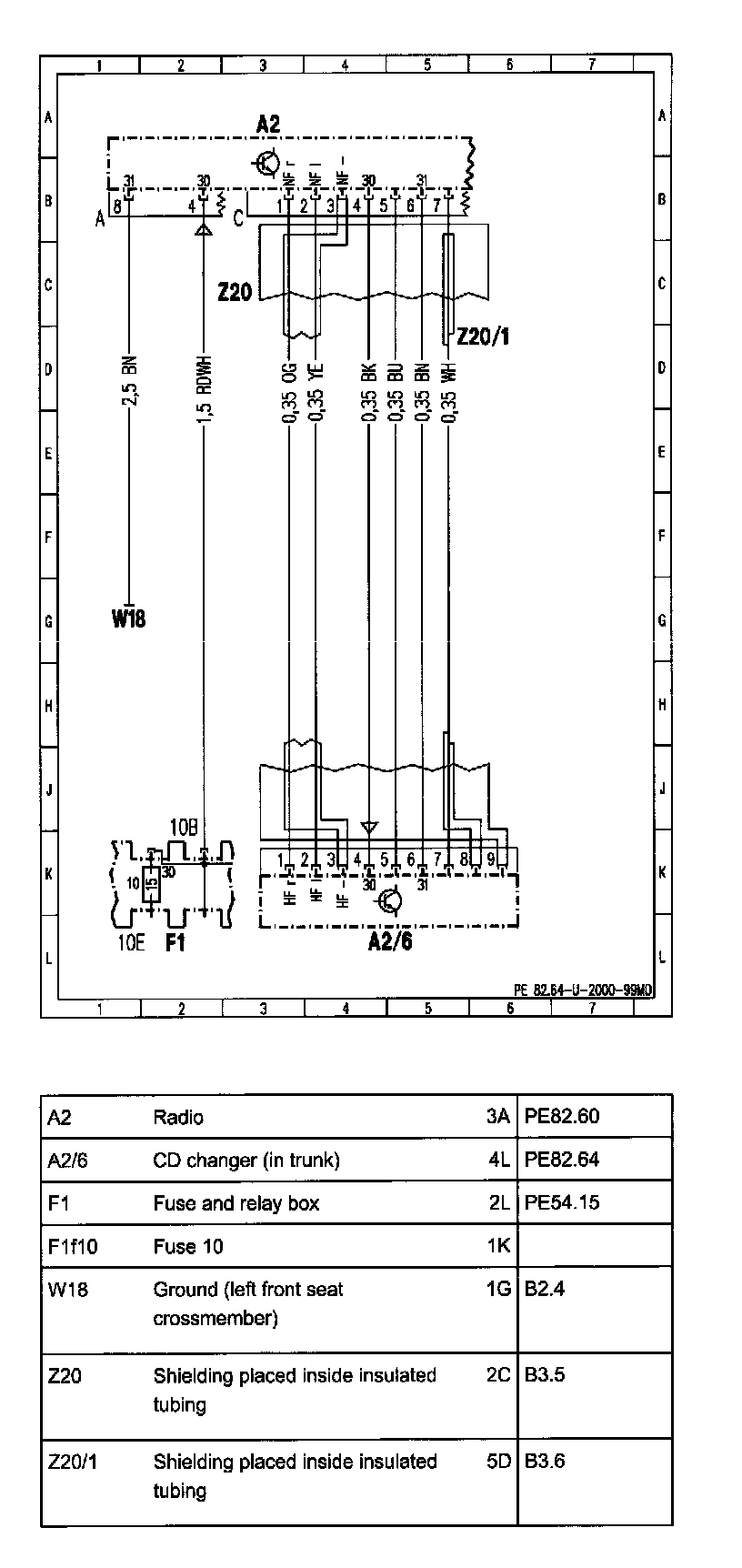

CD Changer, PE82.64-U-2000MD:
Connector Assignment:
Pin Information:
