Window Frame: Service and Repair
AR67.30-P-4010PB Removing And Installing Rear Side Window Molding

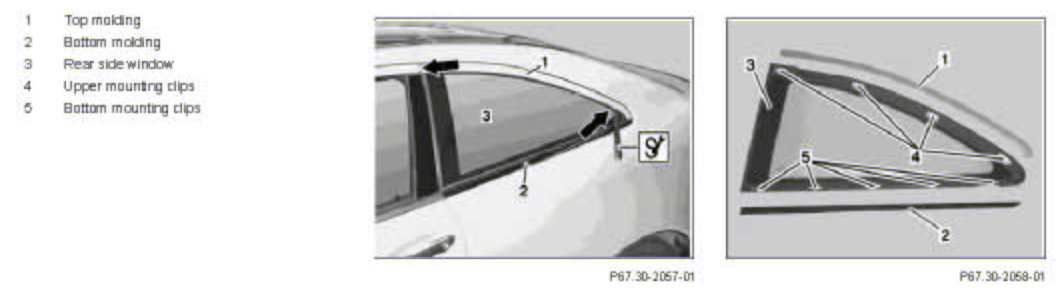

Component Identification:

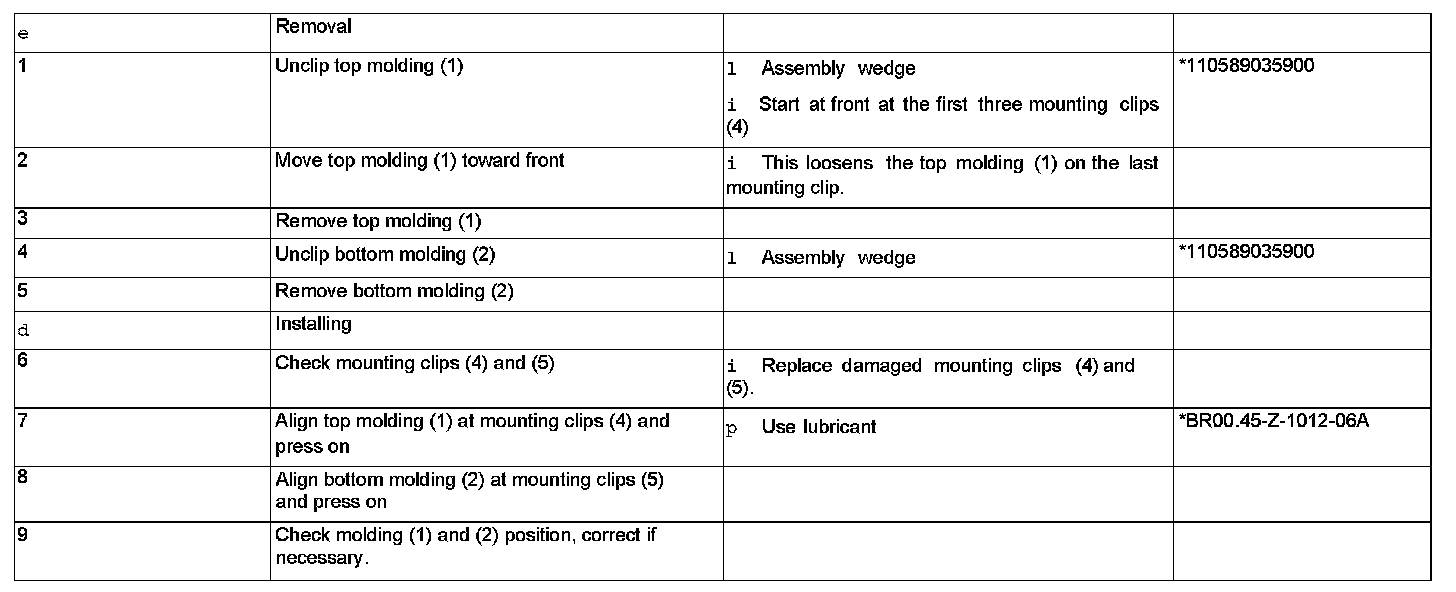

Steps 1 - 9:
Special Tools:
Repair Products:
