Ignition Lock: Service and Repair

AR46.10-P-0810P Electronic ignition/starter switch (EZS) removal and installation

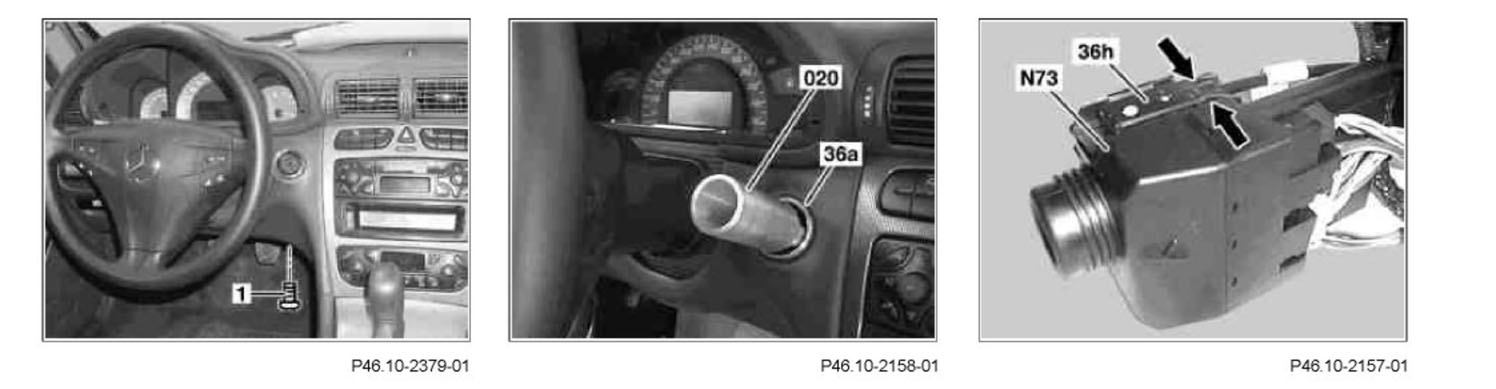

Component Identification:

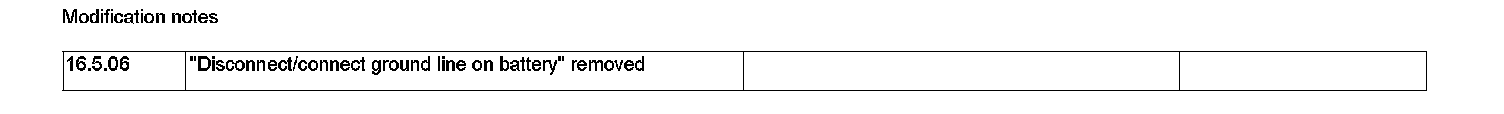

Modification notes:

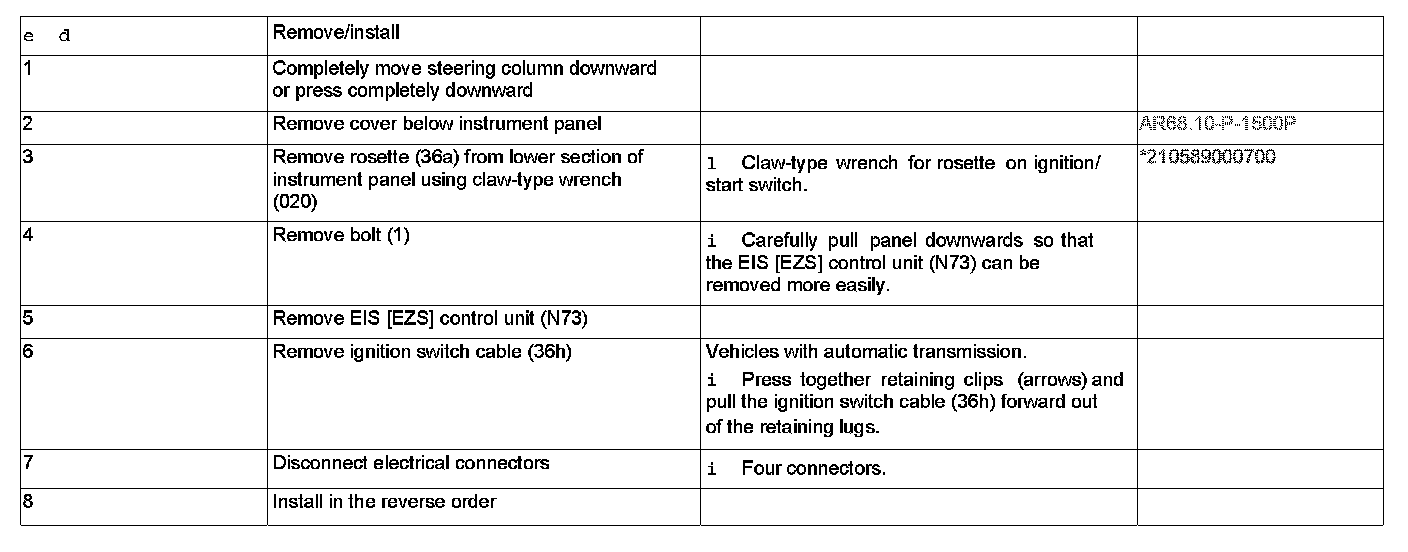

Steps 1-8:

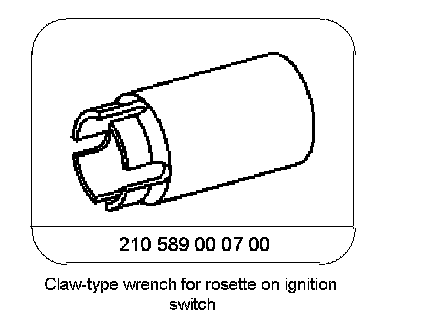

Special Tools:
