C 230 Kompressor (203.747) L4-2.3L SC (111.981)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Testing and Inspection
>>
AR54.10-P-1129P Check Condition of Battery
AR54.10-P-1129P Check Condition of Battery
AR54.10-P-1129P Check Condition Of Battery

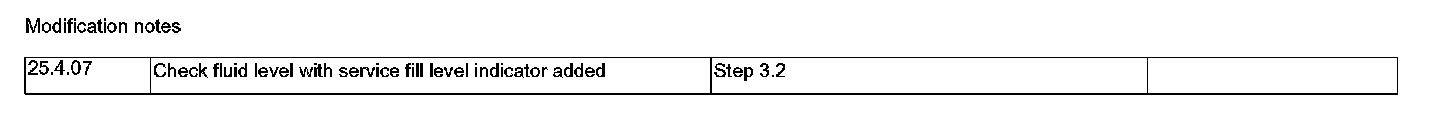

Modification Notes:

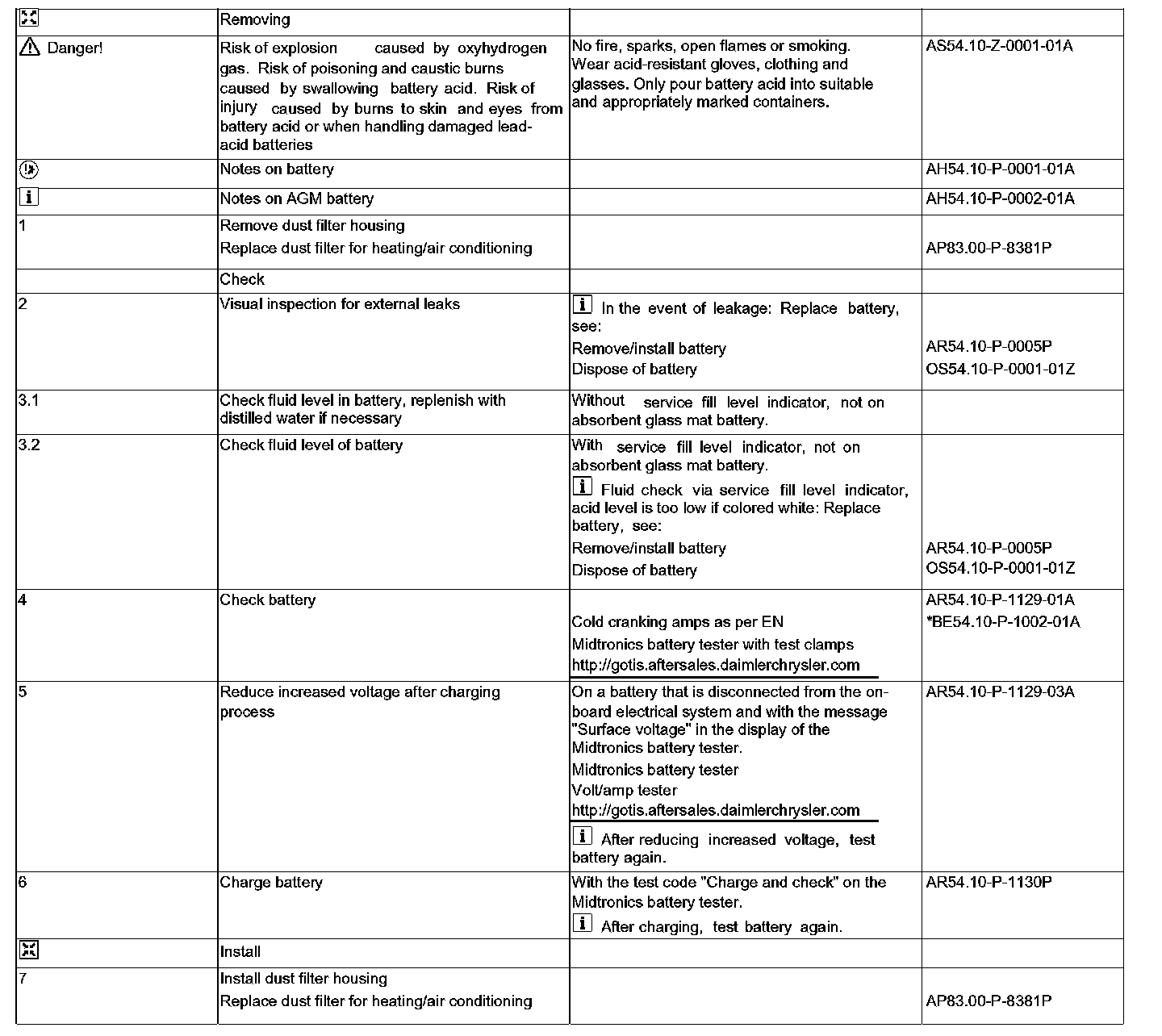

Steps 1 - 7:

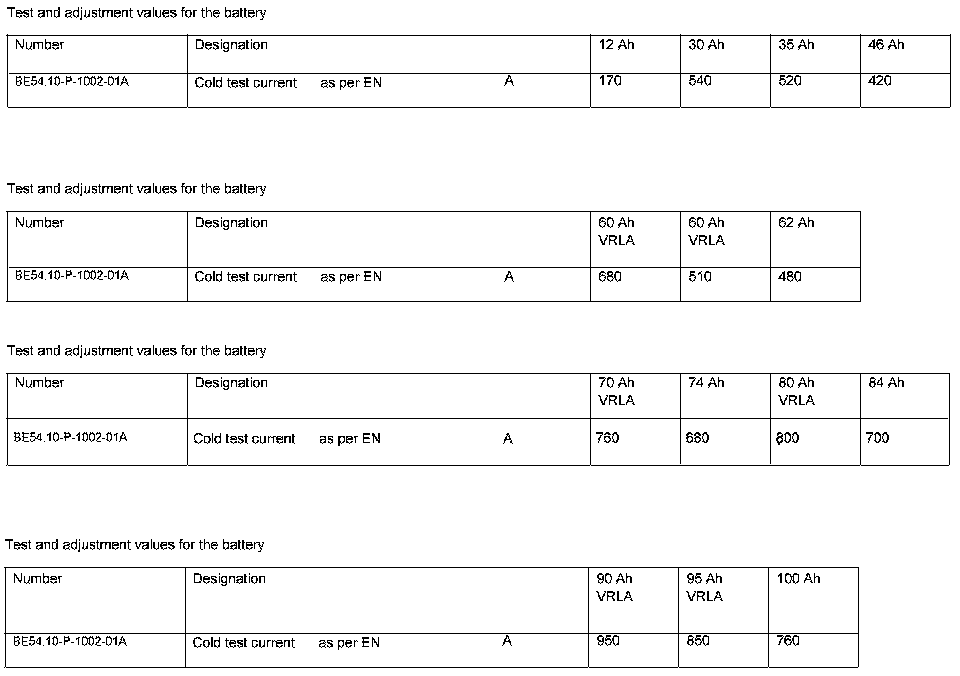

Test And Adjustment Values For The Battery:
