AR54.10-P-1030P Checking Quiescent Current Consumption
AR54.10-P-1030P Checking Quiescent Current Consumption
AR54.10-P-1030P Checking Quiescent Current Consumption

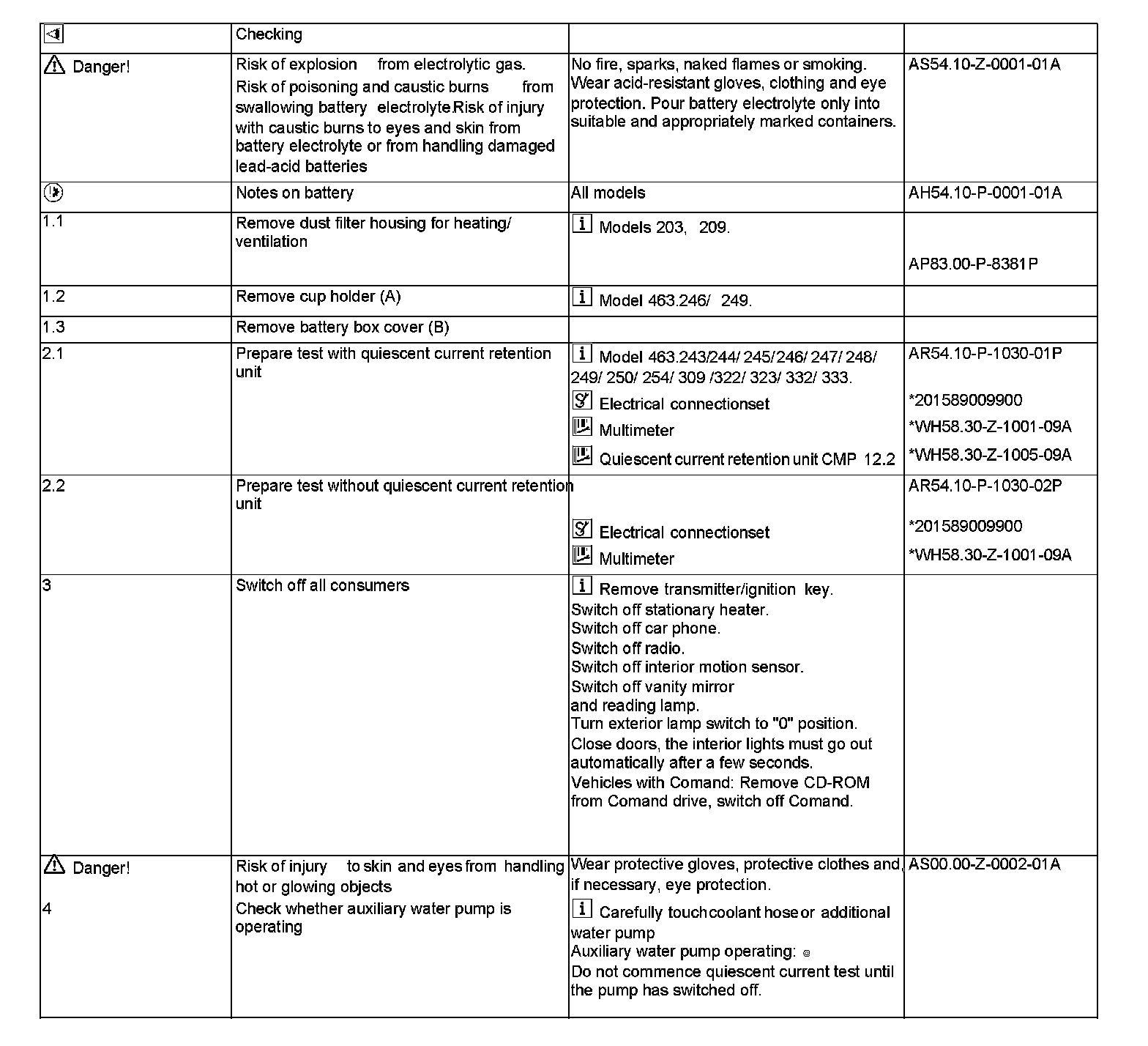

Part 1:

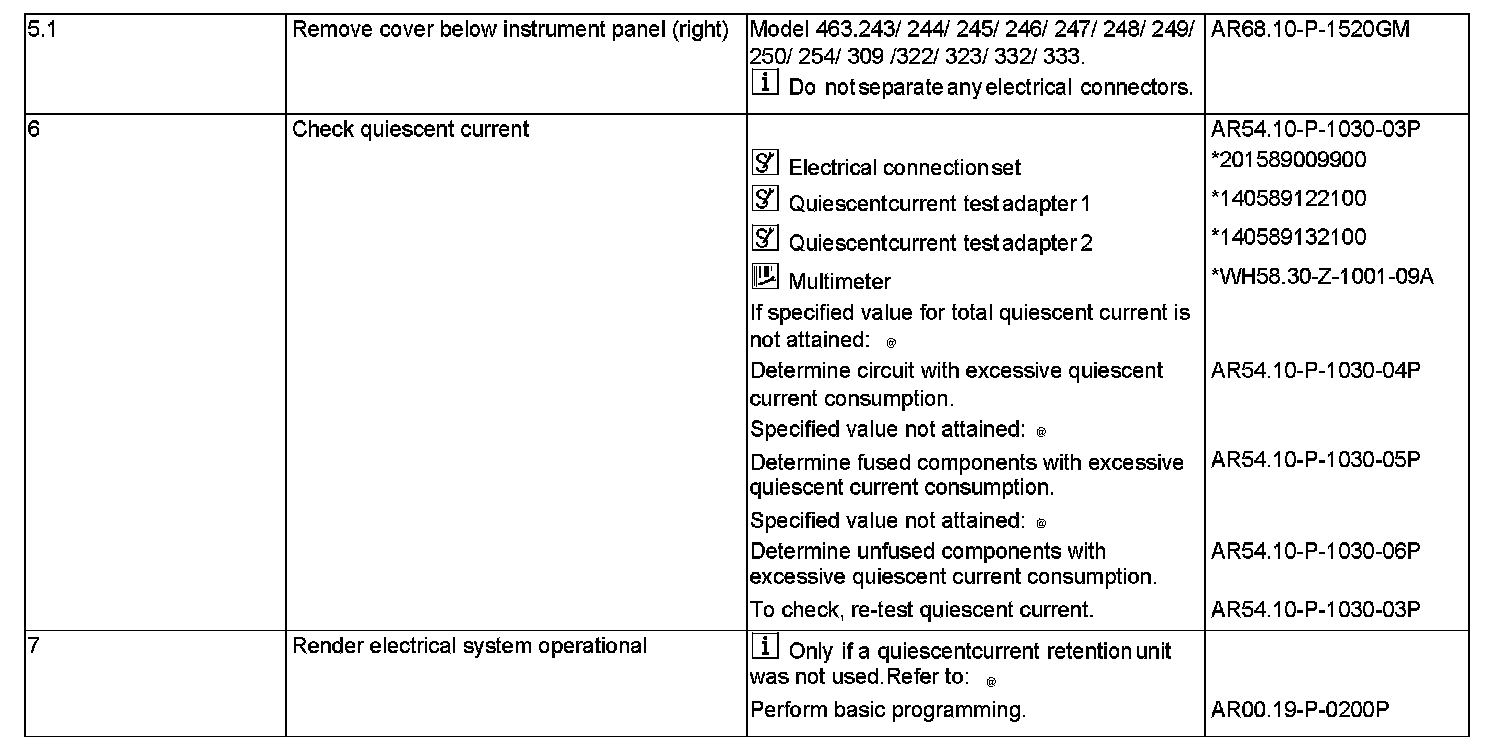

Part 2:
