Automatic Transmission

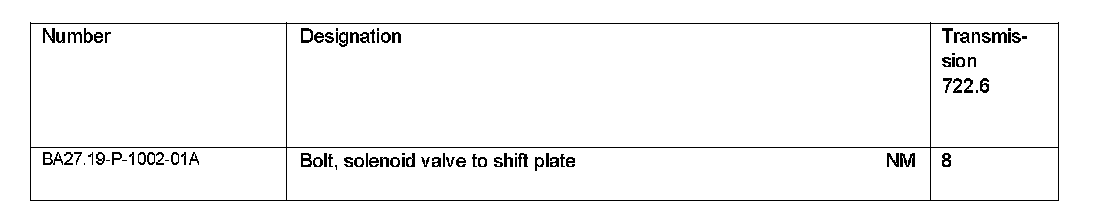

Electro Hydraulic Control Module:

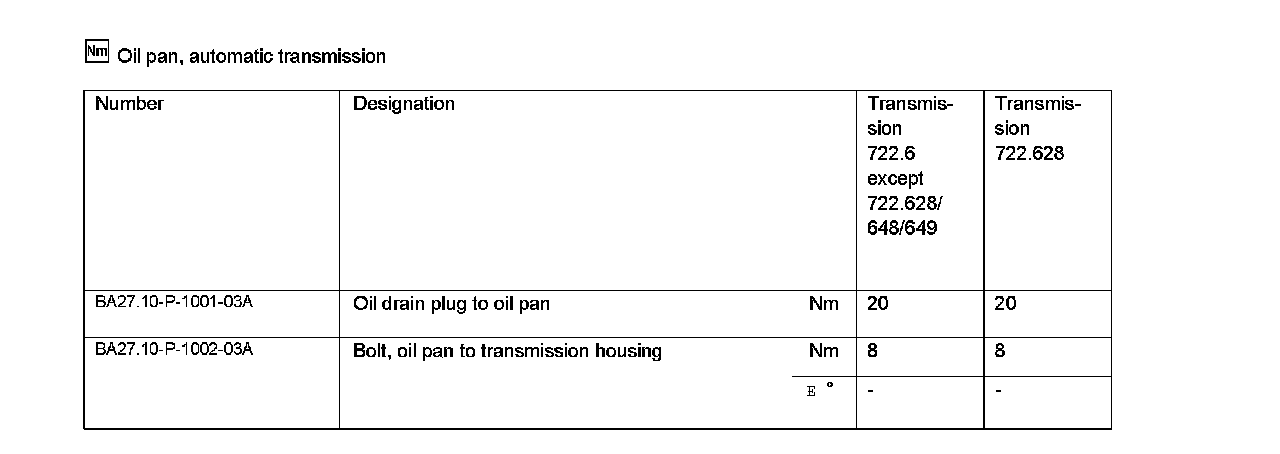

Oil Pan, Automatic Transmission:

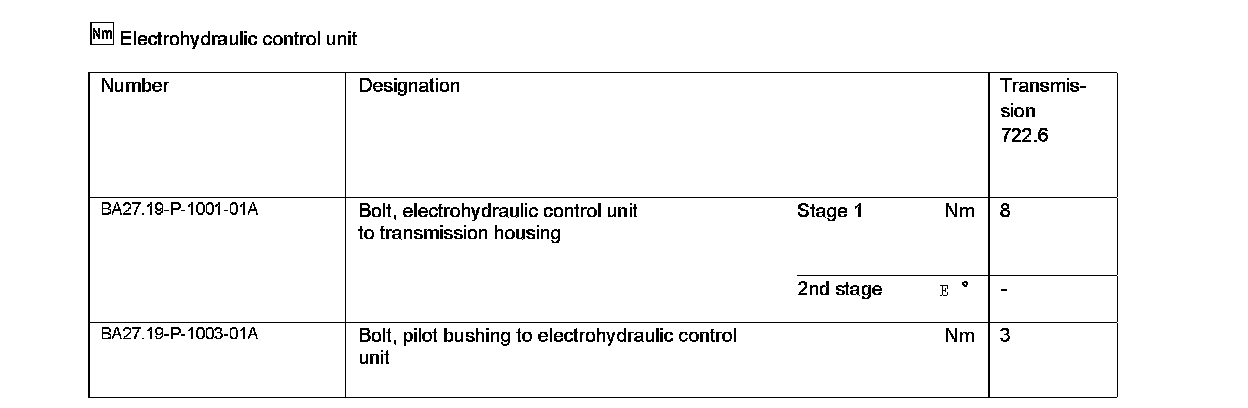

Electohydraulic Control Unit:

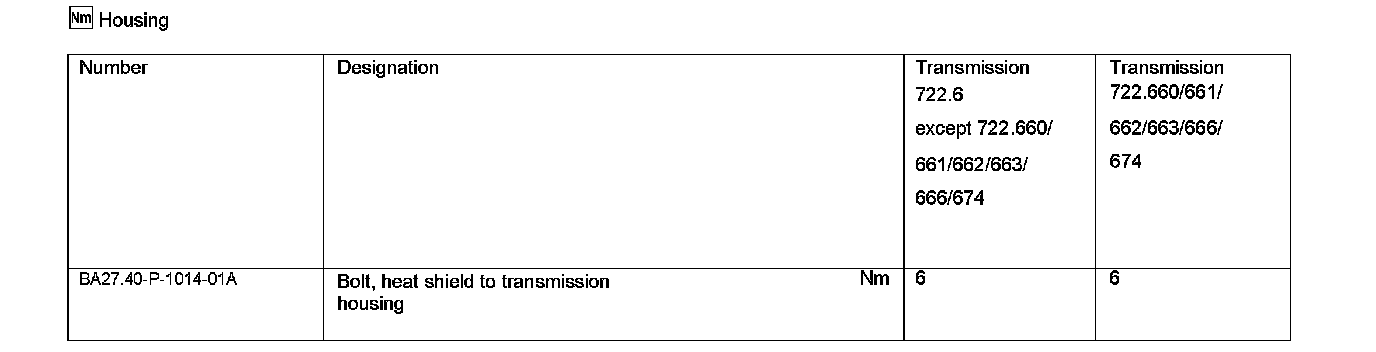

Housing:
