Home >> Mercedes Benz >> 2002 >> C 230 Kompressor (203.747) L4-2.3L SC (111.981) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Service and Repair

Impact Sensor: Service and Repair

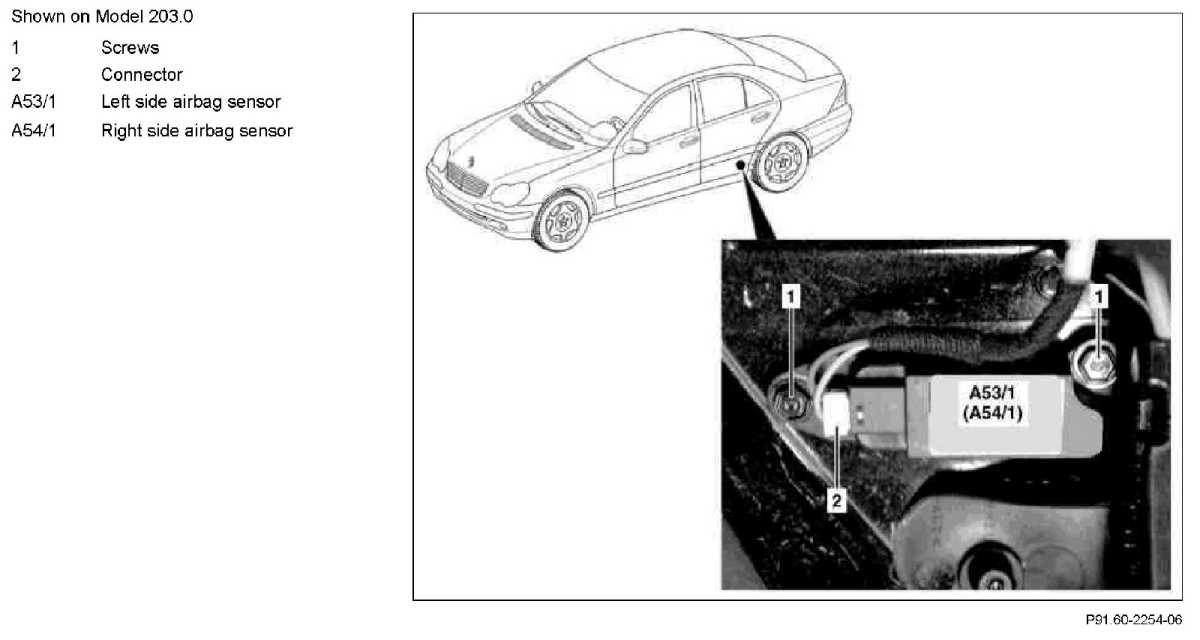

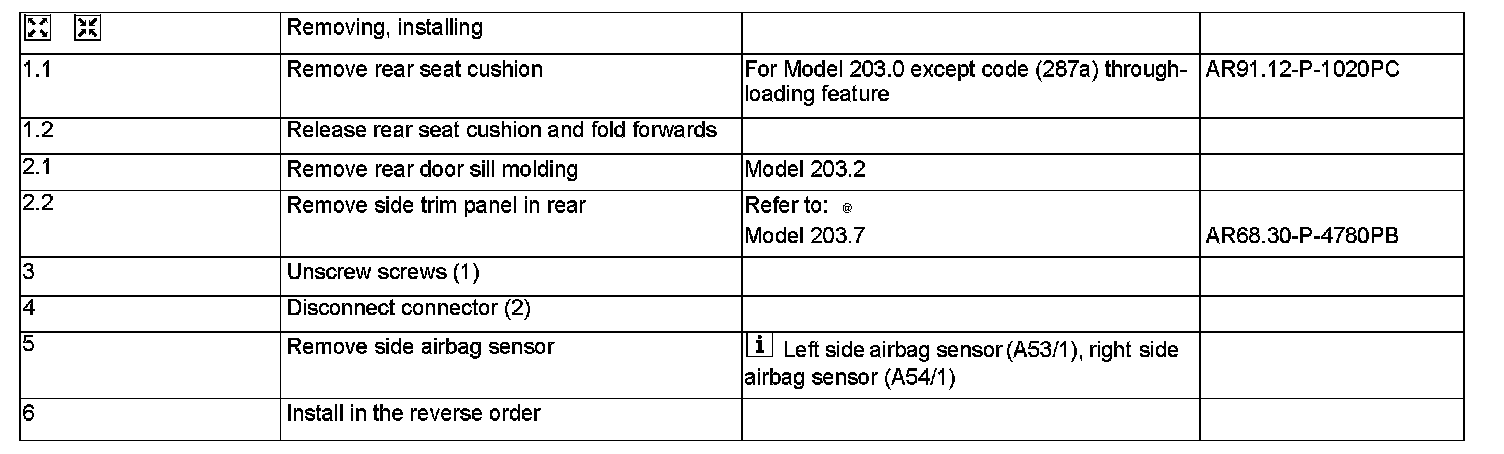

AR91.60-P-0710P Remove/Install Side Airbag Sensor
