Home >> Mercedes Benz >> 2002 >> C 230 Kompressor (203.747) L4-2.3L SC (111.981) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Outside Temperature Display Sensor >> Service and Repair

Outside Temperature Display Sensor: Service and Repair

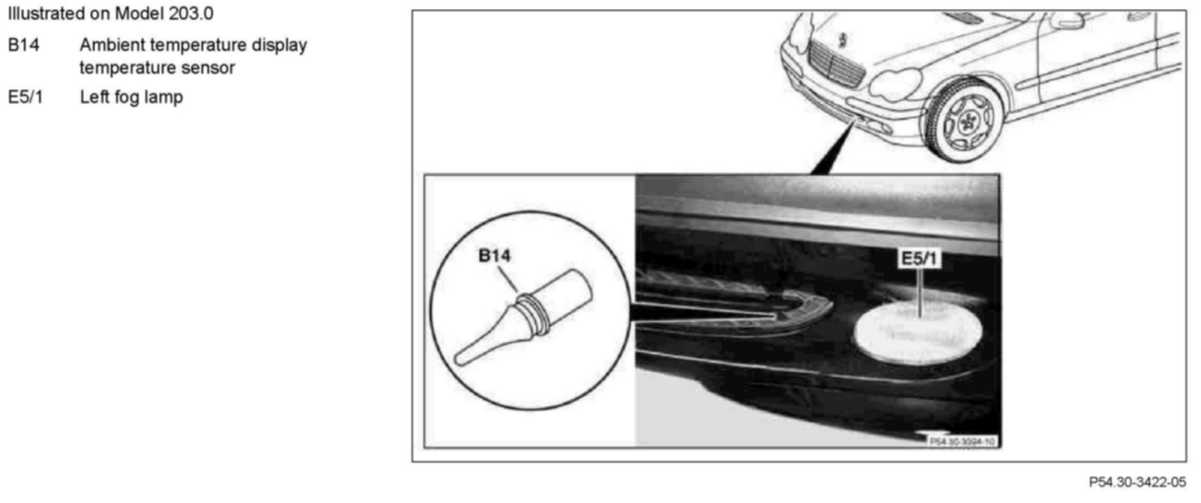

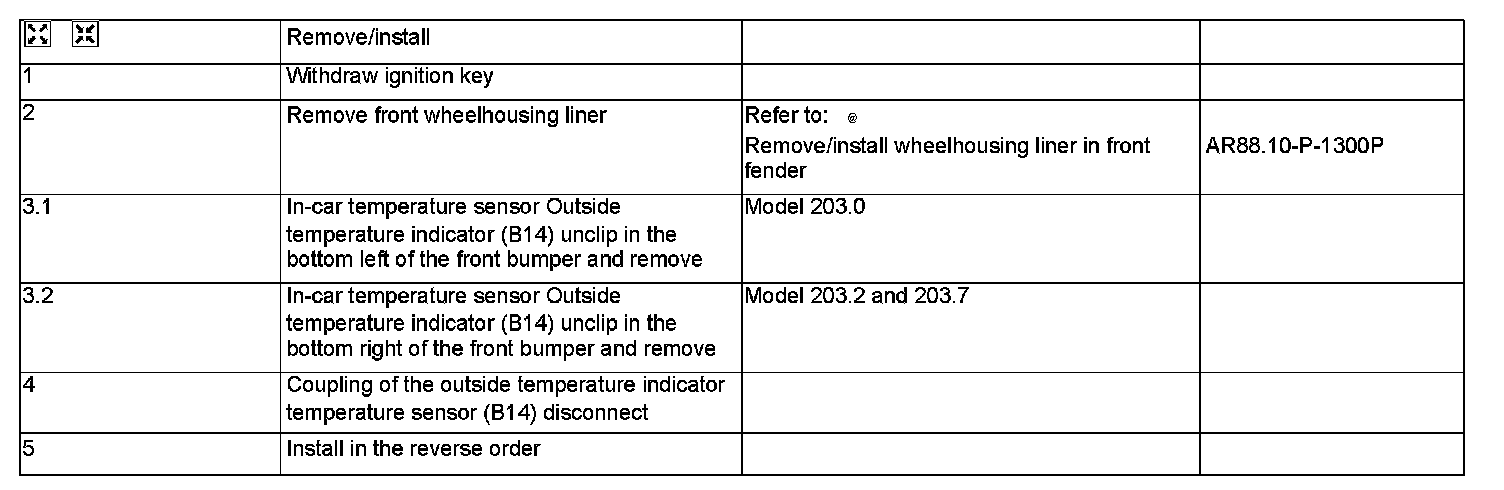

AR54.30-P-6341P Remove/Install Outside Temperature Indicator Sensor
