AR46.10-P-0300P Remove/install steering angle sensor
AR46.10-P-0300P Remove/install steering angle sensor
AR46.10-P-0300P Remove/install
steering angle sensor

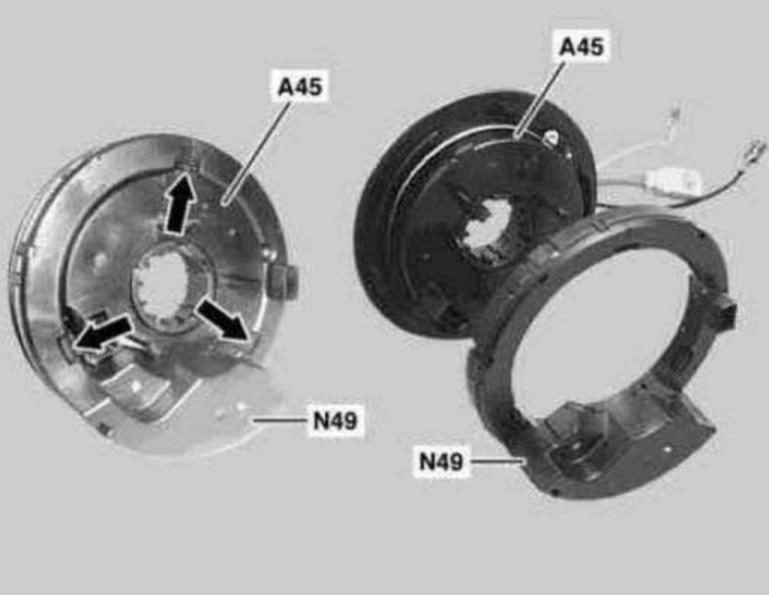

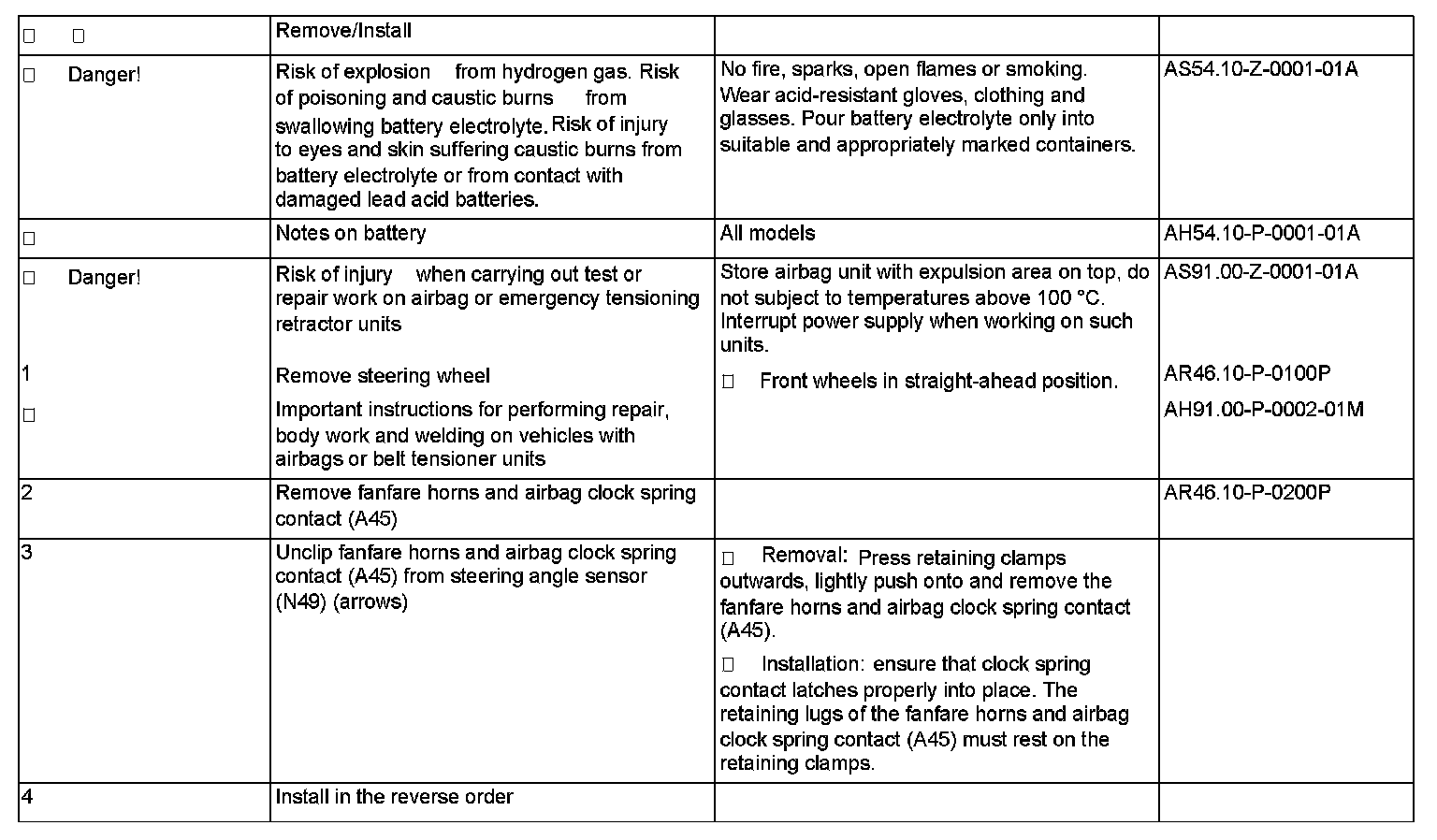

Steps 1-4:
