Electrical Diagrams

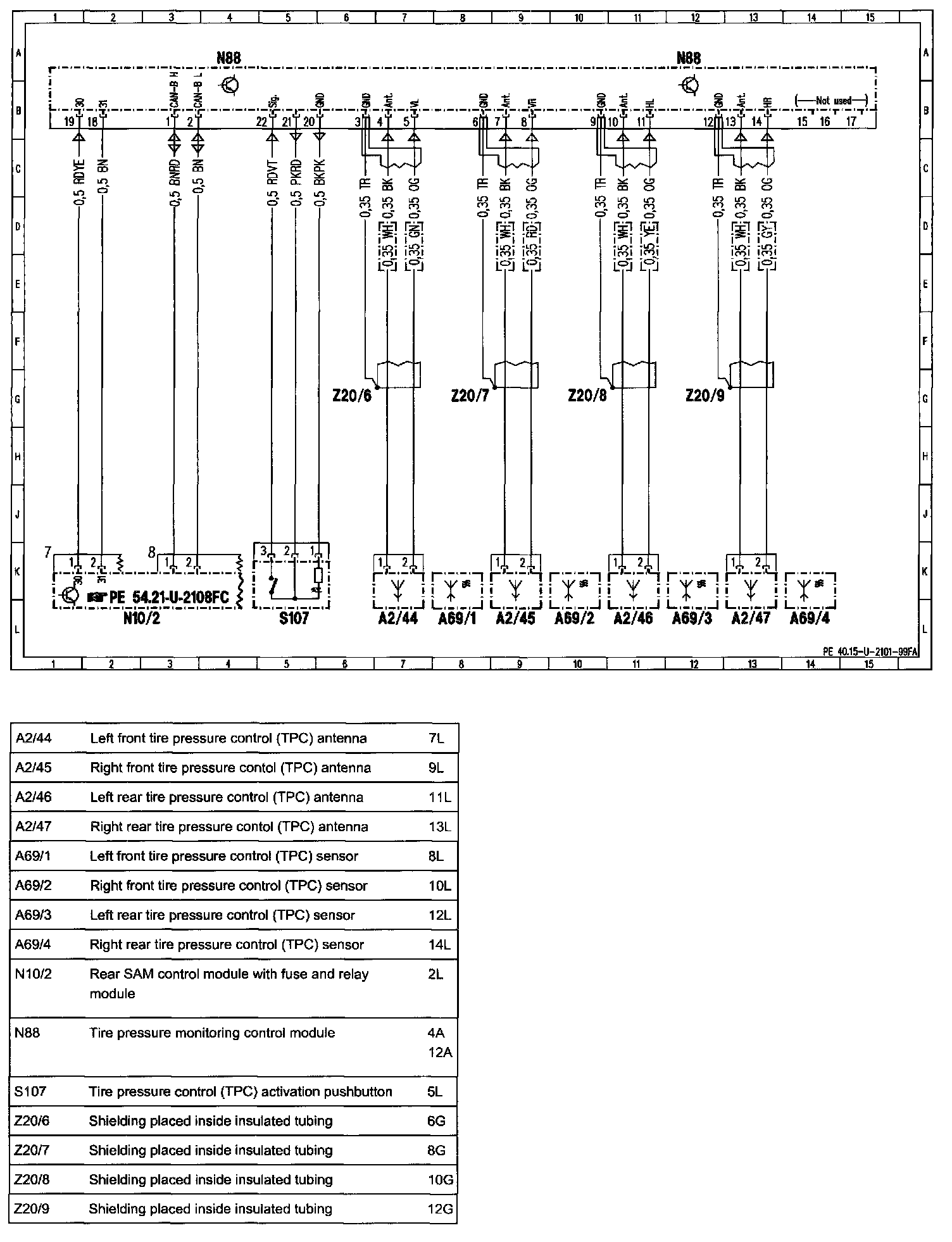

Tire Pressure Control Unit PE40.15-U-2101FA


Wiring Diagram PE40.15-U-2101FA:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
