AR82.10-P-4632P Remove/Install Xenon Headlamp Control Unit



AR82.10-P-4632P Remove/install Xenon Headlamp Control Unit
- with CODE (614) Bi-xenon headlamp unit

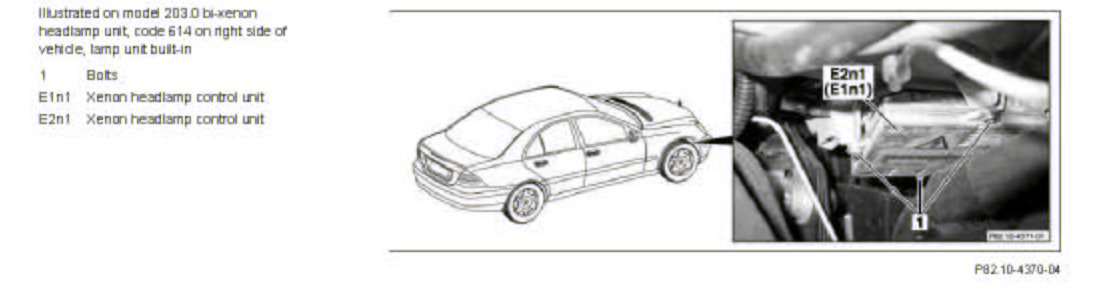

Component Identification:

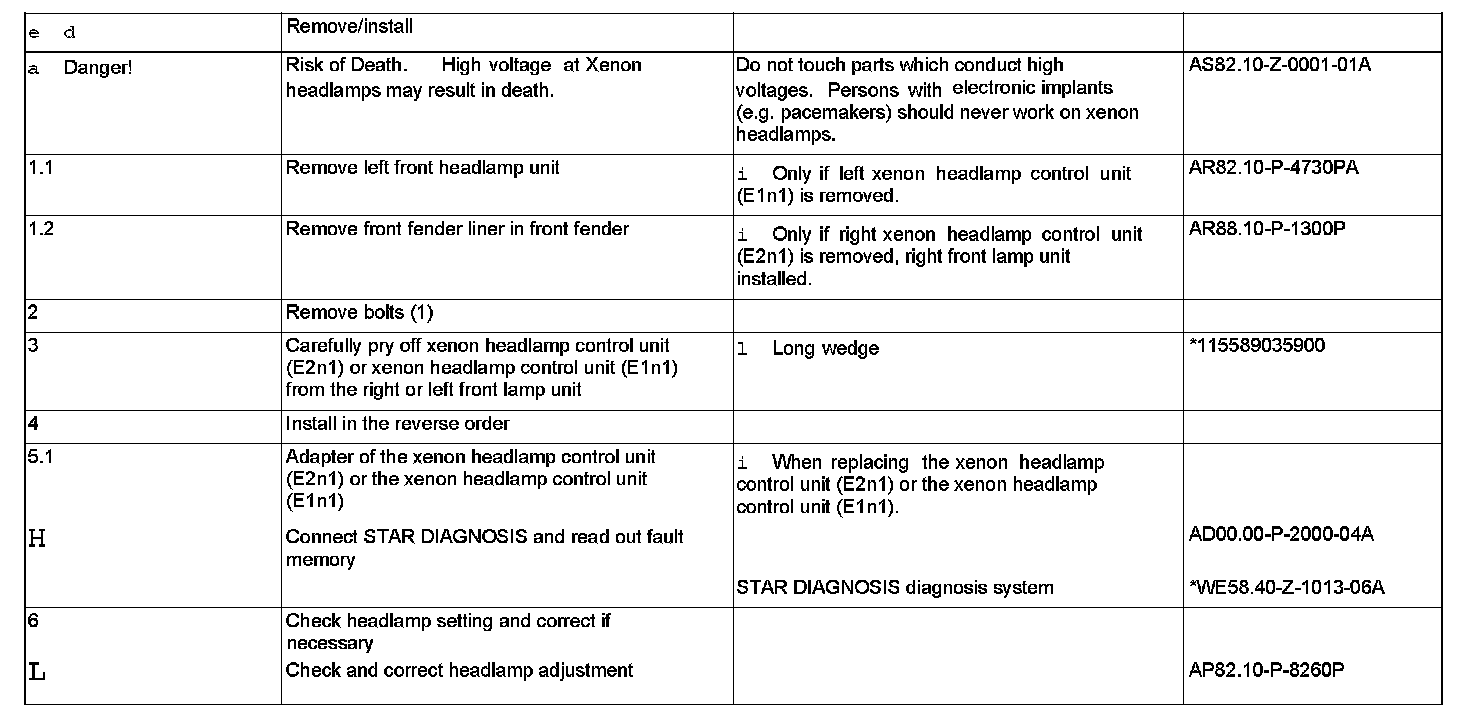

Steps 1.1 - 6:

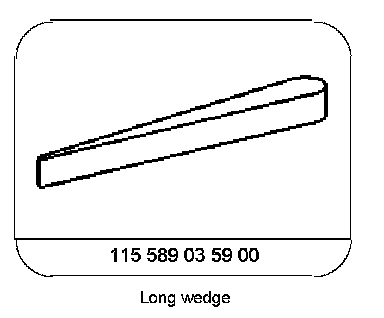

Special Tools:

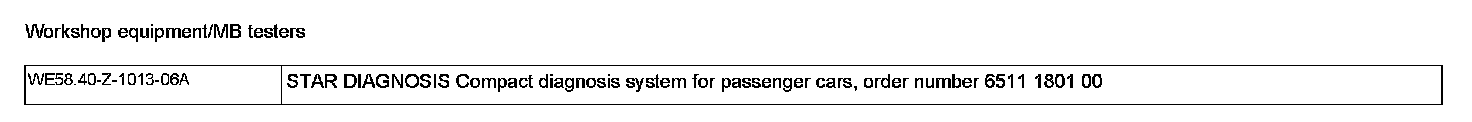

Workshop Equipment/MB Testers:
