ME-SFI Control Unit Design

ME-SFI Control Unit, Design

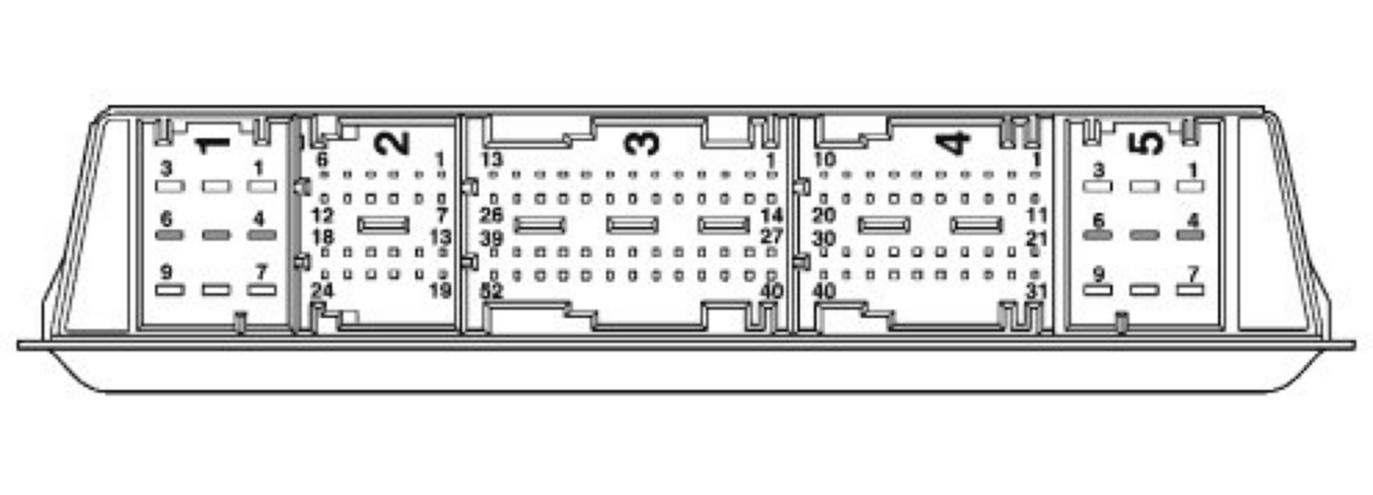

Arrangement of connectors ME-SFI control module with 5 connectors (1 - 5)
Connectors 1 and 3 at engine side
Connectors 4 and 5 at vehicle side
Connector 2 not equipped

Aluminium die-cast housing, not watertight. Installed in watertight control module box.
Certain control module boxes with blower.
