Home >> Mercedes Benz >> 2002 >> C 230 Kompressor (203.747) L4-2.3L SC (111.981) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Electrical Diagrams >> Digital Data Bus (D2B) PE82.00-U-2700FA

Digital Data Bus (D2B) PE82.00-U-2700FA




Digital Data Bus (D2B) PE82.00-U-2700FA

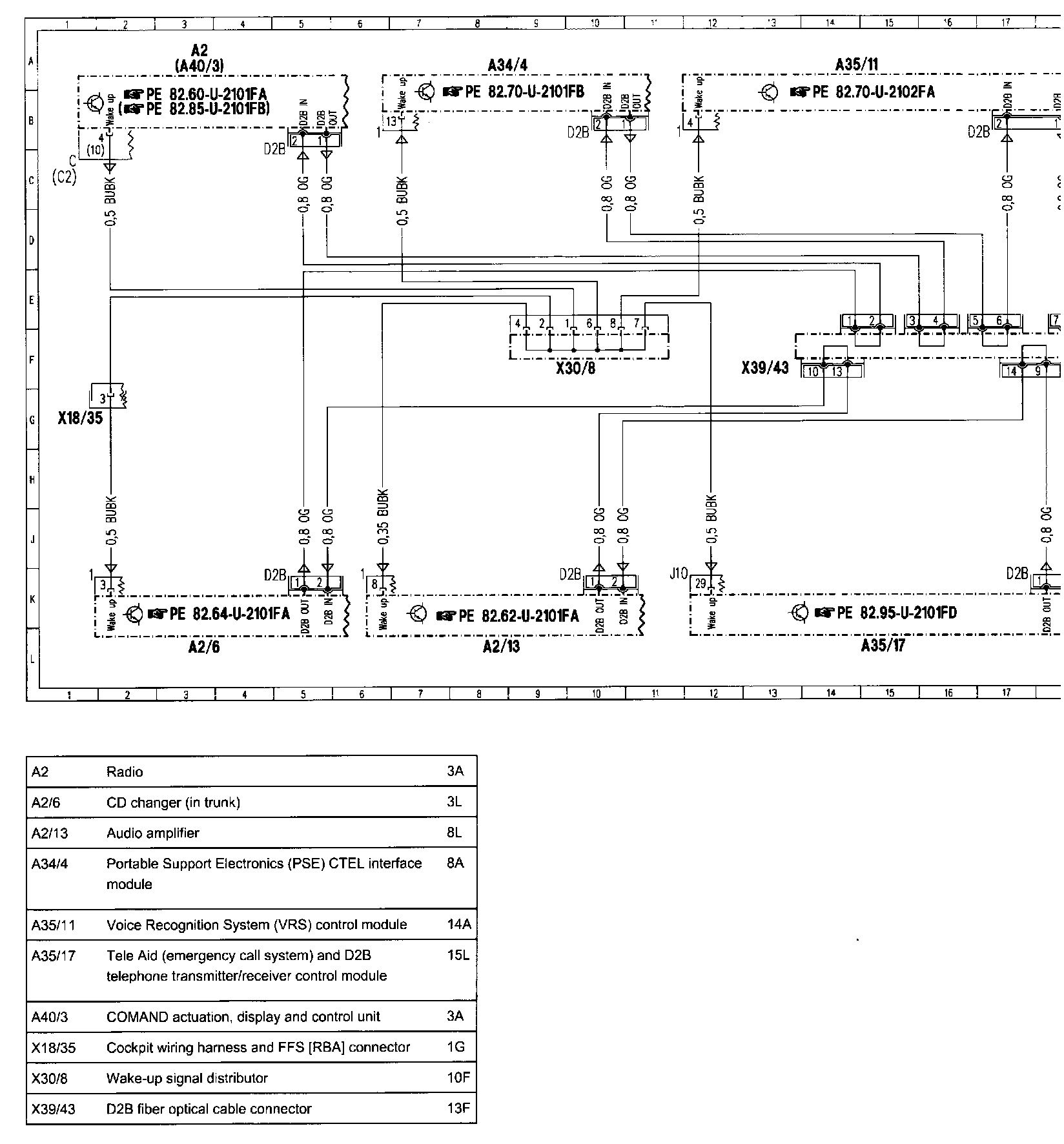

ё�Wiring Diagram PE82.00-U-2700FA:

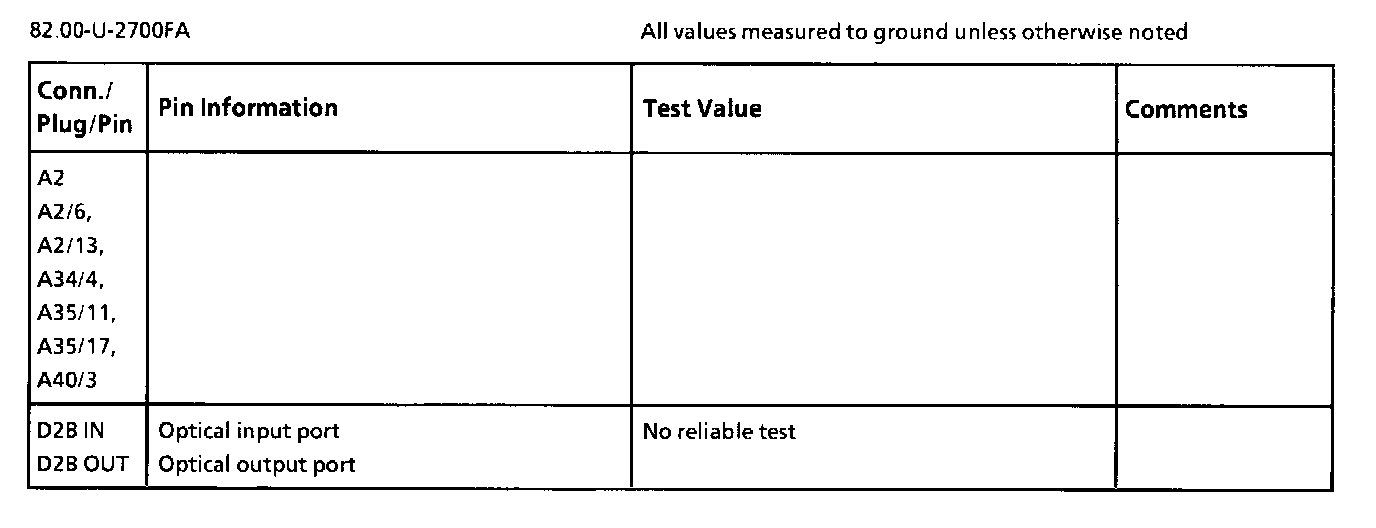

Pin Information:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
